Description

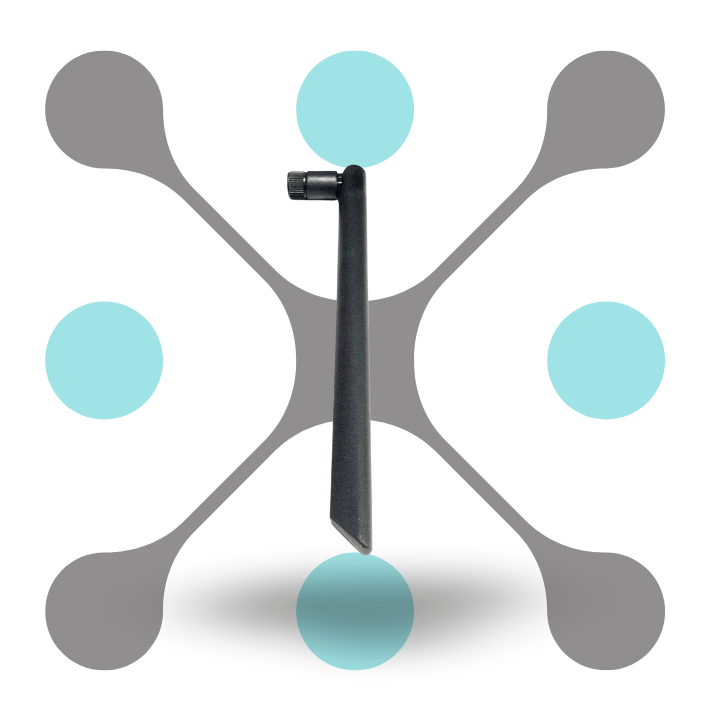

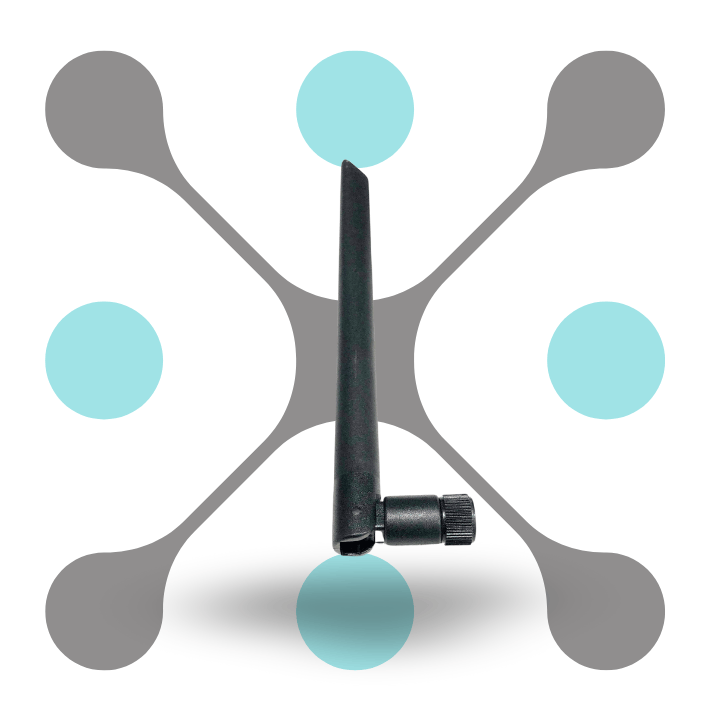

Overview of this TX915-JKD-20RP IC
Features
- Optimized Frequency Range: The TX915-JKD-20RP operates at a frequency of 915MHz, covering a range from 900 to 945MHz. This ensures reliable performance across various applications.
- High Antenna Gain: With an antenna gain of 3.5dBi, the TX915-JKD-20RP provides enhanced signal strength. This makes it suitable for long-range communication needs.
- Omnidirectional Radiation: The antenna offers omnidirectional radiation, ensuring uniform signal coverage. This is ideal for applications requiring wide-area coverage.
- Robust Construction: Made from TPEE and CU materials, the antenna is durable and reliable. Its black color and 200mm length make it both practical and sleek.
- Efficient Performance: The TX915-JKD-20RP features a nominal impedance of 50Ω and a SWR of ≤2.5. It can handle up to 20W power, ensuring efficient performance.
Specification
| Specification | Details |
|---|---|
| Part Number | TX915-JKD-20 |
| Material | TPEE |
| Material of Radiator | CU |
| Connector Type | SMA-J |
| Antenna Colour | Black |
| Overall Length | 200mm |
| Diameter | OD 13mm |
| Cable Type | N/A |
| Cable Length | N/A |
| Weight | 22g ± 2g |
| Frequency Range | 915MHz (900~945MHz) |
| Antenna Gain | 3.5dBi |
| Radiation Type | Omnidirectional |
| Polarization | Linear Vertical |
| Nominal Impedance | 50Ω |
| Power Standing | 20W |
| S.W.R. | ≤2.5 |
| SKU | RW-1276 |
