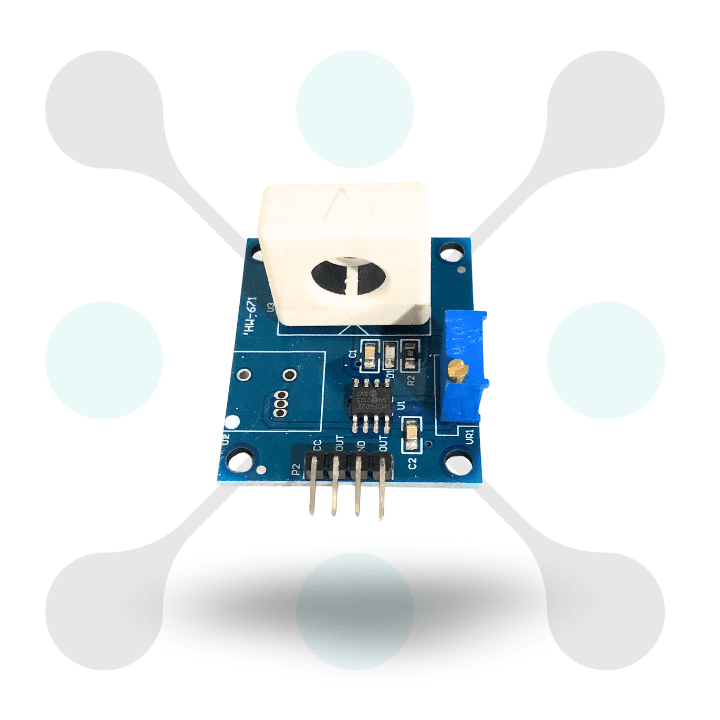

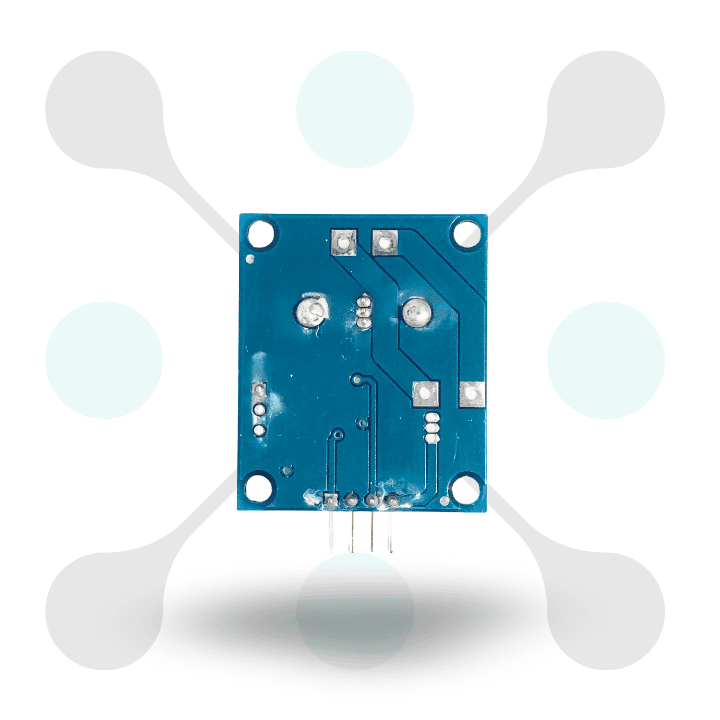

Overview of this wcs1700 hall current sensor module
Introducing roboway wcs1700 hall current sensor module with over current protection & 33 mV/A senstivity. With a current detection resolution of 33mV/A, this module offers accurate readings perfect for various device.
It is also built with overcurrent protection. This WCS1700 ensure safe & smooth operation by providing output overcurrent signal indication. Users can adjust the critical point of the overcurrent signal to meet specific need, with a resolution of 3A.
It also features mounting holes for easy installation in firmware setup. It converts sampling current into analog signal output, which can be accessed through ADC or TTL level signal output for easy integration with microcontroller IO port. With selectable maximum detection current ranging from 2A to 200A, the WCS1700 provide flexibility to use it in diverse project need.
Features
- High Resolution: The WCS1700 Hall Current Sensor Module offers a current detection resolution of 32mV/A. This high-resolution capability ensure precise monitoring of current levels in circuit.
- Overcurrent Signal Indication: It provide an output overcurrent signal indication for prompt notification of overcurrent conditions. This feature enhances safety by alerting users to potential issues in the circuit.
- Adjustable Critical Point: Users can adjust the critical point for overcurrent signal settings with a resolution of 3A. This customization allows for fine-tuning to suit specific application requirements.
- Mounting Holes: Equipped with mounting holes, the module facilitates easy installation onto firmware. This design feature enhances convenience and stability during setup.
- Analog Signal Output: The module samples current and converts it into an analog signal output. This output can be acces via ADC or TTL level signal output, enabling control through microcontroller IO ports.
- Selectable Maximum Detection Current: Users can select the maximum detection current from a range of options. Choices include 2A, 5A, 7.5A, 20A, 30A, 35A, 60A, 75A, 100A, 150A, and 200A, providing flexibility for diverse applications.
- Enhanced Safety Features: With overcurrent protection, the module ensures safety by preventing excessive current flow. This safeguard protects both the module and connected devices from potential damage due to overcurrent situations.
Specification
| Specification | Description |
|---|---|
| Operating Voltage | 3.3V – 5V (Typically) |
| Current Sensing Range | ±70A |
| Hall Effect Sensor Type | Hall Effect Sensor |
| Output Signal | Analog Voltage Output |
| Sensitivity | 33 mV/A |
| Bandwidth | 23K Hz |
| Over Current Protection | Yes |
| Operating Temperature Range | -40°C to +85°C |
| Accuracy | ±1.5% Full Scale |
| Response Time | fast |
| Isolation Voltage | ≥ 2000Vrms |
| Dimensions | 5x5x4 mm |
| Mounting | Through-hole or surface mount |
| Connection | Terminal blocks or solder pads |
| Reverse Polarity Protection | Yes |
| SKU | RW-511 |
