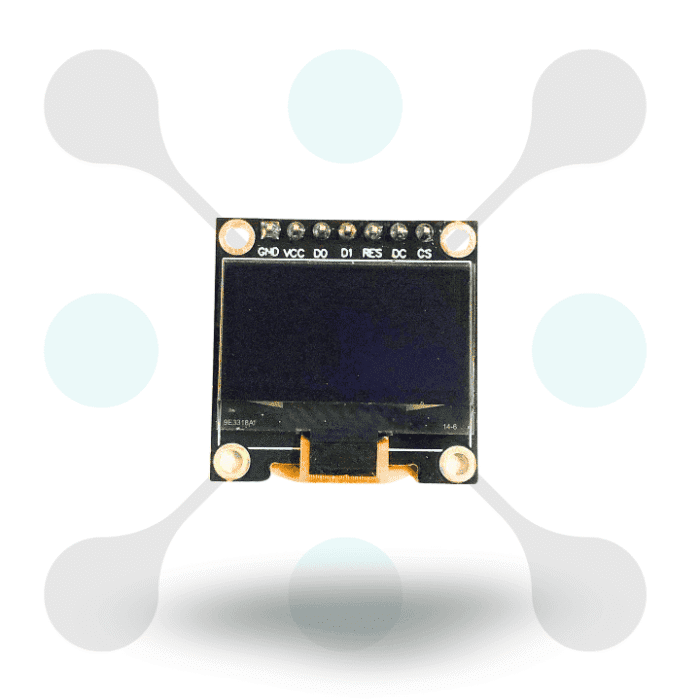

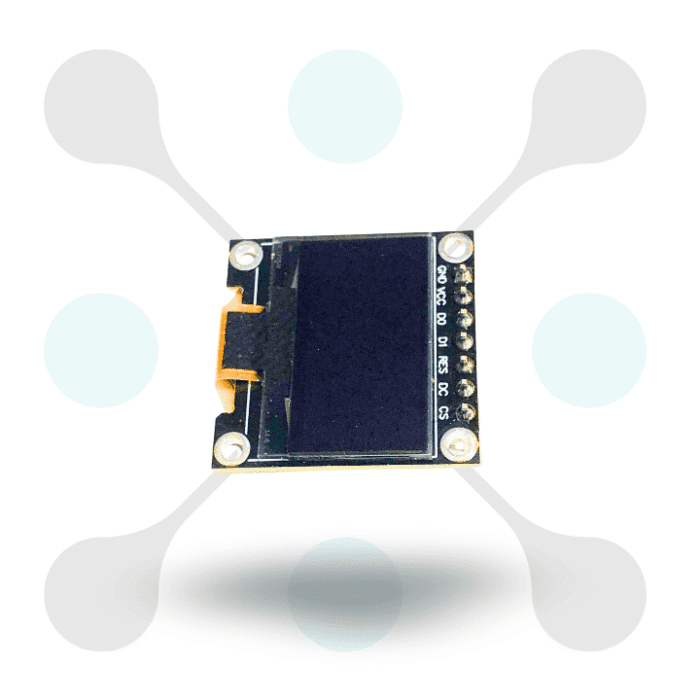

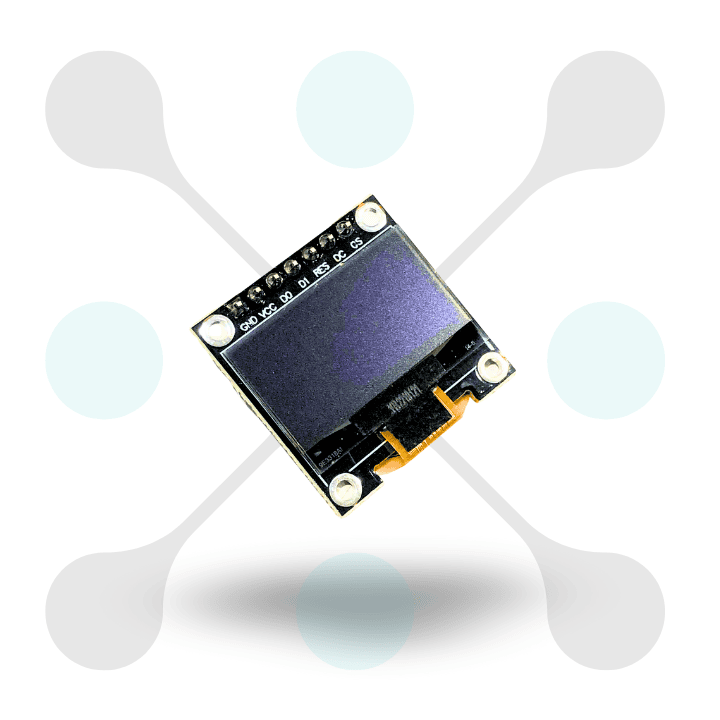

0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue)  can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128×64 . The package includes display board,display, 7 pin male header presoldered to board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

Setting up SPI/I2C Connection with 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue) –

Being a new entry to the market, only limited resources are available on this small piece of miracle (GMS096A). I2C/SPI configuration always demands helpful resources as in any case. For the SPI setup, the module comes in 4 wire SPI configuration by default.

0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue) offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.

Features:-

• 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue) has OLED Driver IC: SSD1306
• Resolution: 128 x 64
• Visual Angle: >160°
• Input Voltage: 3.3V ~ 6V
• Compatible I/O Level: 3.3V, 5V
• Only Need 2 I/O Port to Control
• 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue) is full Compatible with Arduino
• 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue) has a Working temperature: -30°C ~ 70°C
• Module volume of 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue)  ( generous ): 2.7 cm x 2.7 cm x 0.41 cm

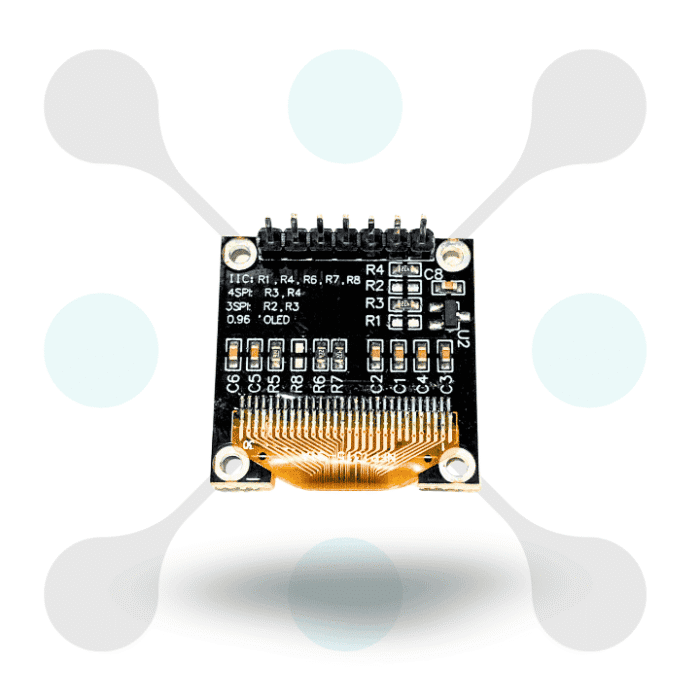

• Factory configured for SPI protocol (can be easily changed to IIC)

Other features :

1. No need of the backlight
2. The display is self-illuminating
3. Power requirement is low
4. They are offering the large viewing angle
5. 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue) is full Compatible with Arduino
6. Factory configured for SPI protocol (can easily change to IIC)
7. Better performance characteristics than traditional LCD and LED displays.
8. Only Need 2 I/O Port Control

Package Contains :

1 x 0.96″ OLED Display Module – SPI/I2C – 128×64 – 7 Pin (Blue)

Data sheet :  ssd1306-datasheet
