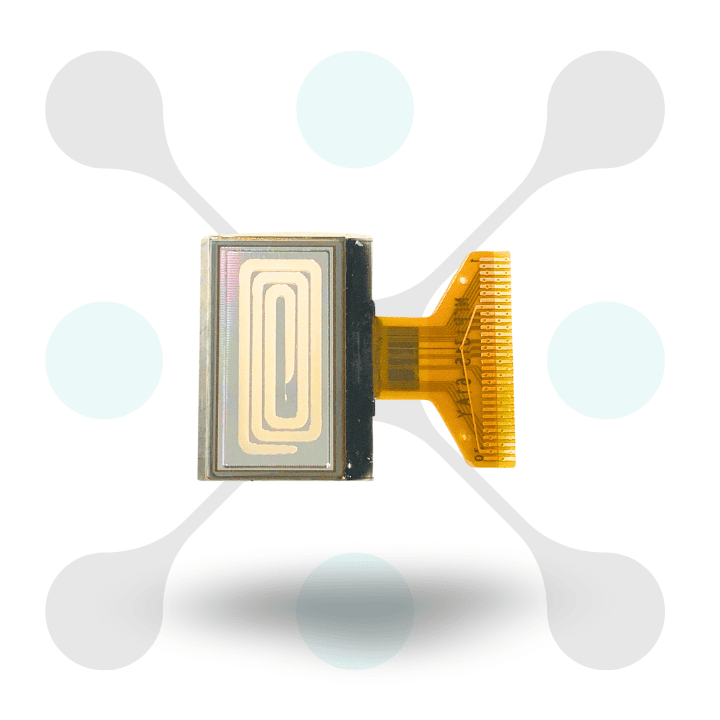

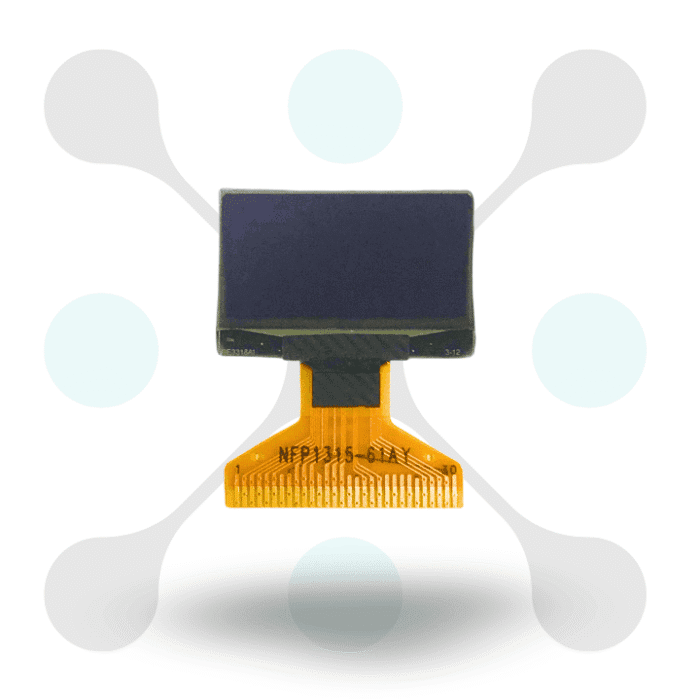

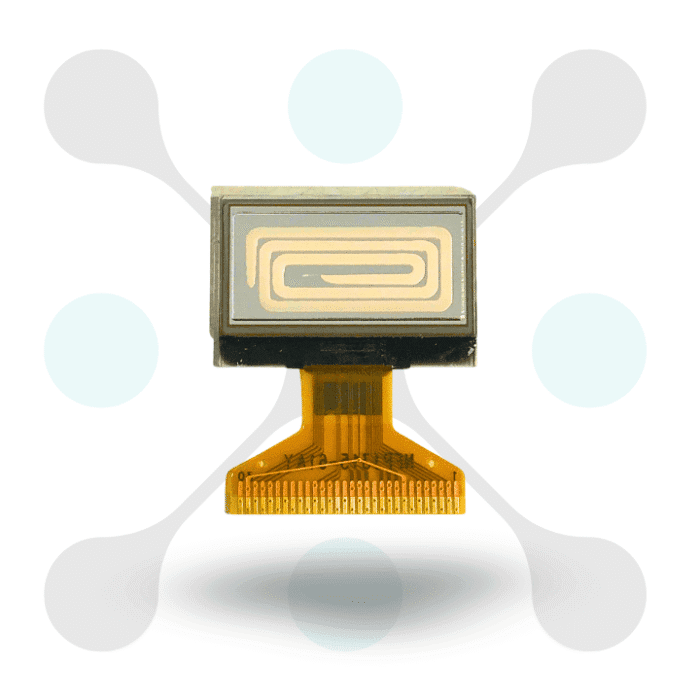

0.96Inch Blue Serial I2C IIC OLED LCD LED Display Without PCB

149.00 ( Excluding 18% GST )

Size 0.96 inches
Resolution 128 x 64 pixels
Color Blue
Viewing Angle > 160 degrees
Dimension 27mm x 27mm x 4.1mm


In stock


11 People watching this product now!
Description

Description

Overview of this 0.96Inch Blue Serial I2C IIC OLED LCD LED Display

Introducing 0.96Inch Blue Serial I2C IIC OLED LCD LED Display. A best solution for various projects. This display offers vibrant blue OLED visuals and easy integration with I2C communication protocol. With its compact size and LED backlighting, it’s perfect for space-constrained applications.

Experience convenience and ease of use with the 0.96-Inch Blue Serial I2C IIC LCD LED Display. Its serial interface simplify connectivity, while the IIC protocol ensures efficient data transfer. Whether used in DIY electronics, wearable devices, or small gadgets, this display adds a touch of sophistication to your projects.

Features

  • 0.96-Inch OLED Display: This 0.96Inch Blue Serial I2C IIC OLED LCD LED Display also provide a vibrant 0.96inch display for varibest ous applications. Its small form factor allows for easy integration into projects with limited space.
  • Serial I2C Interface: This 0.96Inch Blue Serial I2C IIC OLED LCD LED Display also use I2C communication protocol & offers simple interfe with micro controllers and device. It also make it ideal for projects need efficient data exchange and control.
  • Blue OLED Color: It feature a blue OLED color, it ensures clear and visible display of information. This vibrant color enhances visibility, even in different lighting conditions.
  • No PCB Required: Designed without a printed circuit board, it simplifies integration and reduces overall size. This feature enables flexible installation and saves space in compact projects.
  • Low Power Consumption: Operating with low power consumption, it is perfect for battery powered device and project. It also ensure energy efficiency and long battery life in portable devices.

Specification

Specification Details
Size 0.96 inches
Resolution 128 x 64 pixels
Color Blue
Viewing Angle > 160 degrees
Supported Platforms Arduino, 51 series, MSP430 series, STIM32/2 series, SCR chips
Power Consumption 0.04 W (during normal operation)
Voltage Support 3.3V – 5V DC
Working Temperature -30°C to 80°C
Dimension 17x26x1.6 mm
Driver IC SSD1306
Communication IIC
I/O Ports Only two required
Source Software-driven
Backlight OLED self-light (no backlight)
Interface VCC, GND, SCL (Serial Clock), SDA (Serial Data)
SKU RW-980
