Description

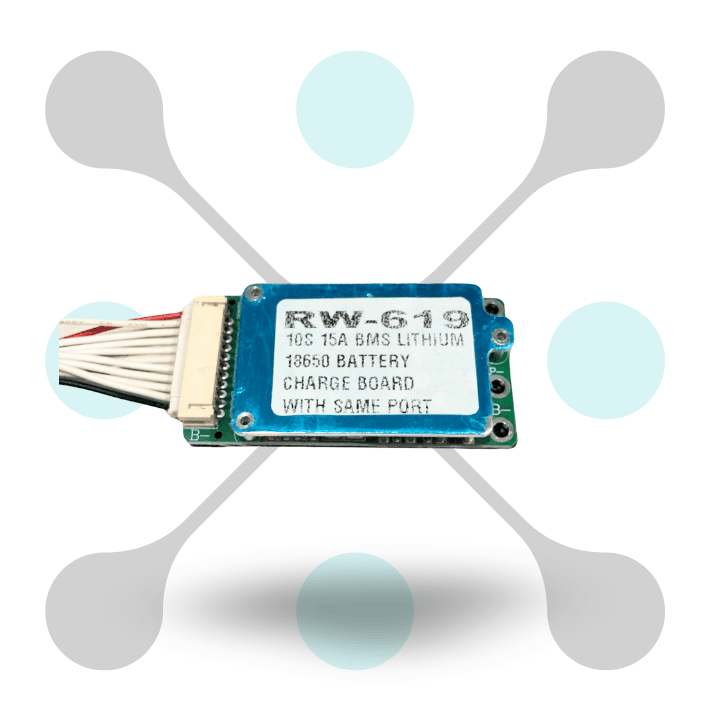

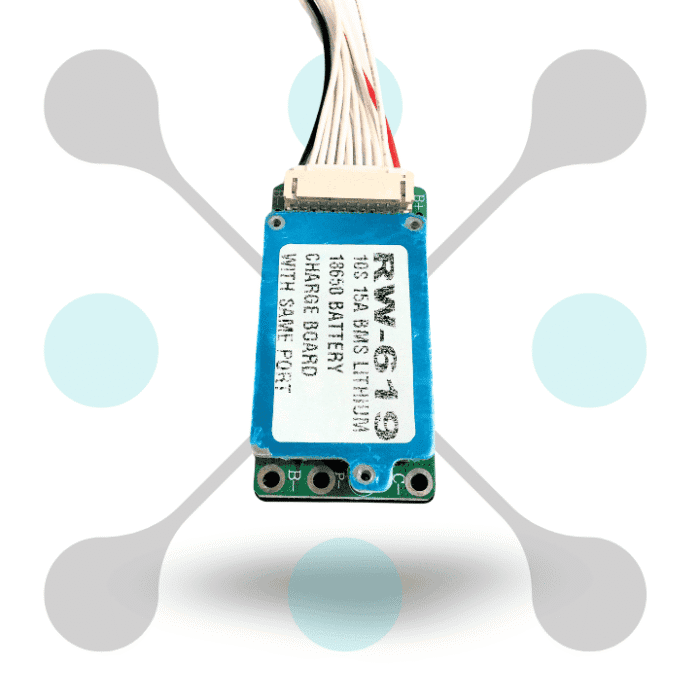

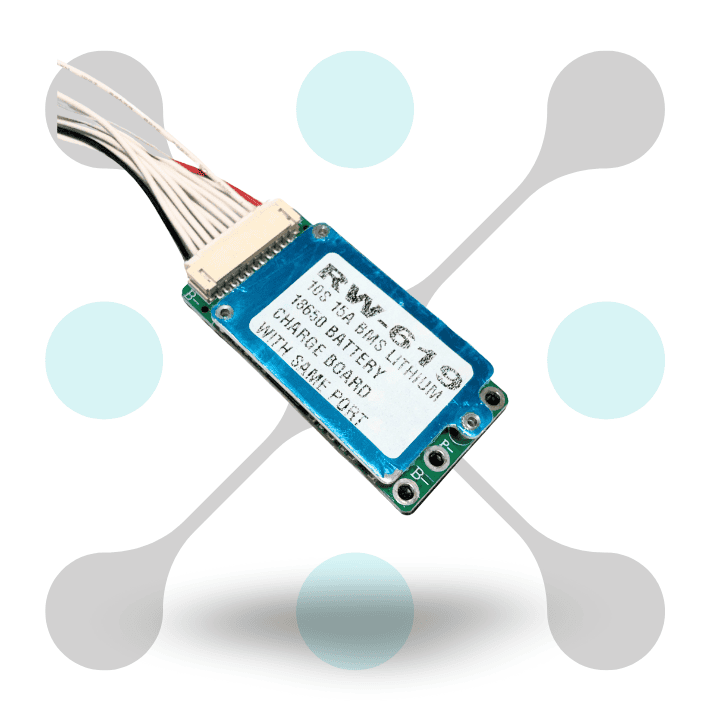

Overview of this 10S 15A BMS Battery Charge Board With Same Port
Introducing Roboway 10S 15A BMS Battery Charge Board with Same Port to manage 18650 lithium battery at best price in India. This 10S 15A BMS module ensure efficient charging and discharging with comprehensive protection features. It provides overcharge, over-discharge, and short-circuit protection to enhance battery safety and reliability. Ideal for electric bikes, scooters, and other high-power applications, this 10S BMS board with the same port is a reliable solution for battery management.
With a 15A current rating, the Roboway 10S 15A 18650 lithium battery BMS board supports high-performance energy systems. The same port design simplifies wiring and reduces space requirements in your project. Its robust construction and high-quality components guarantee long-lasting and stable performance. Upgrade your battery management system with this efficient 10S 15A BMS Battery Charge Board for enhanced safety and efficiency.
Features
- Balanced Charging and Discharging: This 10S 15A BMS Battery Charge Board With Same Port ensure uniform charging and discharging across all 10 cells for longevity. It helps prevent cell imbalance, enhancing overall battery performance and lifespan.
- 15A Continuous Current Capacity: It also support up to 15A continuous current, suitable for high-power applications. This ensures efficient power delivery for devices requiring consistent energy supply.
- Integrated Same Port Design: This 10S bms board with same port feature a same port design for both charging and discharging & simplify connection. This reduces wiring complexity & make it ideal for compact battery packs.
- Overcurrent, Overvoltage, and Short Circuit Protection: It has also built in protection safety against overcurrent, overvoltage, and short circuits. This feature enhance safety and reliability & prevent potential damage to battery.
- Compact and Easy Installation: Its compact size allows for easy integration into various battery projects. The board is designed for user-friendly installation with clear connection points and instructions.
Specification
| Specification | Details |
|---|---|
| Type | 10S 15A BMS Lithium 18650 Battery Charge Board |
| Supported Battery Type | 18650 Lithium-Ion |
| Number of Cells | 10 cells in series (10S configuration) |
| Nominal Voltage | 36V |
| Max Charging Voltage | 42V (4.2V per cell) |
| Overcharge Protection Voltage | 4.25V ± 0.05V per cell |
| Over-discharge Protection Voltage | 2.8V ± 0.05V per cell |
| Max Continuous Discharge Current | 15A |
| Charging Current | Up to 15A |
| Short Circuit Protection | Yes, automatic recovery |
| Balance Current | 60mA – 80mA |
| Balance Function | Yes, active balancing |
| Internal Resistance | ≤ 20mΩ |
| Operating Temperature Range | -20°C to 60°C |
| Dimensions | Approx. 100mm x 60mm x 10mm |
| Weight | Approx. 45 grams |
| Port Type | Same port for charging and discharging |
| Protection Features | Overcharge, over-discharge, short circuit, and overcurrent protection |
| SKU | RW-619 |
