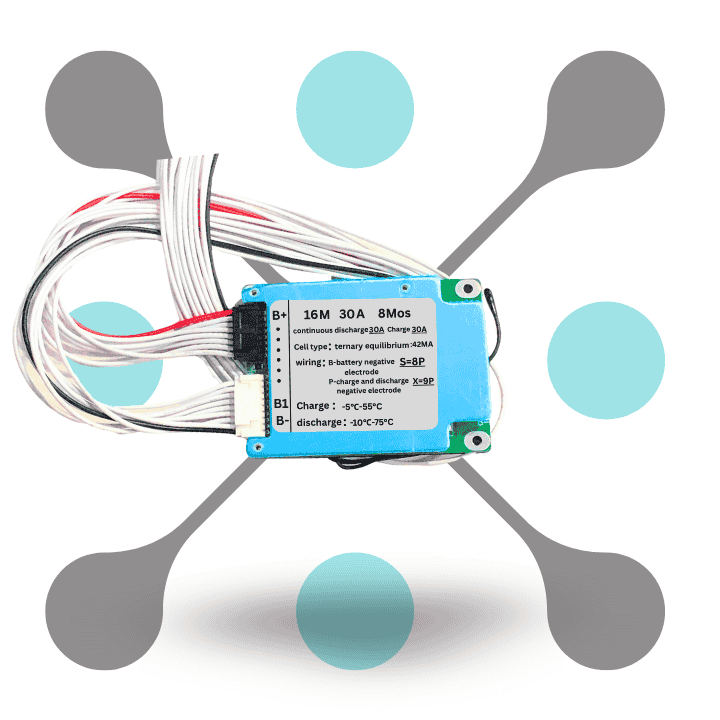

16S 30A 8MOS Bms Lithium 18650 Battery Charging Board

The 16S 30A 8MOS BMS (Battery Management System) for Lithium 18650 Battery Charging Board is a critical component designed for managing and safeguarding lithium-ion or lithium-polymer battery packs with 16 series-connected cells (16S). This BMS plays a pivotal role in ensuring the safe and efficient operation of these battery packs. Here’s a detailed description of this BMS:

1. Battery Management System (BMS): This module functions as a BMS, purpose-built to oversee the charging and discharging processes of a battery pack comprised of 16 series-connected lithium-ion or lithium-polymer cells. The “16S” designation indicates 16 cells connected in series.

2. Charging and Protection: The primary function of this BMS is to monitor and regulate the charging and discharging of the battery pack. It prevents overcharging, which can be detrimental to lithium batteries, as well as over-discharging, which can damage cells or reduce their lifespan.

3. Current Handling: The BMS is equipped with a current rating of 30A, indicating its capacity to handle a maximum continuous discharge current of 30 amperes. This current rating is suitable for applications with moderate to high power requirements.

4. Multiple MOSFETs: The “8MOS” designation signifies that this BMS is equipped with eight MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). MOSFETs are used to control the charging and discharging currents and provide efficient switching between different operational states.

5. Cell Balancing: The BMS incorporates cell balancing functionality, which involves actively monitoring and equalizing the voltage levels of individual cells within the battery pack. This feature ensures that all cells remain at the same voltage level, optimizing overall pack performance and longevity.

6. Safety Protections: Safety features, such as overcurrent protection, short circuit protection, and over-temperature protection, are integrated into the BMS to prevent potential damage to the battery pack and ensure safe operation.

7. Compact Design: The module typically features a compact and space-saving design, making it suitable for integration into various battery pack configurations, particularly those with size constraints.

8. Wiring and Connectors: The BMS module comes with input and output terminals or connectors designed for connecting the battery pack to the load and charger. Proper wiring and connections are essential for safe and efficient operation.

9. Visual Indicators: Some BMS modules are equipped with LED indicators that provide visual feedback on the battery pack’s status, including charging progress and fault conditions.

10. DIY Projects: The 16S 30A 8MOS BMS Lithium 18650 Battery Charging Board is commonly used in do-it-yourself (DIY) projects that involve building custom lithium battery packs for various applications, including electric vehicles, solar energy storage systems, power banks, and more.

In summary, the 16S 30A 8MOS BMS Lithium 18650 Battery Charging Board is a vital component for managing and protecting lithium-ion or lithium-polymer battery packs consisting of 16 series-connected cells. Its role is essential in ensuring the safety and efficiency of battery-powered devices and is frequently employed in both commercial and DIY projects involving custom lithium battery packs
