This inductor coil can handle up to 5 amps of current, making it suitable for power supplies, DC-DC converters, and other electronic devices. Its compact toroidal (ring) shape helps reduce magnetic interference and saves space on circuit boards. It is reliable, efficient, and perfect for use in both DIY projects and professional electronics.
Specification

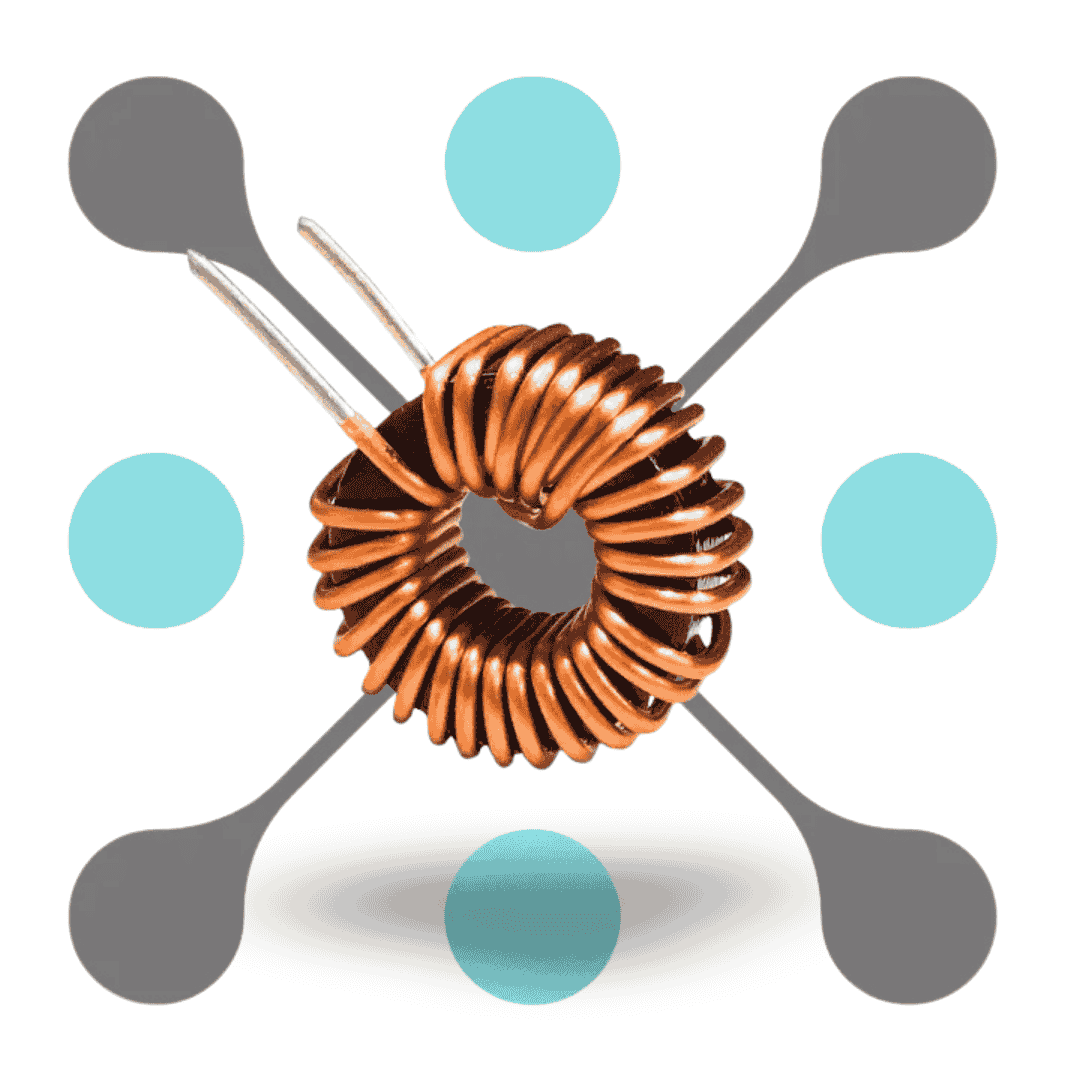

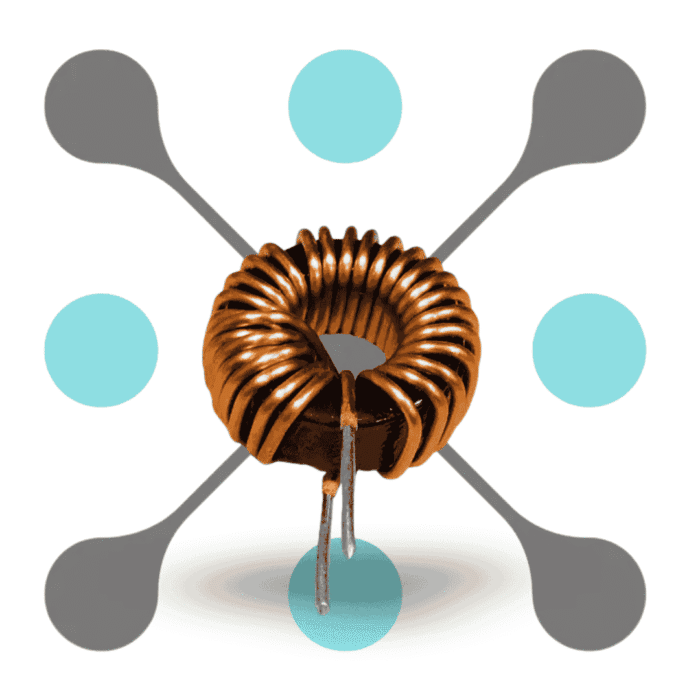

Product Name: 12×6 mm 6.8μH 5A Magnetic Inductor Coil Toroidal
Inductance Value: 6.8μH
Rated Current: 5A
Outer Diameter: 12mm
Inner Diameter: 6mm
Height: 6mm
Wire Diameter: 0.7mm
Core Material: Ferrite Magnetic Toroidal Core
DC Resistance (DCR): Low Resistance
Frequency Range: Suitable for High-Frequency Applications
Temperature Range: -40°C to +125°C
Application: Power Supply Circuits, DC-DC Converters, Filters, and DIY Projects
Mounting Type: Through-Hole / Solderable Leads
Insulation Type: Enameled Copper Wire
Dimension: 12mm (Outer) × 6mm (Inner) × 6mm (Height)
Weight: . 1.2g
SKU: RW-563
