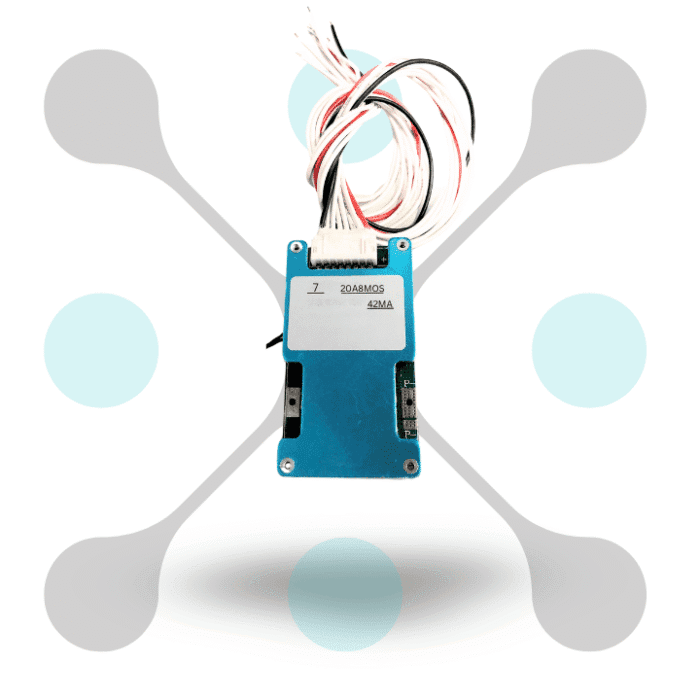

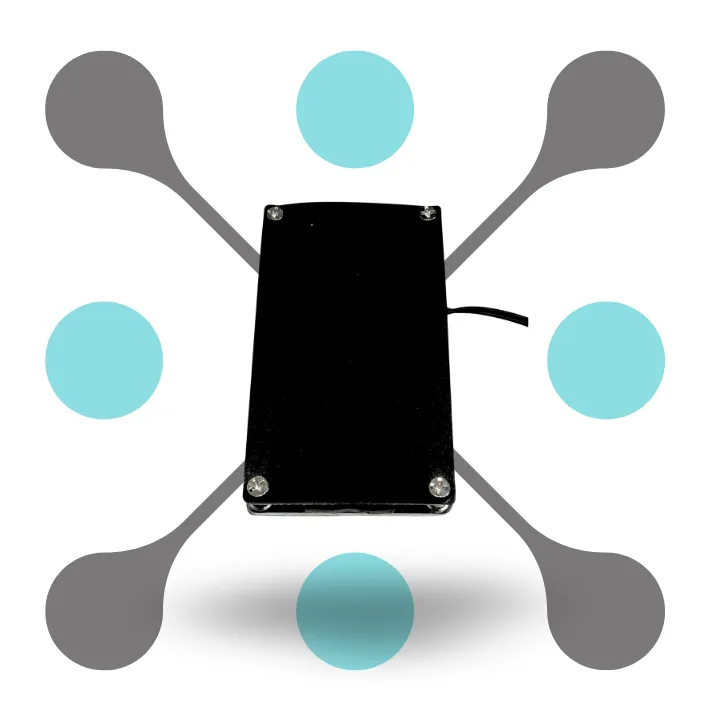

7S 20A 8MOS BMS Lithium 18650 Battery Charging Board Equalizer With Ntc Temperature Protection

750.00 ( Excluding 18% GST )

Battery Type Lithium 18650
Battery Series 7S (7 series)
Rated Current 20A
MOSFETs 8 MOSFETs
Overcharge Protection 4.25V ± 0.05V per cell


In stock


16 People watching this product now!
Description

Description

Overview of this 7S 20A 8MOAS 18650 battery charging board

Introducing the 7S 20A 8MOAS 18650 battery charging board with ntc temperature protection at best price . the ultimate solution for efficient battery management. This 7S 20A 8MOS BMS Lithium 18650 Battery Charging Board is designed for optimal performance and reliability. It ensures safe and balanced charging of your lithium batteries, extending their lifespan. Experience unparalleled functionality with this advanced charging board.

The 7S 20A 8MOS Battery Charger with NTC Temperature Protection offers robust safety features. Its integrated NTC temperature sensor prevents overheating, ensuring secure operation. This 7S 20A 8MOS BMS board is ideal for various applications requiring stable power supply. Trust in its precision and durability for your battery management needs.

Maximize your battery performance with the 7S 20A 8MOS BMS Lithium 18650 Battery Charging Board. Its 8MOS design provides efficient current distribution and protection. This board’s smart balancing ensures each cell charges evenly and safely. Upgrade your battery charging setup with this reliable and high-performance BMS board.

Features

  • 7-Series Battery Management: Supports management of 7-series lithium-ion batteries for optimal performance. Ensures efficient charging and discharging processes.
  • 20A Continuous Current: Capable of handling up to 20A continuous discharge current for high-power applications. Provides robust power management for demanding devices.
  • 8 MOSFET Design: Features 8 high-quality MOSFETs for improved switching performance and efficiency. Enhances thermal management and reduces power loss.
  • Balancing and Equalizing Function: Automatically balances the voltage of each cell for extended battery life. Prevents overcharging and over-discharging of individual cells.
  • NTC Temperature Protection: Includes NTC thermistor for precise temperature monitoring and protection. Prevents overheating and safeguards battery health.

Specification

Specification Description
Battery Type Lithium 18650
Battery Series 7S (7 series)
Rated Current 20A
MOSFETs 8 MOSFETs
Overcharge Protection 4.25V ± 0.05V per cell
Overdischarge Protection 2.8V ± 0.05V per cell
Overcurrent Protection 20A ± 3A
Short Circuit Protection Yes (Auto recovery after load removal)
Balancing Current 30mA ± 5mA
Equalization Voltage 4.2V ± 0.05V per cell
Temperature Protection NTC temperature sensor included
Temperature Range -30°C to 80°C
Self-Consumption ≤30µA
Dimensions 70mm x 50mm x 12mm (L x W x H)
Weight Approximately 50g
Operating Humidity 0% to 95% RH
Charging Voltage 29.4V ± 0.05V
PCB Material High-quality FR-4 epoxy glass substrate
Mounting Screw holes provided for easy mounting
SKU RW-616
