Description
-
- Measures 1Hz-50MHz frequency and most of crystal oscillator frequency.
-
- Large 5-digit LED display, easy and clean for readings.
-
- Automatically switch range, no need to switch manually.
-
- Programmable frequency setting can be used to test transceiver, etc.
-
- Can select energy-saving mode, it will turn off the display if the frequency is not changed in 15s.
—
Product description

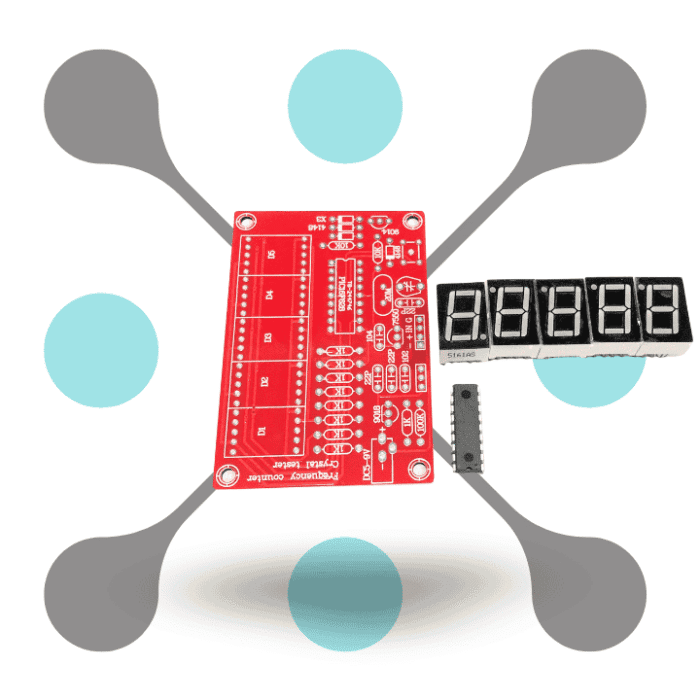

This is a frequency meter based on PIC single chip microcomputer, equipped with crystal oscillator measurement function, programmable frequency setting and LED digital display. All the parts are inserted components, easy and simple to install.
Specifications:
Material: PCB
Color: Red
Frequency Range: 1Hz-50MHz
Crystal Test Range: 4MHz-48MHz
PCB Size: 80 * 55mm / 3.15 * 2.17in
Assembled Size: 80 * 55 * 7mm / 3.15 * 2.17 * 0.28in
Package Size: 11.5 * 9.5 * 2cm
Package Weight: 32g
Note:
It is sold as DIY parts, you need to solder and install the components together by yourself.
Package List:
1 * Frequency Meter DIY Kit
