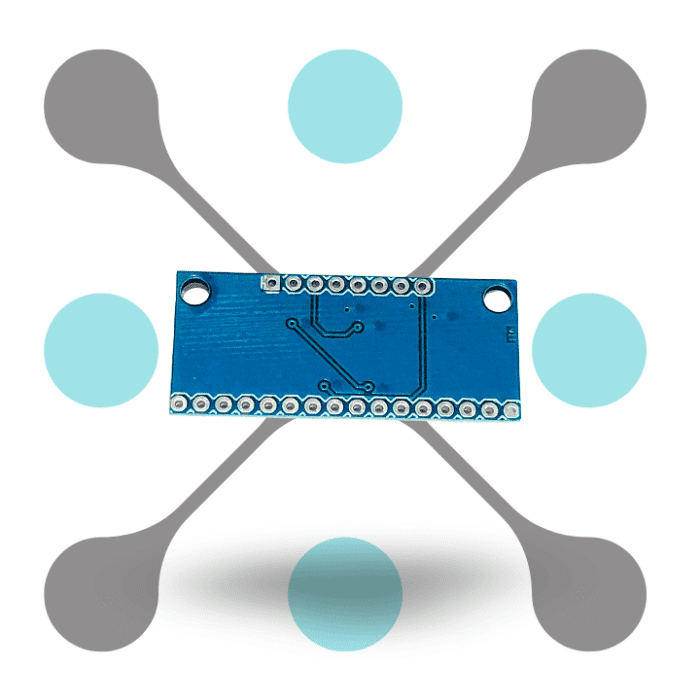

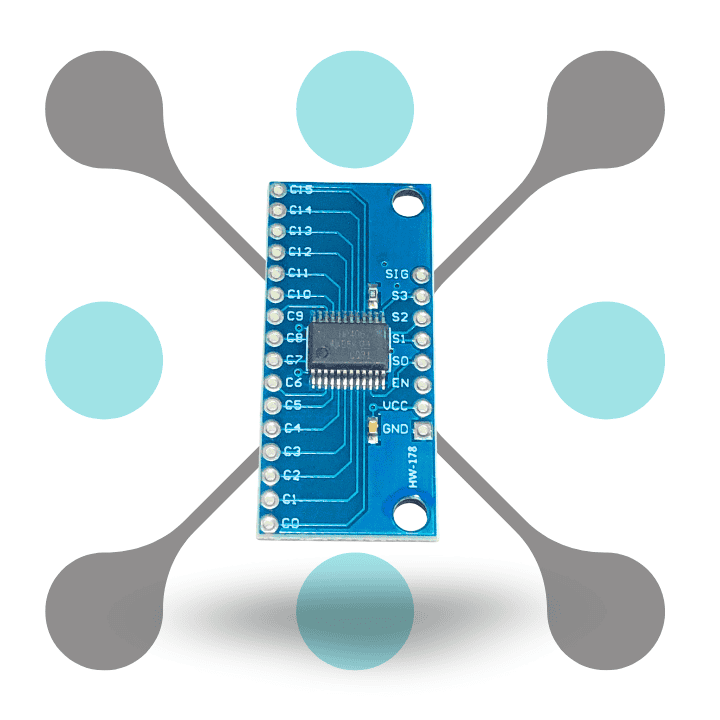

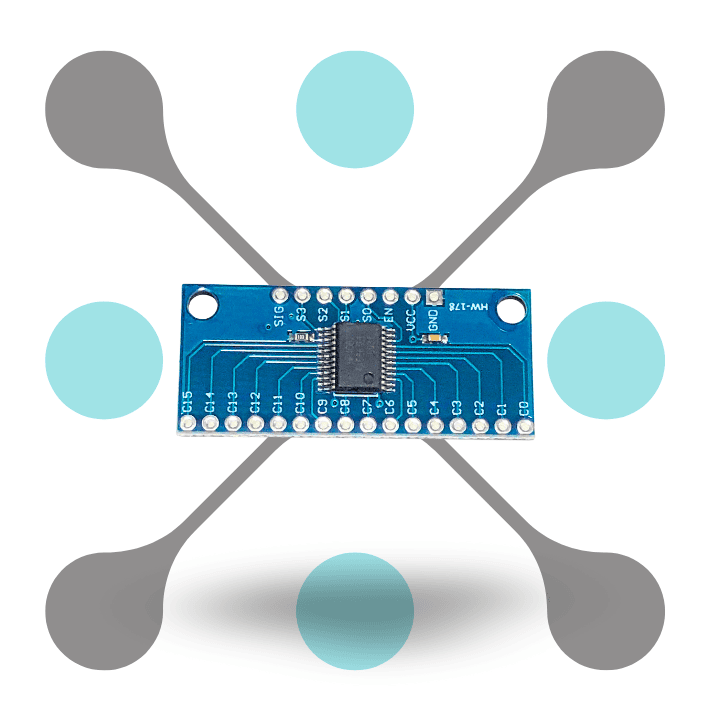

Overview of this cd74hc4067 16-channel analog digital multiplexer breakout board
Introducing Roboway CD74HC4067 16-channel analog digital multiplexer breakout board is a versatile module that simplify signal routing. This cd74hc4067 multiplexer breakout board can connect one input to any of its 16 channels & make it ideal for project that need multiple analog or digital input. It is specially designed for easy integration, it allows smooth switching between multiple signal & reduce the need for complex wiring.
With this 16-channel analog multiplexer CD74HC4067, you can efficiently control multiple sensor or device from a single microcontroller pin. This cd74hc4067 multiplexer module support both analog and digital signals & make it perfect for various applications. Its compact size also enhance project flexibility and function in electronic and prototyping setup.
Features
- 16-Channel Multiplexing Capability: This cd74hc4067 module allow control of up to 16 separate analog or digital signals. It simplify circuit design by reducing the number of I/O pins required.
- High Speed Signal Switching: It provide fast switching for high speed signal processing task. This make it perfect for time sensitive application like audio processing and sensor data collection.
- Wide Voltage Range Compatibility: This module support a broad input voltage range from 2V to 6V. This ensure compatibility with both 3.3V and 5V microcontroller like Arduino and Raspberry Pi.
- Low On Resistance for Better Performance: With a low on resistance, this module reduce signal loss. This helps maintain signal integrity & crucial for sensitive analog application.
- Compact and Easy to Use Design: This breakout board’s compact size make it easy to use into project. Its simple layout allow for quick connections and efficient prototyping.
Specification
| Specification | Description |
|---|---|
| Model | CD74HC4067 |
| Channels | 16 channels (1 of 16 multiplexer/demultiplexer) |
| Signal Type | Analog and digital |
| Supply Voltage (VCC) | 2V to 6V |
| Control Logic Level | Compatible with 3.3V and 5V systems |
| Channel ON Resistance | 70Ω (typical) |
| Switching Speed | Fast switching speed, suitable for high-speed applications |
| Logic Control Pins | 4 selection pins (S0, S1, S2, S3) for selecting one of the 16 channels |
| Enable Pin | 1 enable pin (active low), disables all channels when set HIGH |
| Package | Breakout board module with standard headers for easy prototyping |
| Temperature Range | -55°C to +125°C |
| SKU | RW-246 |
