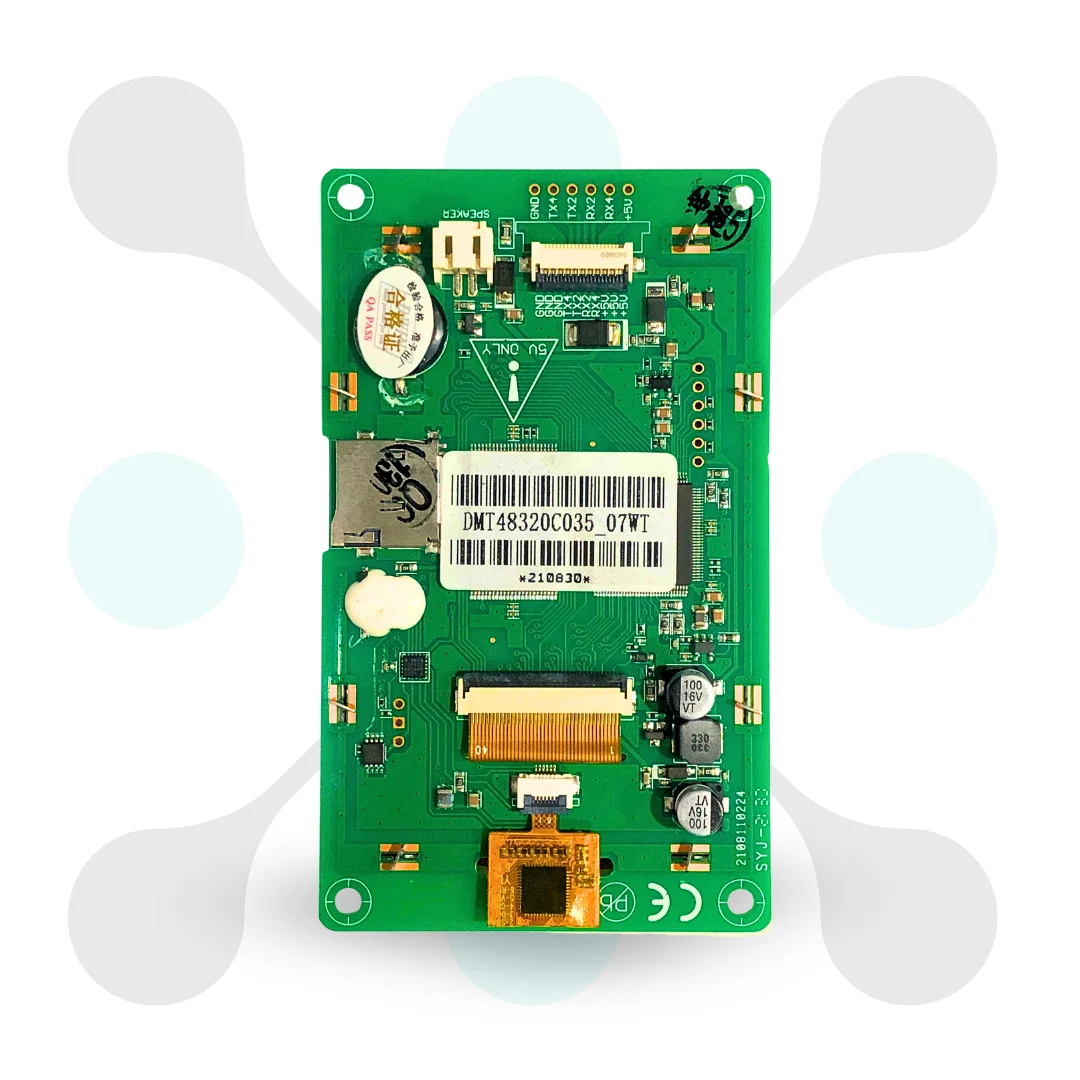

DWIN DMT48320C035 07WT HMI 3.5 Inch Ips LCD Capacitive Touch Display

This is a DWIN HMI 3.5 Inch Ips LCD Capacitive Touch Display.

This DWIN 3.5 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Such as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 300 nit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards like Arduino, Raspberry and many more… which can be interface with I2C communications.

Features:

1. Built-in DGUS II intelligent software
2. Powerful data management
3. Active Area (AA):49.0mm (W) ×73.4mm (H)
4. Dimensions:103.3(W) mm× 61.1(H)mm × 12.3(T)mm capacitive touch panel, Built-in Buzzer, WIFI_10 module
5. Powerful data management
6. Built-in DGUS II intelligent software

Display:

1. Size – 3.5″
2. Display Format -320×480
3. Brightness -300nit
4. Active Area – 49.0mm (W) ×73.4mm (H)
5. Colour – 24-bit colour 8R8G8B
6. Backlight – LED

Interface:

• UART4: Optional N81/E81/O81/N82 four-mode, 3.3V TTL/CMOS ( Be used after OS
  configuration )

Package Includes :

1 x DWIN DMG48320C035_03WTC HMI 3.5 Inch Ips LCD Capacitive Touch Display
