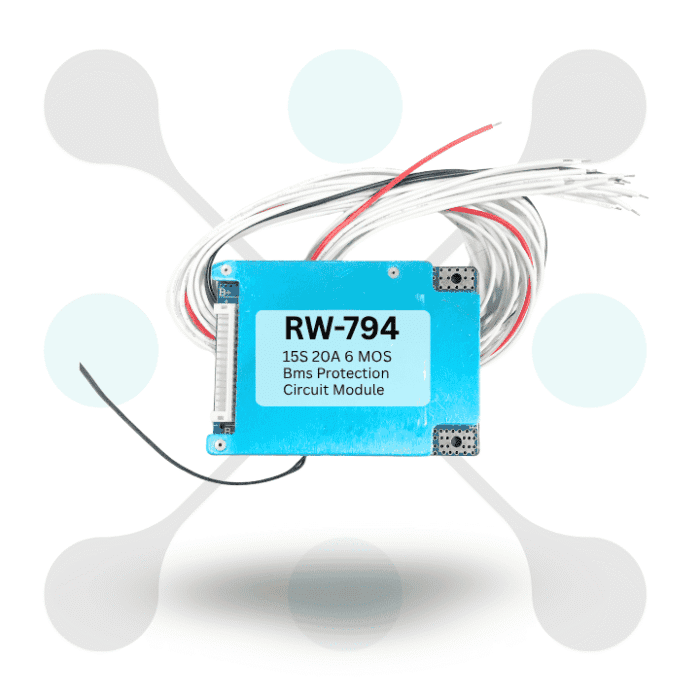

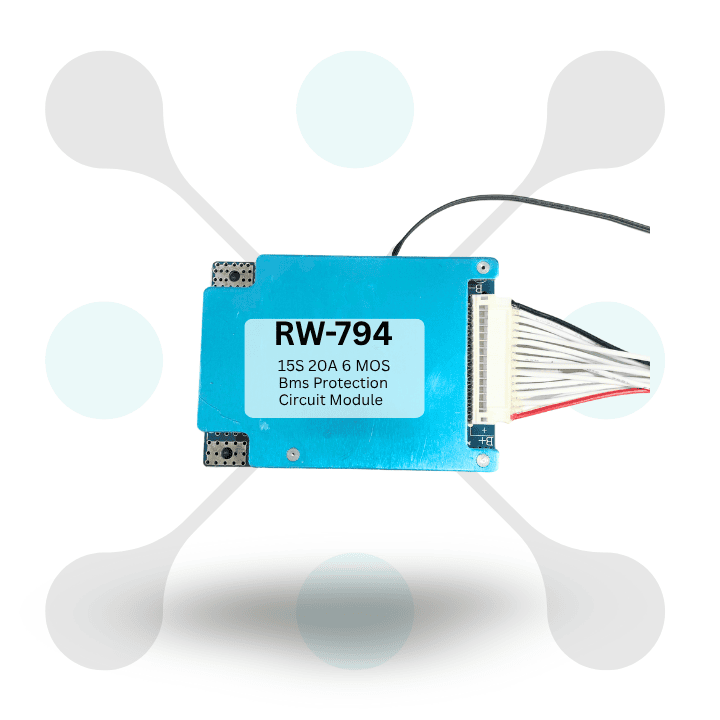

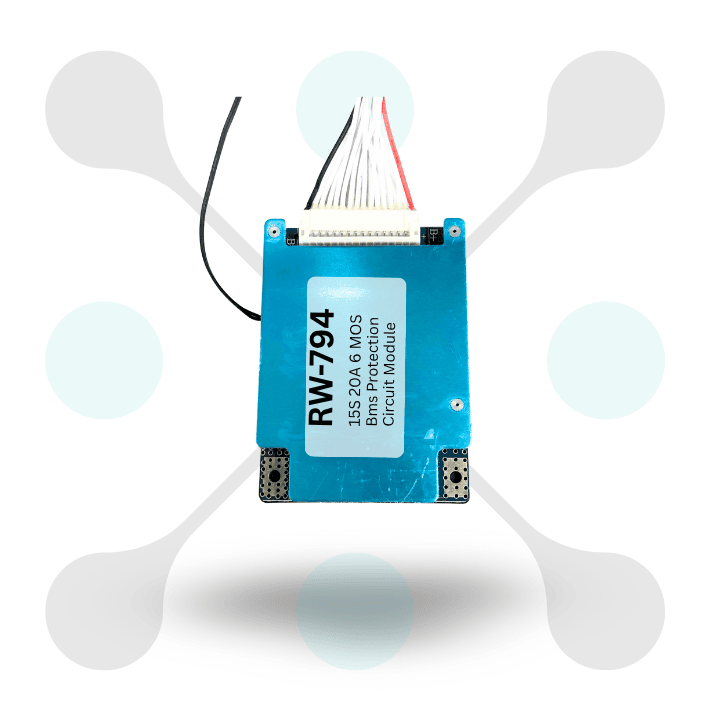

15S 20A 6 MOS PROTECTION CIRCUIT MODULE

The 15S 20A 6 MOS Protection Circuit Module is a critical electronic component designed to oversee and safeguard the operation of large lithium-ion or lithium-polymer battery packs consisting of 15 series-connected cells. Below is a detailed description of this module:

Description: The 15S 20A 6 MOS Protection Circuit Module is an advanced battery management system (BMS) designed for a variety of applications, including electric vehicles (EVs), solar energy storage systems, portable power banks, and industrial equipment. This module serves as a vital guardian for your battery pack, ensuring its safety, performance, and longevity by monitoring key parameters and implementing protective measures.

Key Features:

1. 15S Configuration: Compatible with battery packs comprising 15 series-connected cells, ensuring balanced charging and discharging to prevent overcharging and overdischarging.
2. 20A Continuous Discharge: Capable of handling a continuous discharge current of up to 20 amperes, making it suitable for a wide range of high-power applications.
3. 6 MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors): Equipped with six MOSFETs, this module efficiently manages current flow, controls charging and discharging, and safeguards against overcurrent and short-circuit conditions.
4. Battery Protection: Offers comprehensive battery protection, including overcharge protection, overdischarge protection, overcurrent protection, short-circuit protection, and thermal protection. These features ensure the safety of the battery pack, mitigate thermal runaway, and reduce the risk of fire hazards.
5. Balancing Function: Monitors individual cell voltages within the battery pack and performs cell balancing to ensure that no cell is overcharged or overdischarged, thereby extending the overall battery lifespan.
6. Temperature Monitoring: Integrated temperature sensors help prevent overheating and thermal stress of the battery pack, enhancing safety and reliability.
7. Compact and Durable: The module is designed to be compact and rugged, capable of withstanding various environmental conditions, making it suitable for both indoor and outdoor applications.
8. Easy Integration: It typically comes with connectors and mounting holes for straightforward integration into battery packs or systems.

Applications:

• Electric vehicles (e.g., electric cars, e-bikes)
• Renewable energy storage systems
• Uninterruptible power supplies (UPS)
• Industrial machinery and equipment
• Robotics and automation systems
• High-power portable devices
• Emergency backup power solutions

The 15S 20A 6 MOS Protection Circuit Module is a vital component for ensuring the safety, reliability, and efficient operation of large lithium-ion or lithium-polymer battery packs in various applications. Its comprehensive protection features, substantial current handling capability, and advanced management functions make it an indispensable asset for systems reliant on high-capacity battery solutions.
