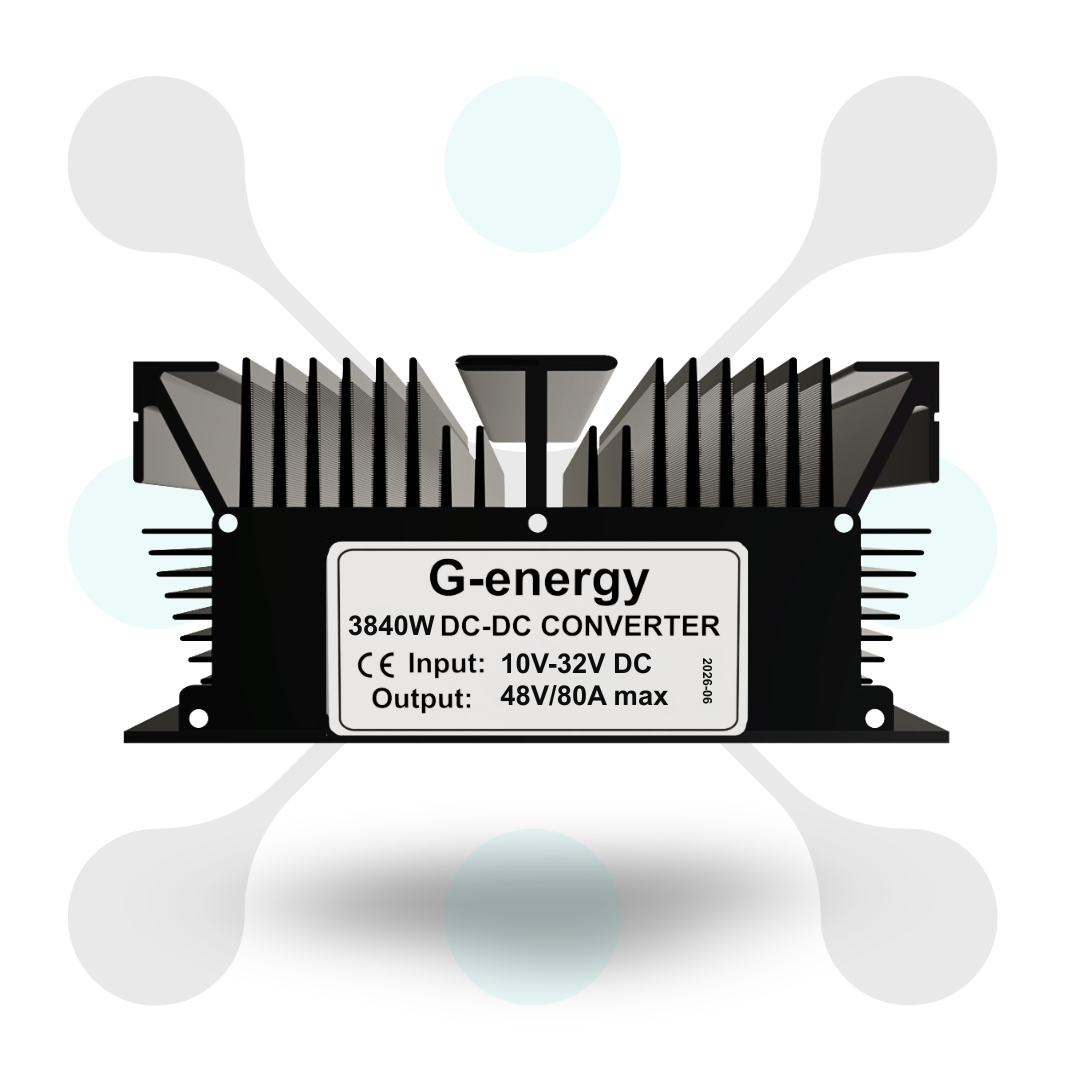

G-energy GEMSUS124880 12V To 48V 80A 3840W Dc Dc Converter

Overview of this G-energy 12V To 48V 80A 3840W Dc Dc Converter

Introducing G-energy 12v to 48v 80a 3840w dc dc converter high power boost converter at best price in India. This boost converter work on a wide input voltage of 11V-35V dc input and provide a stable 48v dc output for stable operations. And it is built with latest synchronous rectification technology and provide high conversion efficiency up to 95% energy conversion.

Features

Wide input voltage: It is built to operate on a wide input of 9v to 35v which make it perfect for use at 12v as well as 24v dc input voltage.

3840W High power: It also provide a high dc power up to 3840w to operate high power operate high power operation smoothly.

High efficiency with stable 48v output: it is also built with synchronous rectification technology to provide a stable 48v dc output with high conversion efficiency up to 95% energy conversion.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 11V – 35V DC

2. Rated Input Voltage: 12V 24V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 80A

5. Maximum Output Power: 3840W

6. Efficiency (Typical): Up to 95%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 12/24V input

🌡 Environmental Specifications

1. Operating Temperature Range: -40°C to +80°C

2. Storage Temperature Range: -40°C to +100°C

3. Humidity Range: 10% to 90% RH

🛡 Protections and Features

1. Protections Included:

2. • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

3. Smart Chip Protection: Yes

4. Synchronous Rectification Technology: Yes

5. Non-Isolated Converter: Yes

📦 Mechanical & Physical

1. Dimensions: 74x74x32 mm

2. Weight: 250 gm

3. Cooling Method: Free air convection (no fan required)
