G-energy GEMSUS1224100 12V To 24V 100A 2400W Dc Dc Converter Step Up Converter Module

Description

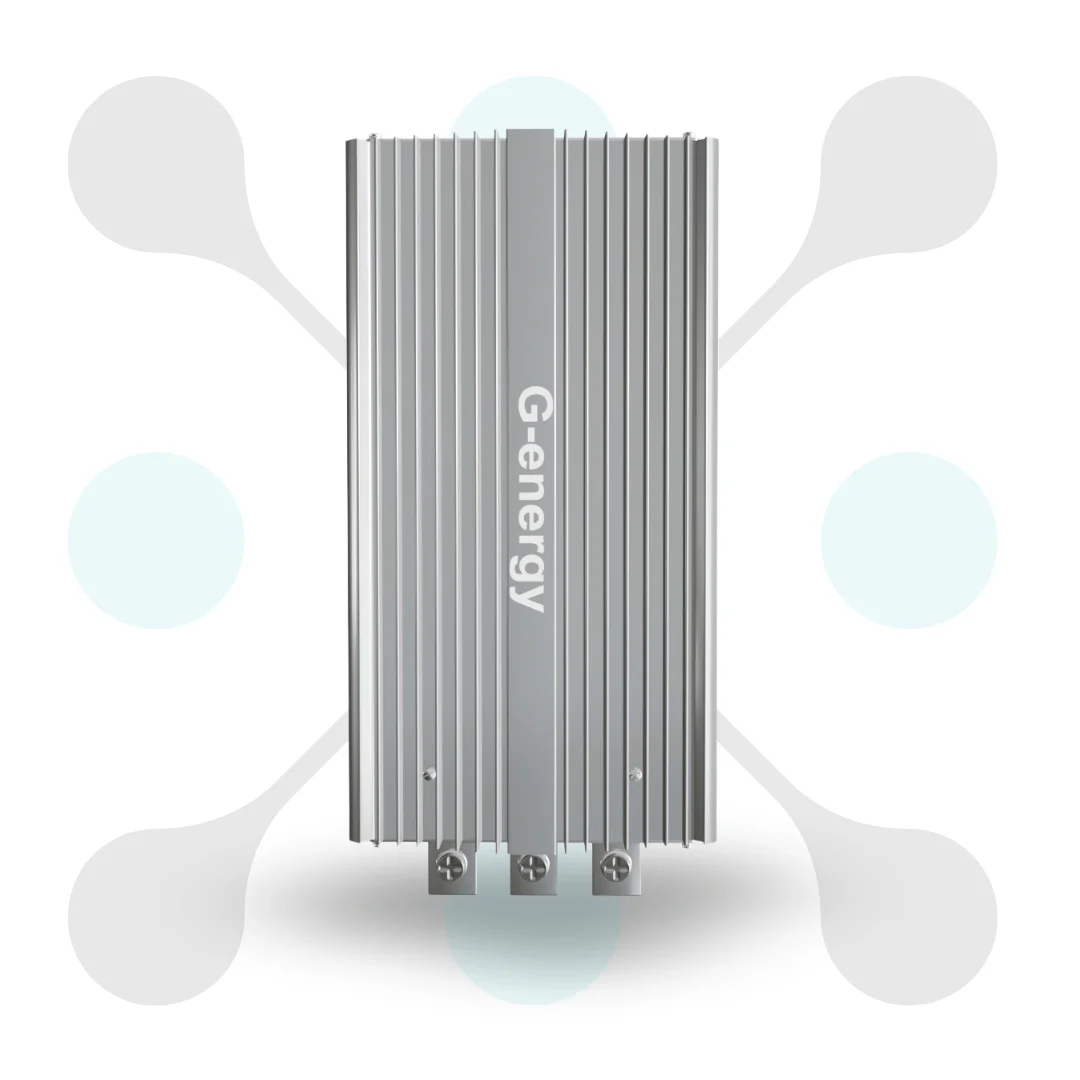

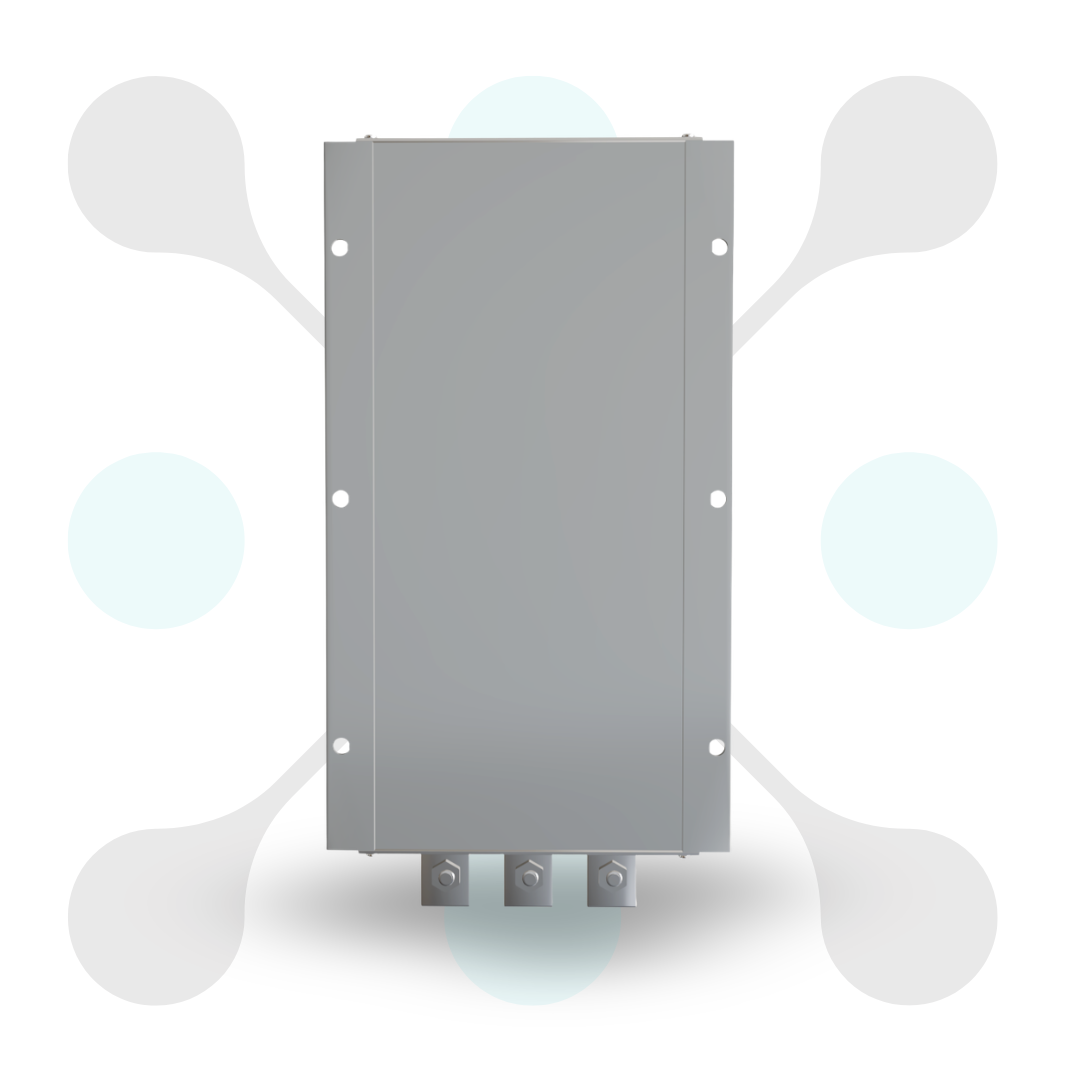

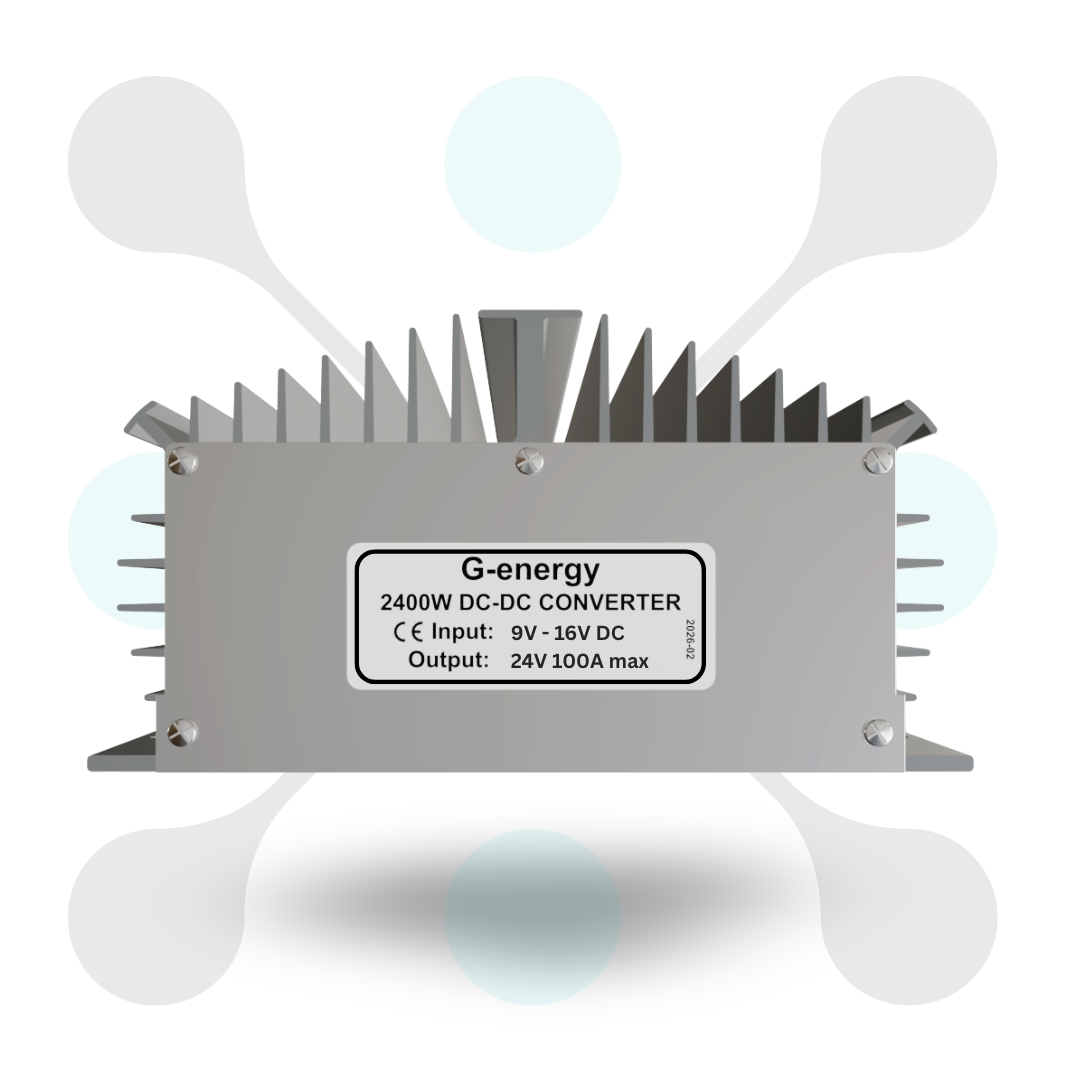

Overview of this G-energy GEMSUS1224100 12V To 24V 100A 2400W dc dc converter

Introducing G-energy GEMSUS1224100 12v to 24v 100a 2400w dc dc converter step up converter module at best price in India with Roboway. This voltage converter can provide a fix 24v dc output from a input voltage range of 9v to 16v. And it also provide a high dc power up to 2400w and high dc current up to 100a.

Features

2400W High Power: This voltage converter also provide a high dc power up to 2400w for high power operation with stable power.

100A Dc Current: This 12v to 24v boost converter also provide high dc current up to 100a with a fix 24v dc output voltage.

Wide input voltage: It work on a wide input voltage of 9V to 16V for its smooth operation in changing input condition.

Datasheet

Datasheet of GEMSUS1224100 12V To 24V 100A 2400W Dc To Dc Converter Boost Converter Module

Specification

Model: GEMSUS1224100

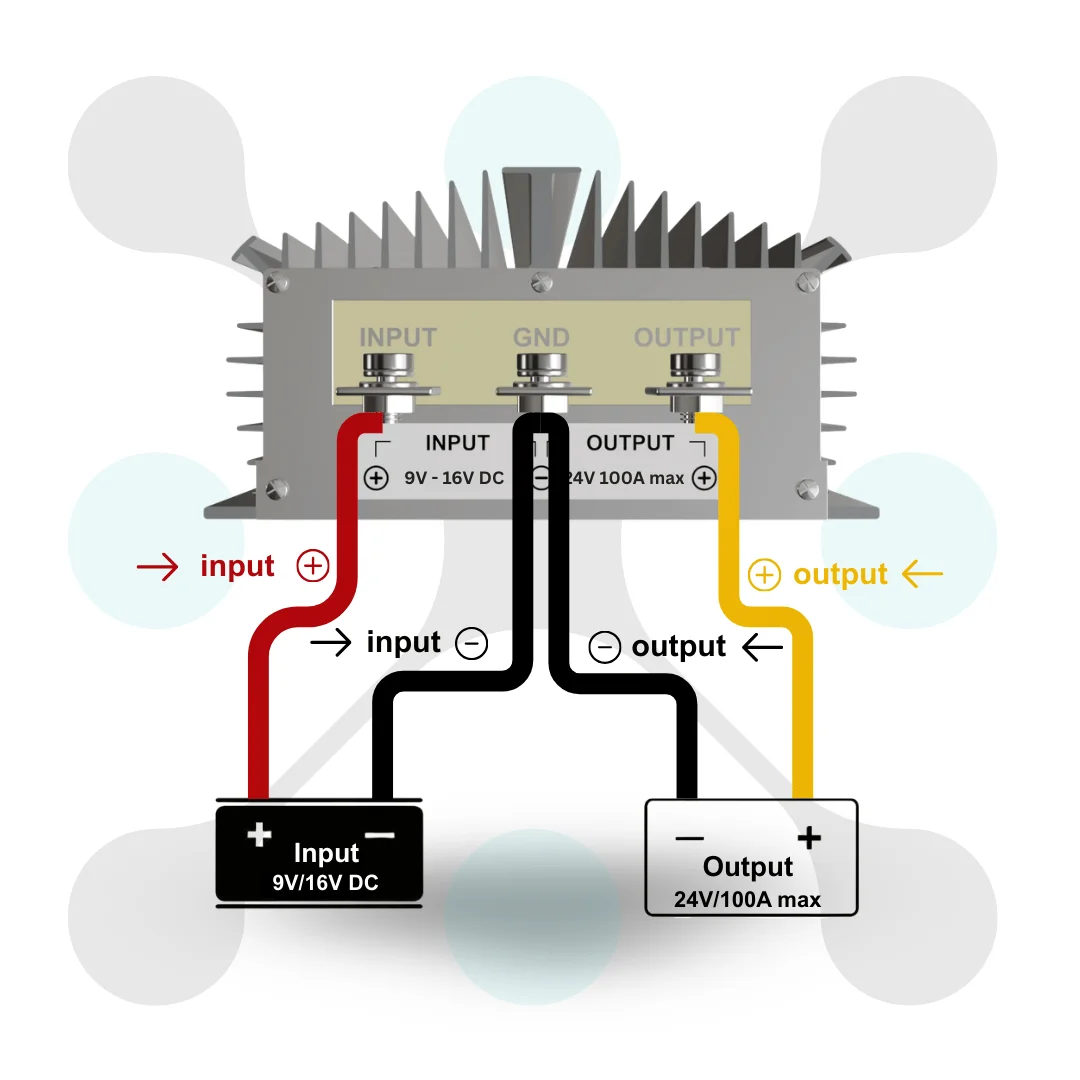

Input Voltage: 9V To 16V

Output Voltage: 24V DC (Fixed)

Output Current: Up to 100A

Power Output: 2400W (Max)

Efficiency: ≥ 93%

Protection: Overload, Overheat, Short Circuit, and Fuse Protection

Material: Aluminum Alloy Body

Cooling Type: Natural Air Cooling

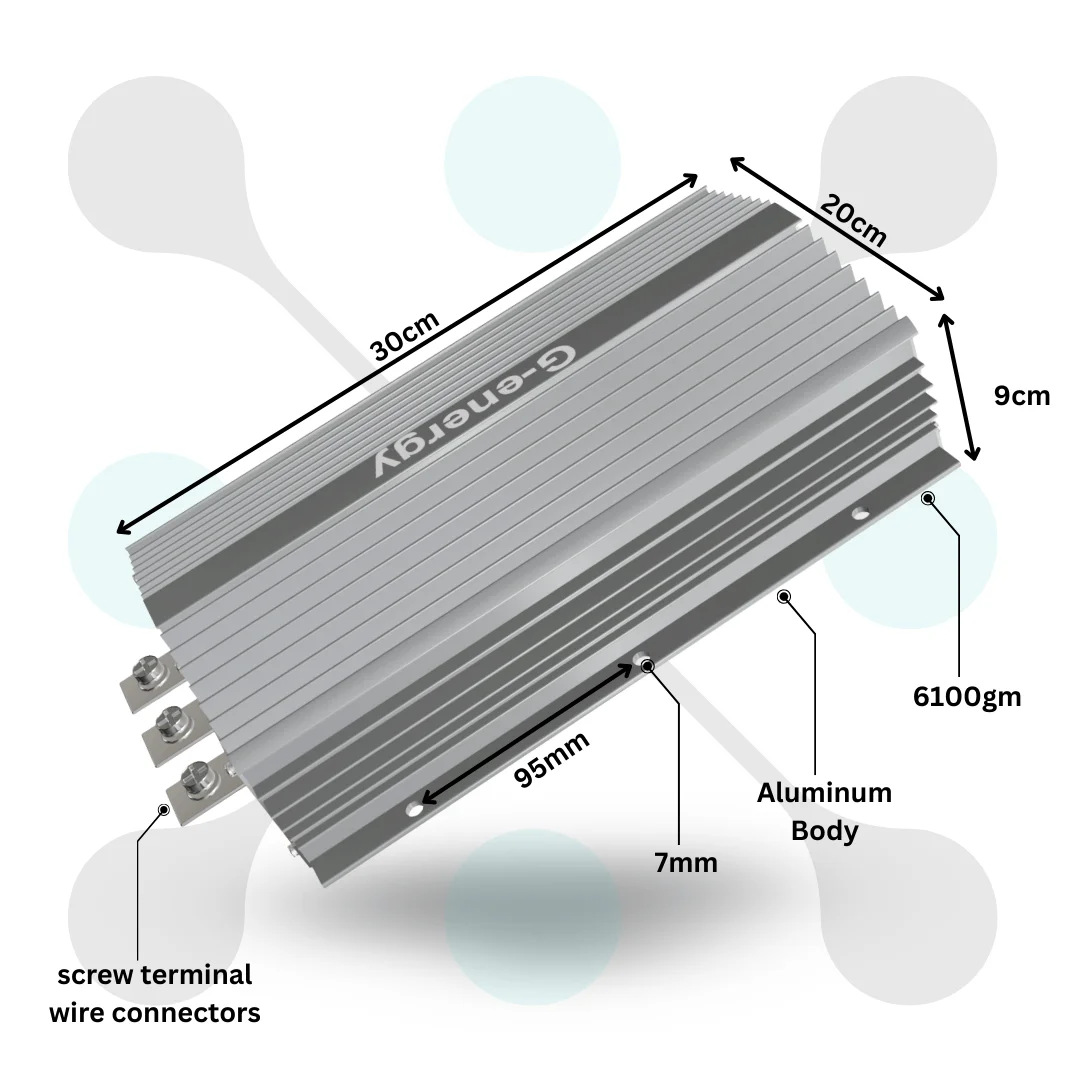

Dimensions: . 20x30x9 cm

Weight: 6100gm

SKU: RW-1091
