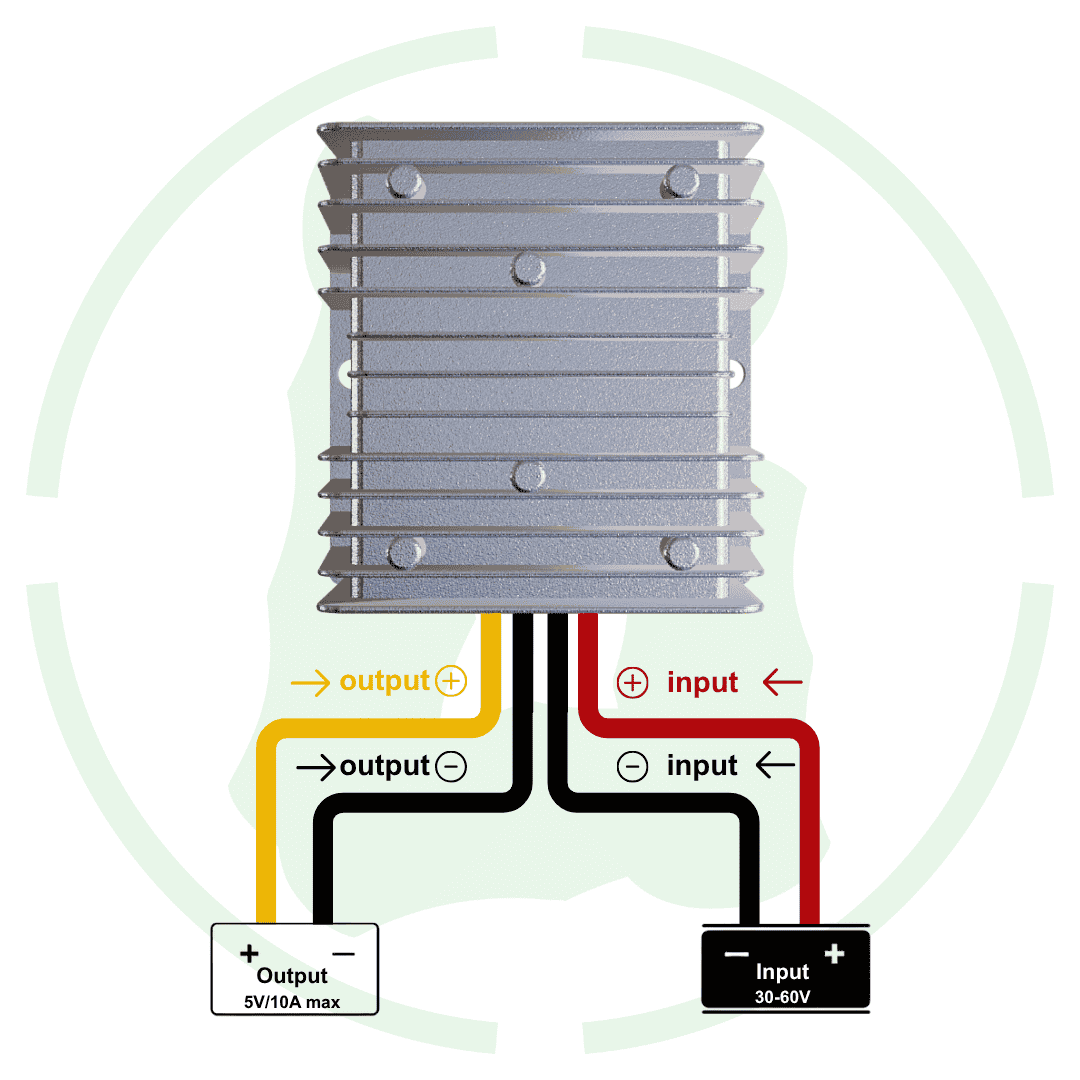

Overview of this g-energy 48V To 5V 50W 10A dc dc converter ip68 step down voltage converter

Introducing G-energy 48v to 5v 50w 10a dc dc converter ip68 step down voltage converter module at best price in India with Roboway. This 48v to 5v voltage converter smoothly work input voltage range form 30v to 60v voltage range for industrial use. It also provide upto 10A and max current and 50w maximum power upto 50w power.

This voltage converter also come with short circuit, under-voltage, over-voltage and ip68 waterproofing protection feature for use in different industrial voltage converter. And these safety features make it best choice for use in different industrial machinery and other device for stable use.

Features

• Wide input range: This 48v to 5v dc to dc converter come with working input voltage range from 30v to 60v to make it work with multiple dc voltage.
• Stable 5V output: This voltage converter provide a stable 5v output voltage for smooth industrial device function.
• Metal body with ip68 rating: This voltage converter come with metal body & ip68 water proofing for stable use in changing and harsh industrial condition.
• Short circuit undervoltage overvoltage protection: This dc dc converter come with short circuit undervoltage and over voltage protection for safety from changing condition in industrial setup.
• 50W Max power: This 48v to 12v dc to dc converter can provide upto 50W max power for smooth industrial use for maximum 5v dc operated dc device.

Specification

• Input Rated Voltage: 48V

• Input Voltage Range: 30V to 60V

• Conversion Efficiency (Typical): >95%

• Output Voltage: 5V

• Maximum Rated Output Current: 10A

• Maximum Rated Output Power: 50W

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No Load Loss: 22mA @ 48V input

• Ripple & Noise: 300mV (at full load)

• Working Temperature Range: -40°C to +80°C

• Storage Temperature Range: -40°C to +100°C

• Working Humidity: 10% to 90% RH

• Protection Features:

• Short Circuit Protection: Yes

• Over Current Protection: Yes

• Over Temperature Protection: Yes

• Over Voltage Protection: Yes

• Waterproof Rating: IP68

Mechanical & Other Details:

• Weight: 300gm

• Size: 2.5cmx6cmx6.5cm

• Cooling Method: Free air convection

• Packaging: Static bag or White Box

datasheet

click here for datasheet of G-energy DC 48V To 5V 50W 10A Dc Dc Converter IP68 Voltage Converter
