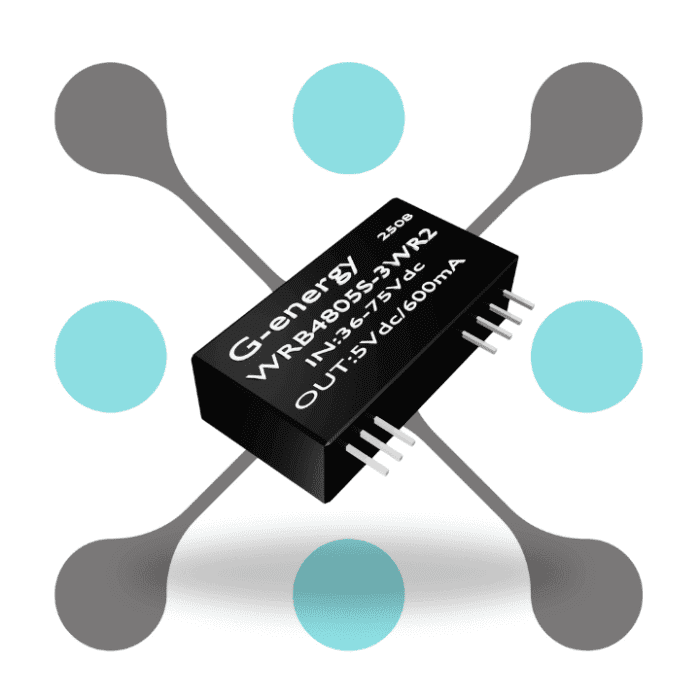

Overview of this G-energy WRB4805S-3WR2 48V to 5V 3W 666mA Dc Dc Converter Isolated Boost Moudle
Features
-
High-Efficiency Voltage Conversion: The WRB4805S-3WR2 DC-DC Converter efficiently steps down 48V to 5V power. This voltage step-down converter ensures stable output with minimal energy loss in various applications.
-
Reliable Power Output: Delivering 3W isolated DC-DC conversion, it supports up to 666mA current output. The module provides a steady 5V DC output, making it ideal for low-power electronic circuits.
-
Isolation and Safety: The WRB4805S-3WR2 DC-DC power module features 1500VDC isolation, ensuring safety in sensitive circuits. Its isolation protects connected components from voltage fluctuations and noise interference.
-
Compact and Durable Design: Designed for space-constrained applications, this module has a small yet robust structure. It operates efficiently in industrial, telecom, and embedded system environments.
-
Wide Operating Temperature Range: The converter functions reliably between -40°C to +85°C, ensuring performance in harsh conditions. Its high-temperature tolerance makes it suitable for automotive and industrial power solutions.
Specification
| Specification | Details |
|---|---|
| Product Type | DC-DC Converter Module |
| Model | WRB4805S-3WR2 |
| Input Voltage Range | 36V – 75V DC |
| Output Voltage | 5V DC |
| Output Power | 3W |
| Output Current | 666mA (Max) |
| Isolation Voltage | 1500V DC |
| Efficiency | ~80% – 85% |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Ripple & Noise | ≤50mVp-p |
| Mounting Type | Through-Hole (DIP) |
| Weight | ~12g |
| Dimensions | 22.0mm × 9.5mm × 12.0mm |
| SKU |
