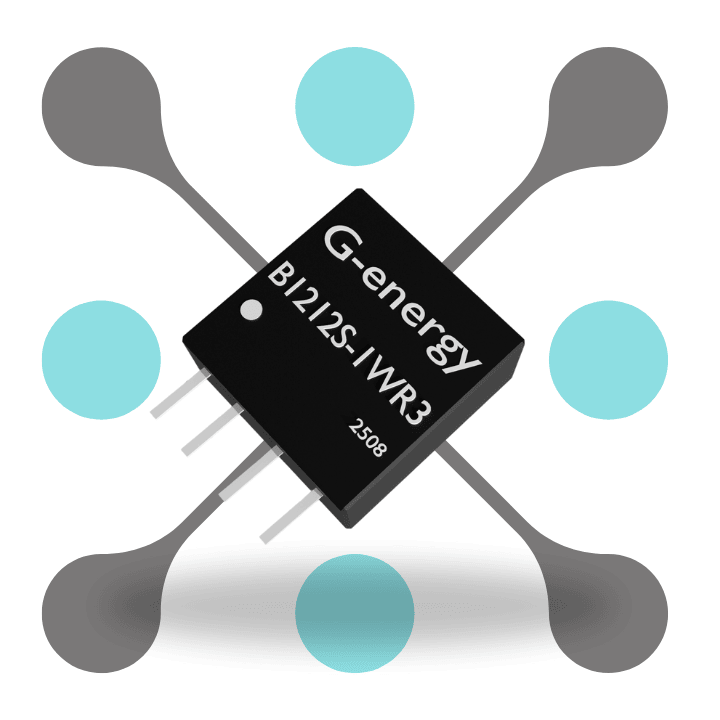

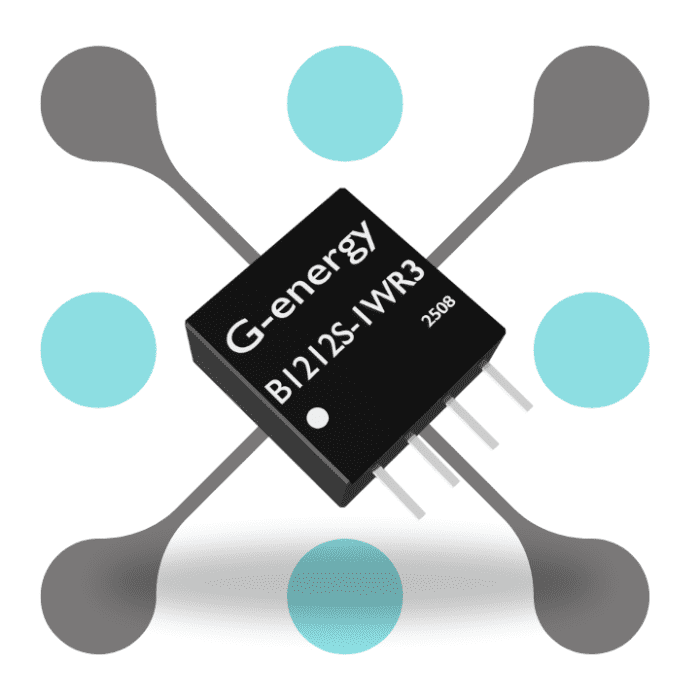

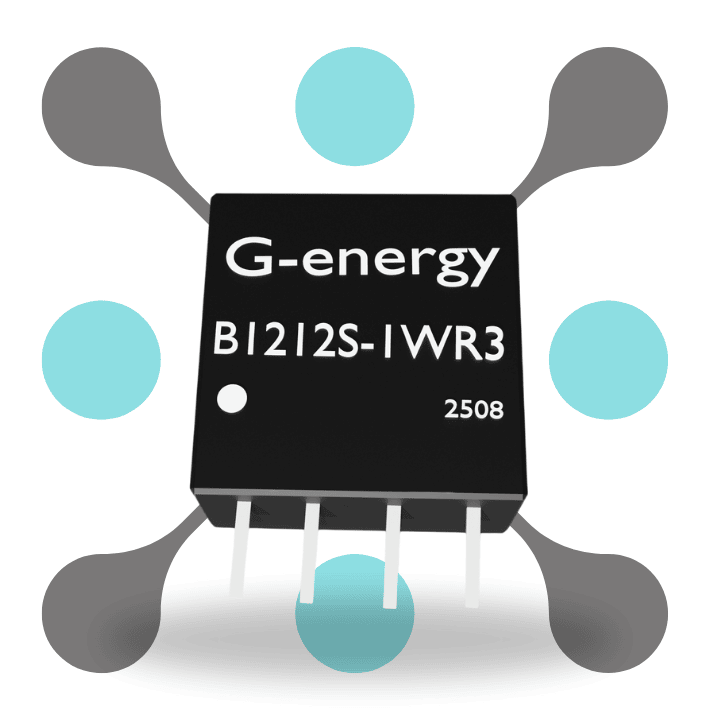

G-energy B1212S-1WR3 12V to 12V 83mA 1W Dc Dc Converter Isolated Module
₹84.00 ( Excluding 18% GST )
Input Voltage | 12V DC |
Output Voltage | 12V DC |
Output Current | 83mA |
Output Power | 1W |
Isolation Voltage | 1500V DC |
In stock
Description
Overview of this G-energy B1212S-1WR3 12V to 12V 83mA 1W Dc Dc Converter
The G-energy B1212S-1WR3 12V to 12V 83mA 1W DC DC Converter offers reliable and stable power conversion for various electronic systems. This B1212S-1WR3 isolated DC DC converter efficiently transforms 12V input to a precise 12V output. With a power rating of 1W, it is suitable for low-power applications that require stable voltage. The 12V to 12V 83mA 1W DC DC converter ensures smooth power delivery with minimal noise and ripple.
Designed for versatility, the B1212S-1WR3 DC DC power module features an isolated design for enhanced safety and efficiency. It operates reliably in industrial, automotive, and communication systems with its compact form factor. The B1212S-1WR3 isolated DC DC converter provides dependable performance while reducing electromagnetic interference. This module is ideal for applications requiring precise, stable, and isolated power conversion.
Features
- Voltage Conversion with Isolation: This B1212S-1WR3 12V to 12V 83mA 1W dc dc converter convert 12V DC input to 12V DC output with 1W power. Provides electrical isolation to ensure safe and stable power transfer.
- Compact and Efficient Design: Features a small, space-saving form factor suitable for compact applications. Its efficient design minimizes energy loss during operation, optimizing performance.
- 1kV DC Isolation for Safety: Offers 1kV DC isolation, ensuring protection against voltage spikes and electrical noise. Safeguards sensitive components from potential damage and interference.
- Wide Temperature Range Operation: Operates reliably in temperatures ranging from -40°C to +85°C. Suitable for industrial, automotive, and other demanding environments with extreme conditions.
- Durable and Long-Lasting: Built with high-quality materials and components for dependable long-term performance. Meets industry standards for reliability, ensuring consistent operation over time.
Specification
Specification | Details |
---|---|
Input Voltage | 12V DC |
Output Voltage | 12V DC |
Output Current | 83mA |
Output Power | 1W |
Isolation Voltage | 1500V DC |
Efficiency | Up to 83% |
Input-Output Isolation | Fully Isolated |
Ripple & Noise | ≤100mV |
Operating Temperature | -40°C to +85°C |
Storage Temperature | -55°C to +125°C |
Package Type | SIP-7 |
Short Circuit Protection | Continuous |
Load Regulation | ±1.5% |
Line Regulation | ±1.2% |
Dimensions | 19.7 x 6 x 10.2 mm |
Weight | 2g |
SKU | RW-DC149 |
Related Module
Input Voltage | Output Voltage | Output Power | Model Name |
---|---|---|---|
5V DC | 5V DC | 1W | B0505S-1WR3 |
5V DC | 5V DC | 1W | B0505S-1WR2 |
5V DC | 12V DC | 1W | B0512S-1WR3 |
12V DC | 5V DC | 1W | B1205S-1WR3 |
12V DC | 3V DC | 1W | B1203S-1WR3 |
12V DC | 12V DC | 1W | B1212S-1WR3 |
24V DC | 3V DC | 1W | B2403S-1WR3 |
24V DC | 5V DC | 1W | B2405S-1WR3 |
24V DC | 12V DC | 1W | B2412S-1WR3 |
5V DC | 5V DC | 1W | F0505S-1WR3 |
5V DC | 12V DC | 1W | F0512S-1WR3 |
5V DC | 3V DC | 2W | B0503S-2WR3 |
5V DC | 5V DC | 2W | B0505S-2WR3 |
5V DC | 9V DC | 2W | B0509S-2WR3 |
5V DC | 12V DC | 2W | B0512S-2WR3 |
5V DC | 15V DC | 2W | B0515S-2WR3 |
5V DC | 24V DC | 2W | B0524S-2WR3 |
