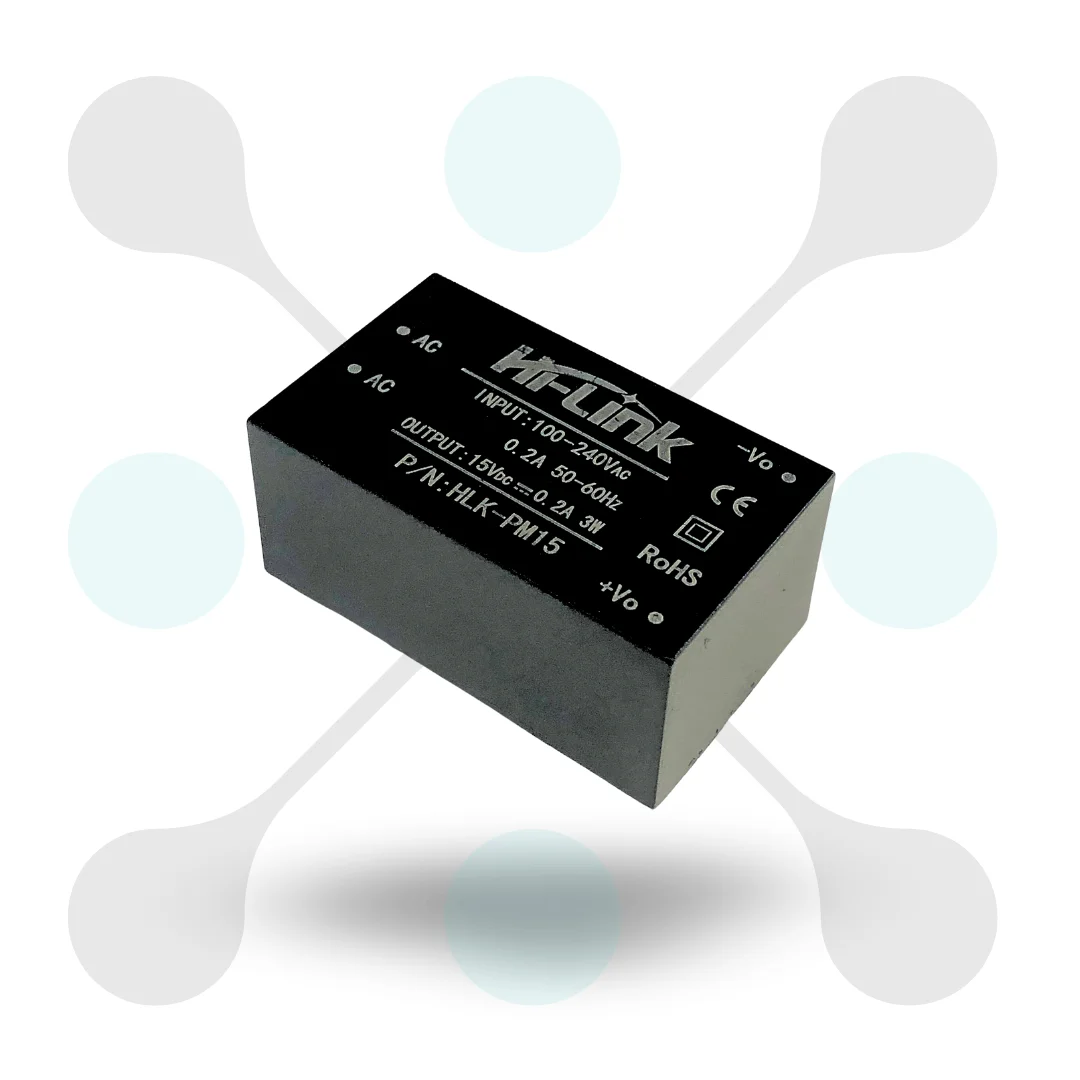

Overview of this Roboway HLK-PM15 3W Ac-DC Converter
Introducing the HLK-PM15 3W Ac-DC Converter by Hi-Link, a versatile power solution for various applications. This compact power module seamlessly transforms 100-240V AC input into a stable 15V DC output. And also deliver 3 watts of stable power. Designed with efficiency and space optimization in mind, the HLK-PM15 is an ideal choice for powering low-energy electronic devices.
The HLK-PM15 3W Ac-DC Power Module stands out with its isolated design. And also provide better safety and protection against electric interference for sensitive electronic device. With a precise 200mA output current, this power supply module is tailored for low-power applications. And also make it perfect for a wide range of electronic from IoT devices to small scale industry device.
Features
- Wide Input Voltage Range: The Hi-Link HLK-PM15 accommodates input voltages from 100V to 240V AC. And also ensure compatibility with various power sources.
- Efficient Isolated Design: With 3W output power and 200mA current, it also offer efficient and isolated power conversion, suitable for diverse applications.
- Compact and Lightweight: The module’s compact dimensions (34mm x 20mm x 15mm) and low weight (10g) also make it easy to use into less space project.
- Overload and Short Circuit Protection: Equipped with built-in protections for overload and short circuit & enhance system reliability and safety.
- Certified Safety Standards: Complies with IEC60950-1 safety standards & also provide guarantee for safe & smooth operation in electronic device and system.
Specification
| Specification | Value |
|---|---|
| Input Voltage Range | 100-240V AC |
| Output Voltage | 15V DC |
| Output Power | 3W |
| Output Current | 200mA |
| Efficiency | Upto 91% |
| Isolation Voltage | 3kV |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Input Over voltage Protection | Yes |
| Dimensions | 34mm x 20mm x 15mm |
| Weight | 10g |
| Certification | UL, CE |
| SKU | RW-745 |
