Description

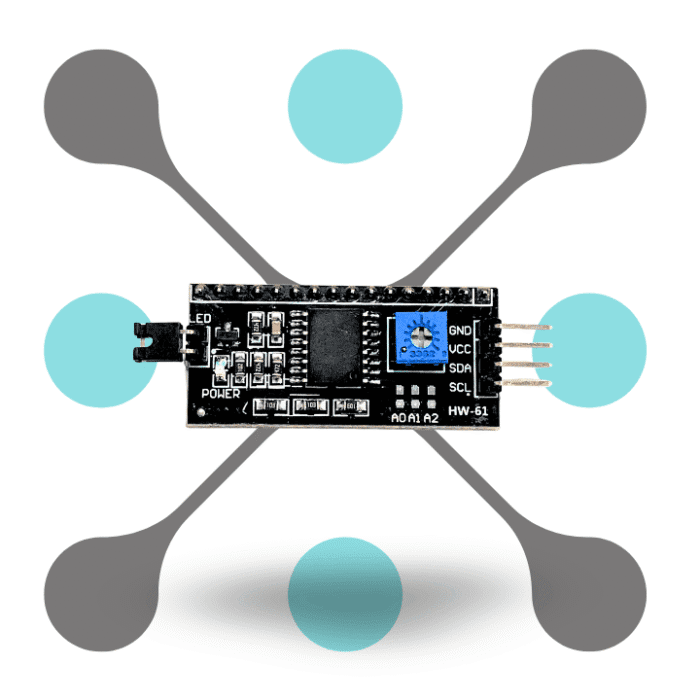

Overview of this IIC-I2C Serial Interface Adapter Module
Introducing Roboway IIC-I2C serial interface adapter module with upto Up to 400 kHz communication speed for serial data display. This module operate on a 5V power supply and is compatible with 16×2 LCD displays & provide easy to use serial I2C control using the PCF8574 chip.
With its adjustable backlight and contrast setting via potentiometers. This module also offers flexibility in display customization. It also come equipped with 2 IIC interface 7 allow easy connection via Dupont Line or IIC dedicated cable & make it perfect for various device.
It is especially design for efficiency, this module also enable data display using only 2 wire & make it perfect for project need less wiring. And its jumper enabled backlight control and potentiometer based contrast adjustment also ensure optimal display visibility and clarity.
Features
- 5V Power Supply Compatibility: The IIC-I2C Serial Interface Adapter Module operates on a 5V power supply. This compatibility ensure easy integration with standard power sources.
- Backlight and Contrast Adjustment: Backlight and contrast levels are easily adjustable via onboard potentiometers. Users can easily customize display setting for optimal visibility and readability.
- Serial I2C Control: It supports serial I2C control of the LCD display using the PCF8574 chip. This enables convenient and efficient data display using the I2C protocol.
- Compatibility with 16×2 LCD: Specifically designed for compatibility with 16×2 LCD displays. It ensure smooth integration with common LCD configurations for diverse device.
- Compact and Versatile Interface: The module also provide a compact I2C interface solution perfect for various project. Its compatibility with multiple communication protocols, including I2C, IIC, TWI, and SPI, enhance its versatility.
- Expandable Configuration: It also support the connection of up to 8 modules on a single I2C bus. Users can change module addresses via solder jumpers & allow for scalable and expandable setup.
Specification
Specification | Description |
---|---|
Communication Protocol | I2C (Inter-Integrated Circuit) |
Interface | IIC (Inter-Integrated Circuit) |
Operating Voltage | Typically 3.3V or 5V (Dependent on model) |
Communication Speed | Up to 400 kHz |
Supported Devices | Various I2C-compatible devices |
Pull-up Resistors | On-board pull-up resistors |
Compatibility | Compatible with microcontrollers and single-board computers |
Addressing | Selectable address via solder jumpers or hardware pins |
Dimensions | Varies based on specific model |
Operating Temperature Range | -40°C to 85°C (Typical) |
Voltage Level Translation | Built-in level shifters (3.3V to 5V or vice versa) |
Power Consumption | Low |
Mounting | Through-hole or surface mount |
Communication Range | Short-range communication |
Additional Features | Interrupt pin for event-driven communication |
SKU | RW-495 |
