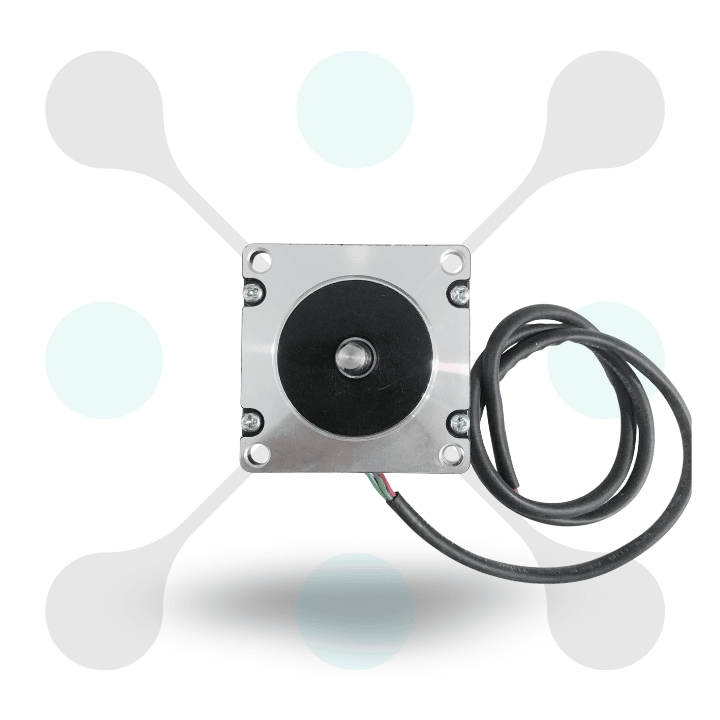

Nema23 Hybrid Servo Motor, 2-Phase, 10kg-cm Torque, 1000-Line Encoder Included

Overview of this 2-Phase 10kg-cm Torque Nema23 Hybrid Stepper Motor 1000 Line Encoder

The Roboway Nema23 Hybrid Stepper Motor delivers high precision and power with its 2-phase design and 10kg-cm torque. This Nema23 2-Phase 10kg-cm Stepper  Motor is ideal for demanding applications, offering smooth and accurate motion control. Equipped with a 1000-line encoder, this hybrid Stepper  motor provides enhanced feedback for precise positioning.

Designed for reliability, the Nema23 Hybrid Stepper  Motor ensures optimal performance in industrial automation and robotics. The Inbuild 1000-line encoder allows for accurate motion tracking, making the Nema32 Stepper  Motor with 1000 Line Encoder perfect for complex motion tasks. Choose Roboway for robust, efficient, and precision-driven Stepper motor solutions.

Features

High Torque Output: The motor delivers 10kg-cm of torque, ideal for demanding applications. This ensures powerful performance for precise control and movement.

Integrated 1000 Line Encoder: The built-in encoder provides accurate feedback for positioning. It enhances the motor’s precision in controlling speed and movement.

Efficient 2-Phase Design: The motor operates on a 2-phase hybrid system for smooth motion. This design offers better stability and efficiency in various automation setups.

Durable and Robust Build: Constructed with high-quality materials, it ensures long-lasting durability. It withstands heavy loads and continuous operation in industrial environments.

Wide Application Compatibility: Suitable for CNC machines, robotics, and automation systems. Its versatile design supports integration into various high-precision devices.

Specification

Model: Nema23 Hybrid 2-Phase Stepper  Motor

Motor Type: Hybrid Stepper Stepper Motor

Holding Torque: 10 kg-cm

Phase: 2-Phase

Encoder Type: 1000 Line Incremental Encoder

Step Angle: 1.8°

Rated Voltage: 24V – 48V

Current per Phase: 2.8A

Resistance per Phase: 1.2 Ohms

Inductance per Phase: 3.5 mH

Shaft Diameter: 6.35 mm

Motor Length: 76 mm

Mounting Flange Size: (57 x 57 mm)

Encoder Resolution: 1000 PPR (Pulses Per Revolution)

Application: CNC machines, 3D printers, Robotics, Automation

SKU: RW-M065
