Description

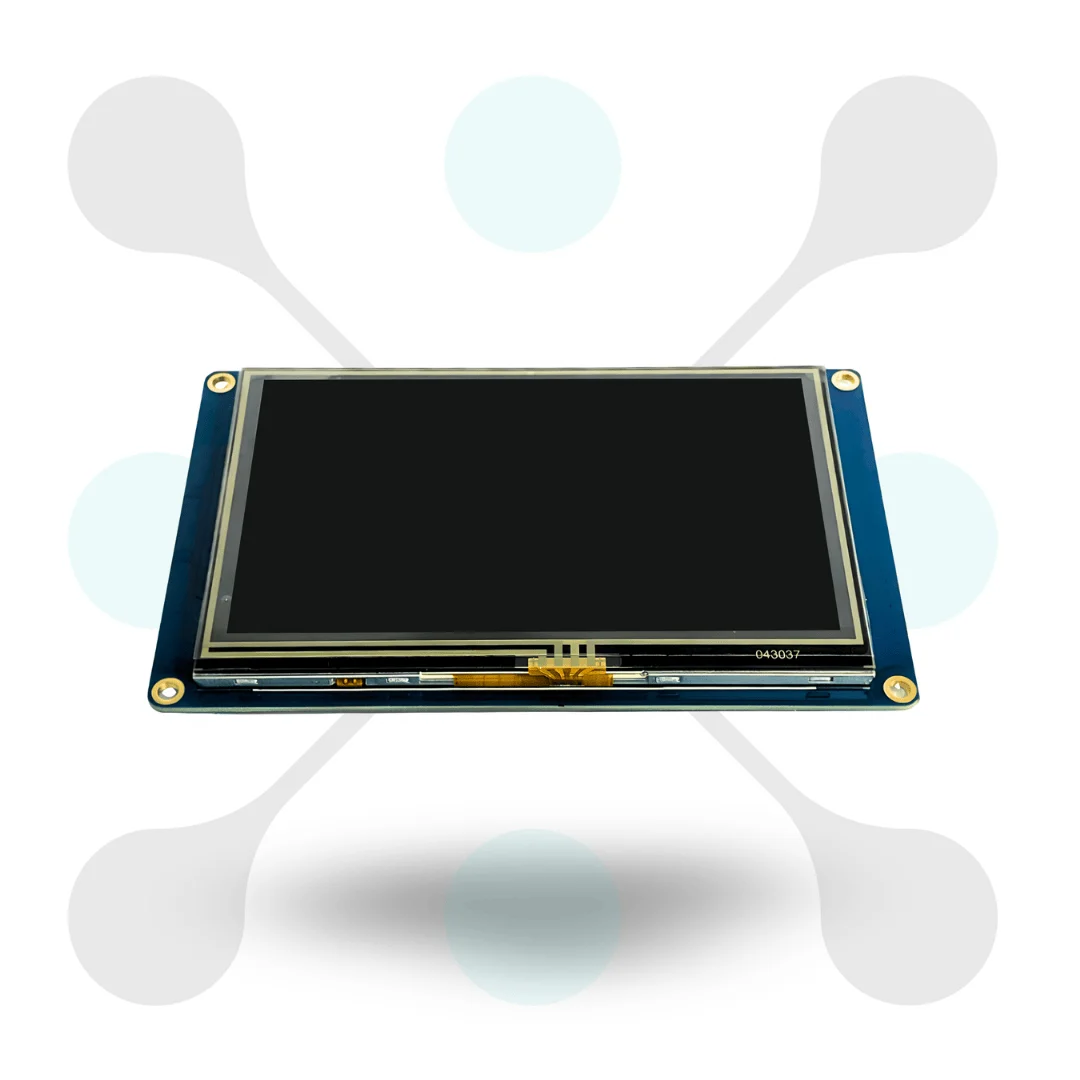

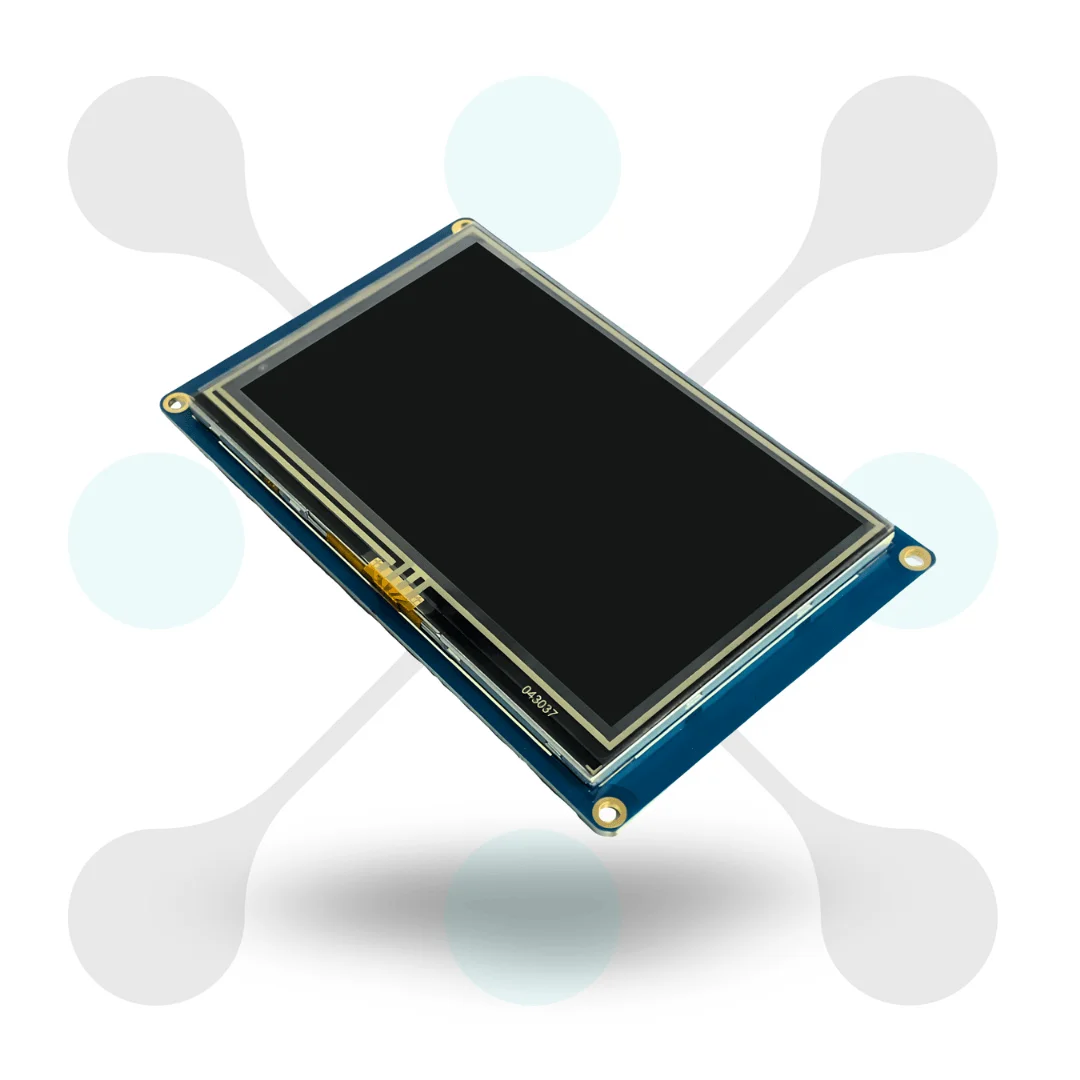

Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display includes a hardware part (a series of TFT boards) and a software part (theNextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Its easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART
Features of Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display :
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
- 480 x 272 Resolution
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- Easy 4 pin interface to any TTL Serial Host
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card for firmware upgrade
- Visual Area:95.04mm(L)53.86mm(W)
- Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
- 5V250mA power consumption
- CE/EMC, RoHS certified (certificates)
RW-DIS17
Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display-4
Specifications of Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display :-
| Model | Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display |
| Display Type | 011R(R:Resitive Touchscreen) NX4827T043 |
| Operating Voltage (VDC) | 4.75 ~ 7 |
| Max. Operating Current (mA) | 250 |
| Net weight (gm) | 93 |
| Touch Type | Resistive |
| Colors | 65K (65536) |
| Recommended Power Supply | 5V, 500mA, DC |
| Working Temperature Range (C) | -20 to 70 |
| Working Humidity Range | 10% to 90% RH |
| USB Interface | No |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features |
| Flash Memory | 16 MB |
| RAM | 3584 BYTE |

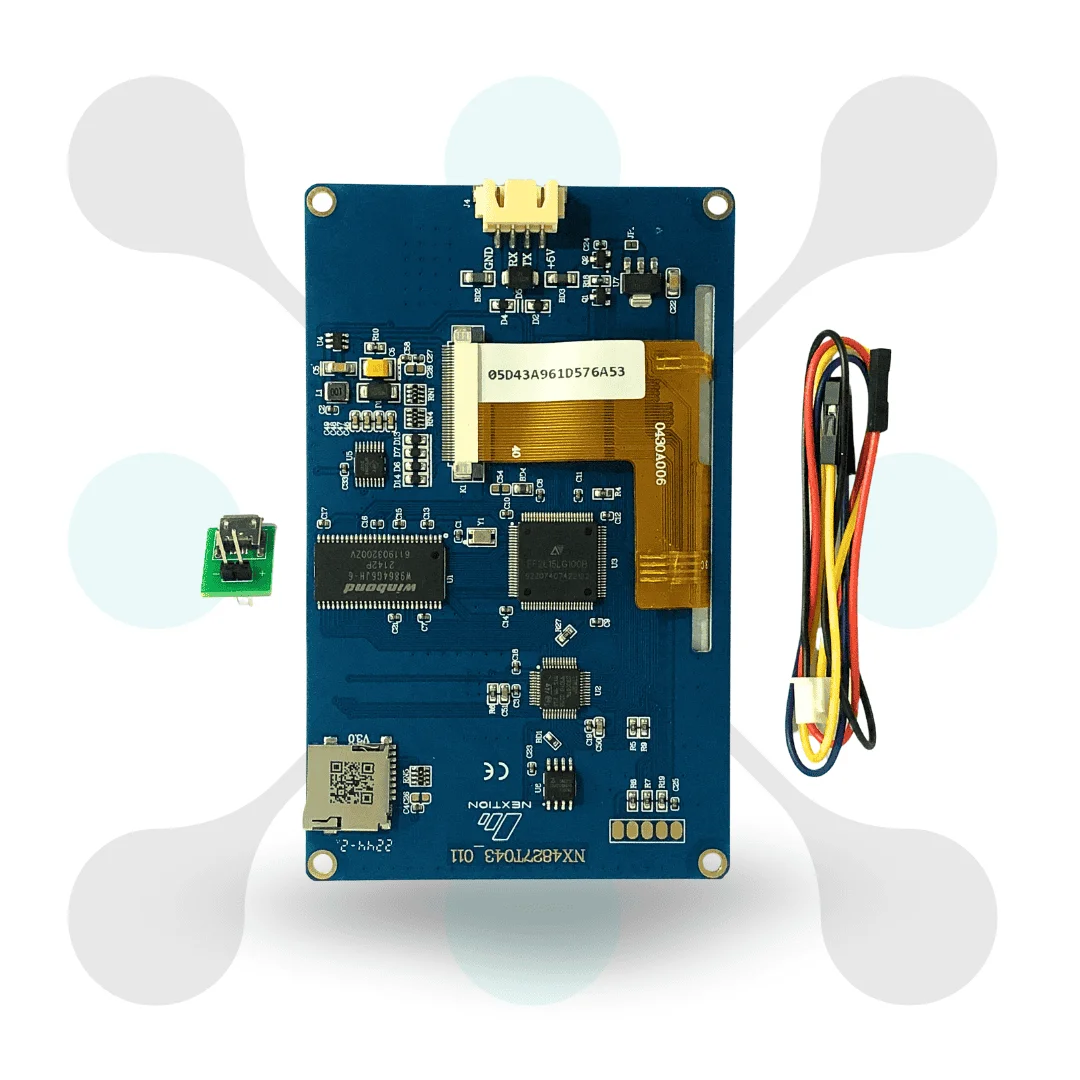

Package Contains :
1 x Nextion 4.3 inch BASIC NX4827T043 TFT LCD Touch Display
1 x Connecting Wires
1 x Power Supply Test Board
