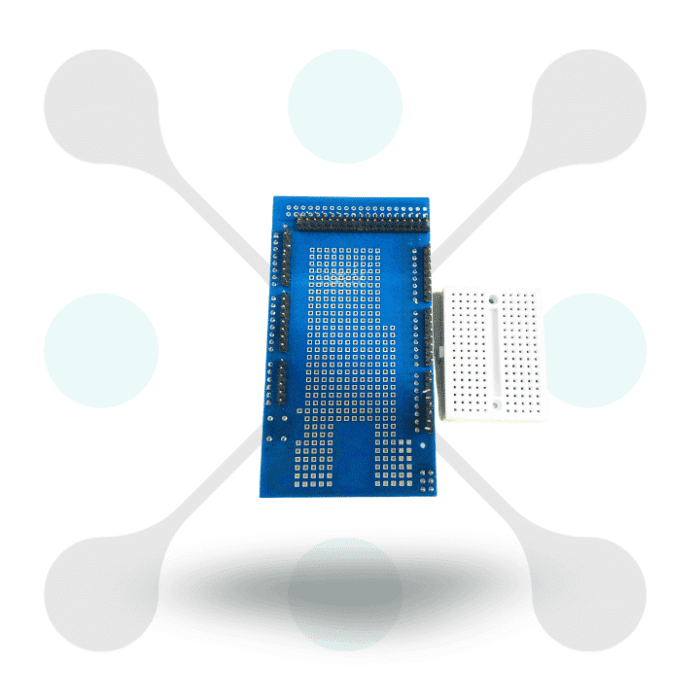

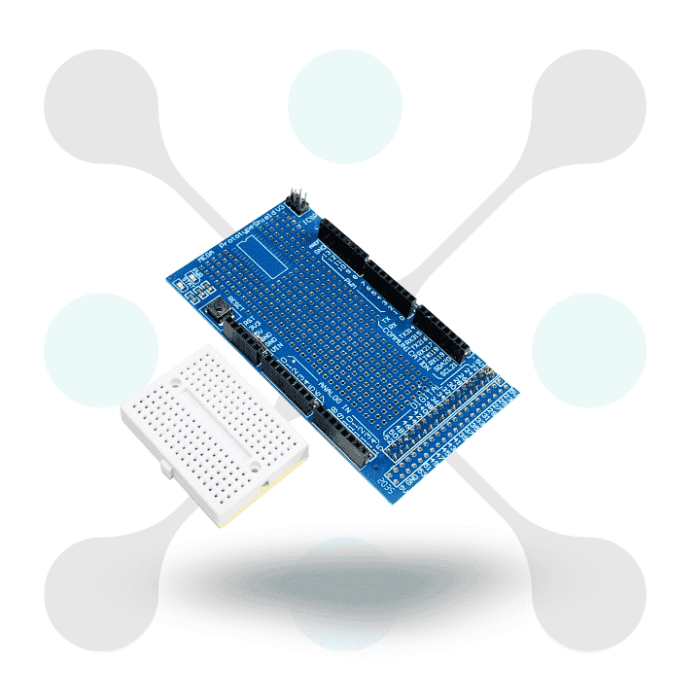

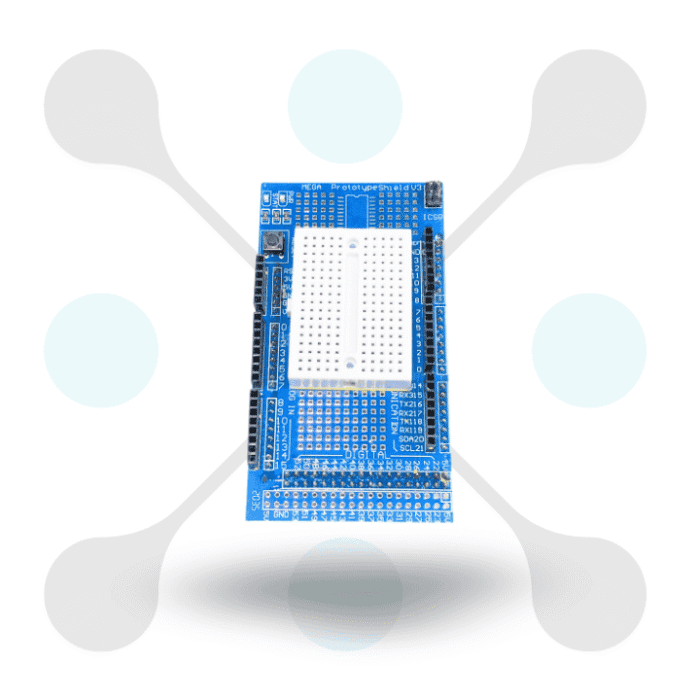

Overview of this Prototype Shield V3.0 for Arduino Mega With Mini Breadboard
Introducing Roboway Prototype Shield V3.0 for Arduino Mega with mini breadboard to enhance your prototyping experience at best price in India. This V3.0 Prototype Shield for Arduino Mega simplify the process of building and testing electronic circuit. Equipped with a Prototype Shield with mini Breadboard, it provide a versatile workspace for your project. The V3.0 Prototype Shield for Arduino Mega ensure easy component connection and modification without soldering.
This shield is an ideal addition to your Arduino setup & feature a layout that fits perfectly on the Arduino Mega. This Prototype Shield V3.0 for Arduino Mega offers effiecient space for attaching various modules and sensor. Its integrated mini breadboard support quick circuit assembly and adjustment. Elevate your prototyping and development with the V3.0 Prototype Shield for Arduino Mega & combine convenience and functions.
Features
- Enhanced Prototyping Capability: This prototype shield allows easy prototyping and testing of custom circuits with Arduino Mega. It simplify the process of integrating sensors, modules, and other component.
- Mini Breadboard Included: This Prototype Shield V3.0 for Arduino Mega come with a mini breadboard that fits perfectly onto the shield. This breadboard provides a reusable and solder-free platform for rapid circuit assembly.
- Durable and High-Quality Design: It is specially made from high quality material to ensure durability and longevity. This robust build can withstand frequent handling and development environments.
- Comprehensive Pin Access: Provide complete access to all Arduino Mega pins for versatile connection. This feature ensure flexible and creative prototyping for diverse electronic project.
- Compatible with Arduino Mega Series: Specifically designed to fit all Arduino Mega versions seamlessly. The shield enhances the overall functionality of your Arduino Mega development board.
Specification
| Specification | Details |
|---|---|
| Compatibility | Arduino Mega 2560 and Mega ADK |
| Shield Version | V3.0 |
| Mini Breadboard Size | 170 Tie Points (SYB-170) |
| Breadboard Adhesive Backing | Yes, with self-adhesive backing for secure mounting |
| PCB Material | High-quality FR4 fiberglass |
| Number of Pins | Access to all 54 digital I/O pins and 16 analog inputs |
| Proto Area | Solderable area for custom circuits and components |
| Onboard LEDs | Power and Status LEDs |
| Reset Button | Dedicated reset button for Arduino Mega |
| ICSP Header | Yes, for programming or SPI communication |
| General-Purpose Pads | Multiple pads for VCC, GND, and 5V connections |
| Breadboard Color | White or other variants |
| Stackable Headers | Yes, allows stacking additional shields |
| Power Rails | Dedicated 5V and GND rails for easy power distribution |
| Dimensions | 10.1 cm x 5.4 cm (shield size) |
| SKU | RW-1326 |
