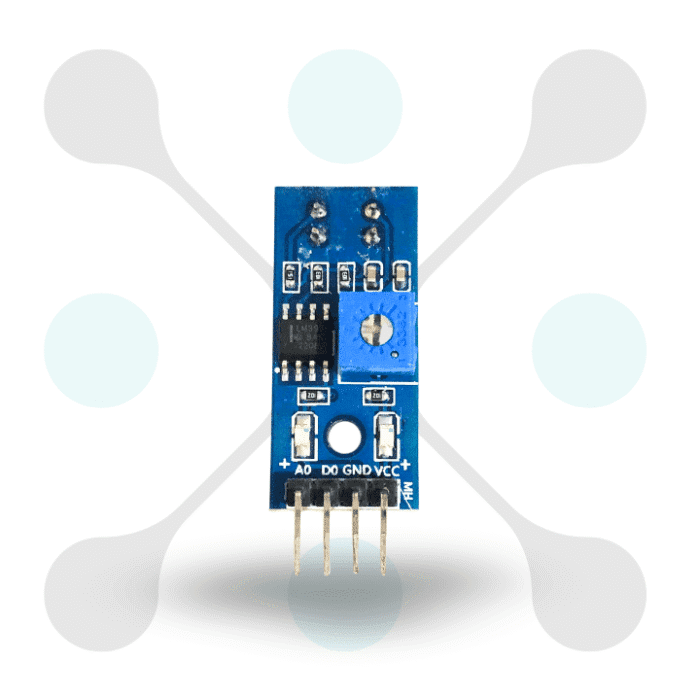

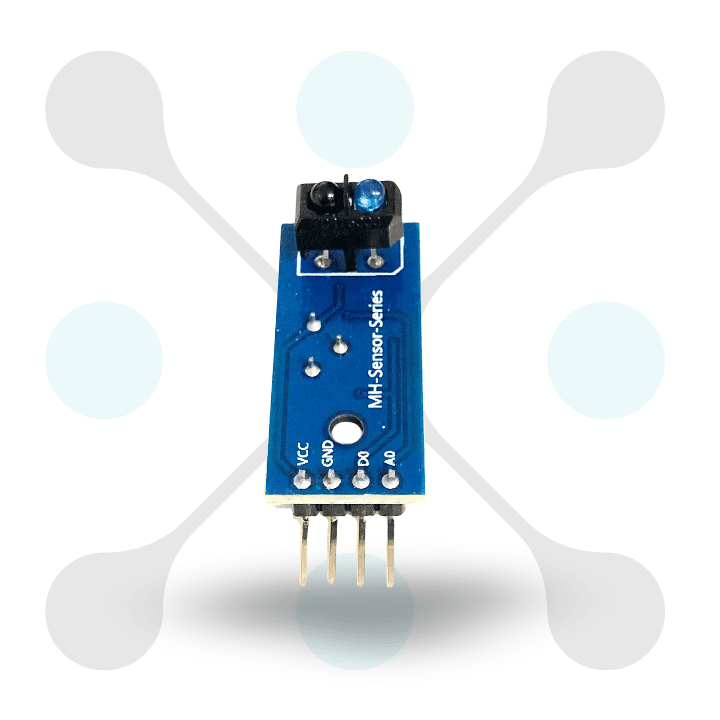

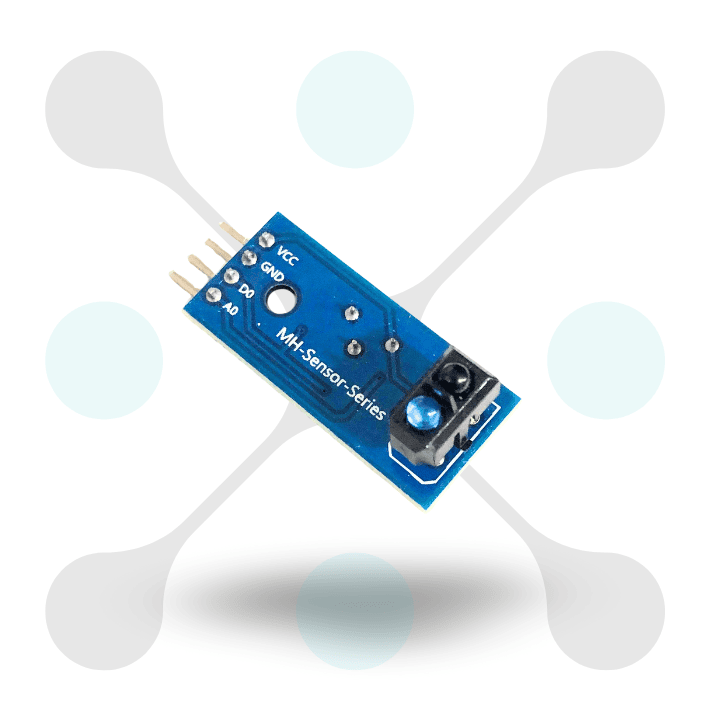

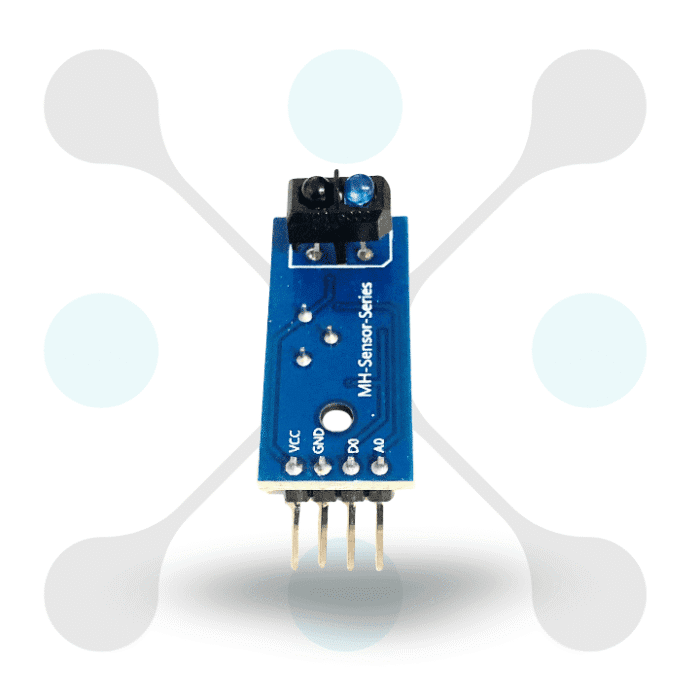

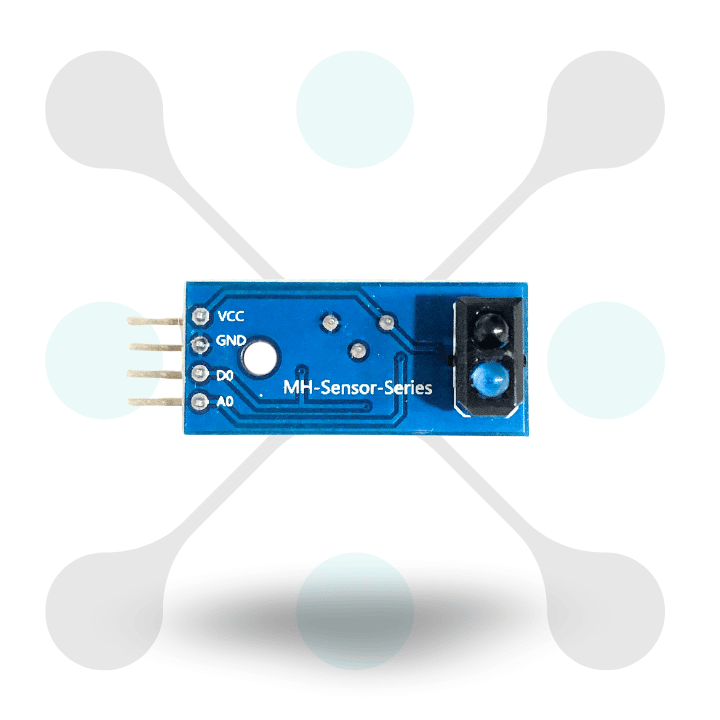

Introducing Roboway TCRT5000 Dual Line Tracking Infrared IR Sensor designed to enhance robotics and automation project. This advanced sensor feature dual line tracking to ensure smooth navigation and line following task. The TCRT5000 Dual Line Tracking IR Sensor offers trusted detection of line pattern and obstacles for smooth operation.
The TCRT5000 Dual Line IR Sensor Module is designed with high quality component for best functions and resilience. Its dual channel design work in tandem to deliver precise feedback and tracking function. It also allow your project to navigate complex paths and maintain accurate line tracking.
Designed for ease of use and compatibility, the IR Sensor Module TCRT5000 Dual Line fit easily into various development environment. Its robust construction ensures long lasting performance and smooth operation. Choose the TCRT5000 Dual Line Tracking Infrared IR Sensor to enhance your project with precise line tracking and navigation.
Features
- Dual-channel infrared sensor: The module features two IR sensors for accurate line tracking. This setup also allow easy detection of line and edge for smooth navigation.
- TCRT5000 sensor: This module is also built with TCRT5000 sensors to offer high sensitivity and performance. These sensors also provide smooth tracking across various surface and light condition.
- Adjustable sensitivity: Each sensor sensitivity can be adjusted for high performance. It also ensure effective tracking even in harsh environment with changing light level.
- Compatible with Arduino and other microcontrollers: The module also compatible with Arduino and similar microcontrollers & allow for easy programming and control.
- Digital and analog outputs: The module provides both digital and analog outputs for each sensor. This versatility also enable flexible data handling and nuanced control in your application.
- Compact and lightweight design: The module compact size also allow for easy installation on various platform. This design is also perfect for small scale robotic project and less space device.
- Low power consumption: Designed for energy efficiency, the module conserve power for extended use. This is particularly beneficial for battery power project and mobile robot.
Specification
| Specification |
Details |
| Main Chip |
LM393 |
| Sensor |
TCRT5000L |
| Infrared Reflection Sensor |
Designed with reflected IR sensor and indicator light |
| Sensitivity Control |
Built-in potentiometer for adjusting sensitivity |
| Operating Voltage |
3.5V – 5V DC |
| Operating Current |
>15 mA |
| Output Form |
Digital switch output (0 and 1) |
| Signal Detection |
Signal detection sensitivity can be adjusted |
| Output Instructions |
On-board signal output instructions; output high effective signal |
| Detection Distance |
1 mm – 25 mm |
| Focal Distance |
2.5 mm |
| Supported Voltage Input |
5V / 3.5V |
| PCB Size |
32 mm x 14 mm (L x W) |
| Total Size |
38 mm x 14 mm x 18 mm (L x W x H) |
| Material |
Electric part |
| Application |
Infrared Obstacle Avoidance |
| SKU |
RW-123 |
