Description

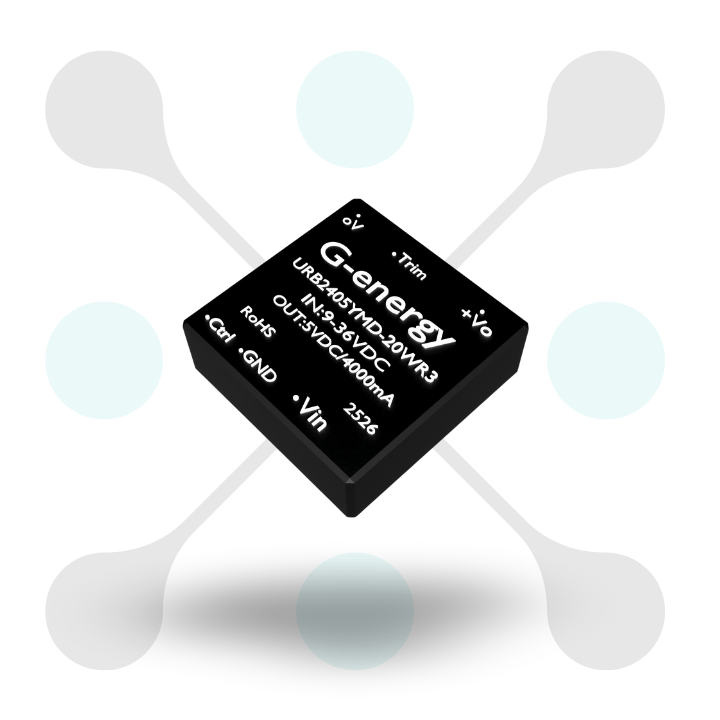

Overview of this Hi-link URB2405YMD-20WR3 dc-dc power module

Introducing the Hi-link URB2405YMD-20WR3, a cutting edge DC-DC power module that delivers efficient and high performance. This versatile converter easily transforms 24V input to a stable 5V output. And also make it an ideal choice for a wide range of applications. With a robust 20W power capacity and a 91% transfer efficiency. This Hi-link URB2405YMD-20WR3 converter also ensure optimal power conversion for your electronic devices.

The Hi-link URB2405YMD-20WR3 stands out as a top tier DC-DC converter. And also provide a smooth and dependable solution for various power supply needs. Engineered for efficiency, this module boasts a remarkable 91% transfer rate, ensuring minimal energy loss during the conversion process. Whether you’re use it in industry device or electronic gadgets. This Hi-link URB2405YMD-20WR3 converter also guarantee a stable and efficient power source.

Upgrade your power supply system with the Hi-link 24V to 5V 20W DC-DC converter, URB2405YMD-20WR3. This compact yet powerful module delivers a steady 5V output, making it perfect for applications need a lower voltage. With a focus on reliability and performance, the Hi-link URB2405YMD-20WR3 is your go-to choice for a 24V to 5V 20W buck converter. Trust in Hi-link for superior power conversion solutions.

Features

Efficient Power Conversion: The Hi-link URB2405YMD-20WR3 excels with a remarkable 91% efficiency rate, ensuring minimal energy loss during power conversion. Experience top-notch performance and reliability in every electronic application.
Versatile Input Compatibility: Designed to cater to diverse needs, this DC-DC converter flawlessly transforms 24V input into a stable 5V output. The Hi-link URB2405YMD-20WR3 is your go-to choice for compatibility across a spectrum of electronic devices.
Robust 20W Power Capacity: Engineered for power-hungry applications, this module boasts a stable 20W capacity, providing a steady and consistent 5V output. Count on the Hi-link URB2405YMD-20WR3 for robust power delivery in various scenarios.
Compact and Space-Efficient Design: Despite its powerful capabilities, the URB2405YMD-20WR3 features a compact form factor, making it perfect for applications with limited space constraints. Enjoy the benefits of space efficiency without compromising on performance.
Hi-link Quality Assurance: With the Hi-link URB2405YMD-20WR3, you not only get cutting-edge technology but also the assurance of the Hi-link brand’s renowned quality. Trust in superior engineering for all your power conversion needs.

Specification

Specification	Details
Input Voltage	24V
Output Voltage	5V
Power Capacity	20W
Output Current	4000mA (4A)
Efficiency	91%
Input-Output Isolation	1500VDC
Operating Temperature Range	-40°C to +85°C
Input Undervoltage Protection	Yes
Overcurrent Protection	Yes
Short Circuit Protection	Yes
Output Ripple and Noise	50mVp-p
Dimensions	32.0mm x 20.0mm x 10.0mm
SKU	RW-DC032

Main use of this Hi-link 24V to 5V 20W isolated buck converter

Electronics Manufacturing: Ideal for powering various electronic devices during the manufacturing process. And also ensure a stable 5V output for stable performance.
Embedded Systems: Suited for embedded systems that require a compact and smooth power source. And also offer smooth 24V to 5V conversion with a 20W power capacity.
Industry Automation: A trusted choice for industry automation applications. And also provide efficient power conversion in environments with diverse electronic equipment.
Powering IoT Devices: Perfect for IoT (Internet of Things) devices that operate on lower voltage need. And also maintain a steady 5V output for seamless connectivity.
DIY Electronics Projects: Enthusiasts and hobbyists can benefit from the URB2405YMD-20WR3 in their DIY electronics projects. Thanks to its compact design and versatile 24V to 5V conversion capabilities.

Input Characteristic of Hi-link 24V to 5V 20W dc dc converter

Hlk-URB2405YMD-20WR3 24V to 5V 20W 4000mA DC to DC power supply module	Working conditions	Unit	Notes
Related input voltage	24	Vdc
Input voltage range	9-36	Vdc
Maximum input current	≤2.3	A
Reflection ripple current	40	mA	DC12V rated input voltage series
Impulse voltage	≤50	Vdc
Starting voltage	9	Vdc
Input undervoltage protection	—	Vdc
Start-up delay	1	ms	Rated input voltage and constant resistance load
Input filter type		PI version
Hot plugged		Non-support

Output Characteristics(5V/4000mA)

Project name	Technical requirement	Unit	Notes
No load rated output voltage of Hlk-URB2405YMD-20WR3 24V to 5V 20W 4000mA DC to DC power supply module	5V±2%	Vdc
Short-time maximum output current	≥4200	mA
Rated output current	4000	mA
Voltage regulation	±0.5	%
Load regulation	±1	%
Transfer efficiency	Vin=24Vdc, output full load 90	%
Output ripple and noise (mVp-p)	≤100 Pure resistance load, 20MHz bandwidth, peak to peak value	mV
Output over-current protection	the maximum load 110-200%	Vdc
Insulation voltage	Input- output, test in 1 minute, leakage current less than 1mA/1500V	–
Insulation resisitance	Input- output, insulation volaltge 500VDC/1000MΩ	MΩ
Isolation capacitance	Input- output, 100KHz/0.1V 1000pF	–

Typical Application Circuit of Hi-link URB2405YMD-20WR3 dc-dc power module

Relevant Power Module

Hi-link Power Module	Input & output	Current & power	Buy Link
Hilink URB1D12YMD-10WR3 110V to 12V buck converter	110V to 12V	10W 833mA	Buy now
URB2405YMD-10WR3 24v to 5V 10W buck converter	24V to 5V	10W 2A	Buy now
Hi-link URB2405YMD-20WR3 dc-dc power module	24V to 5V	20W 4A	Buy now
Hi-link B0524S-1WR3 dc-dc converter	5V to 24V	1W 42mA	Buy now
Hi link B2405S-1WR3 isolated dc converter	24V to 5V	1W 200mA	Buy now
hi-link K7803-500R3 3.3V isolated dc converter	78V to 3.3V	0.5W	Buy now
Hi-link B2405S-2WR3 isolated dc converter	24V to 5V	2W 400mA	Buy now
Hi-link B2403S-2WR3 isolated dc converter	24V to 3V	2V 666mA	Buy now
Hi-link B1209S-2WR3 isolated dc converter	12V to 9V	2W 222mA	Buy now
