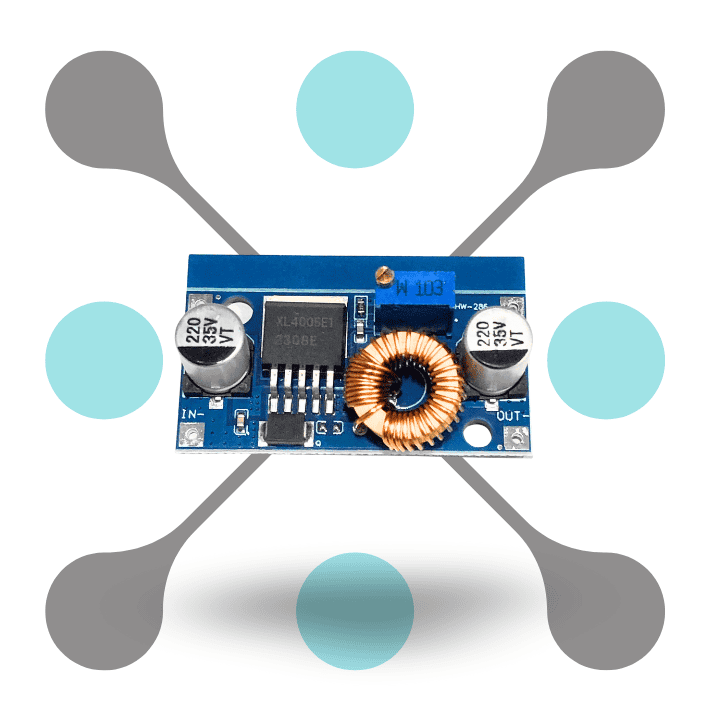

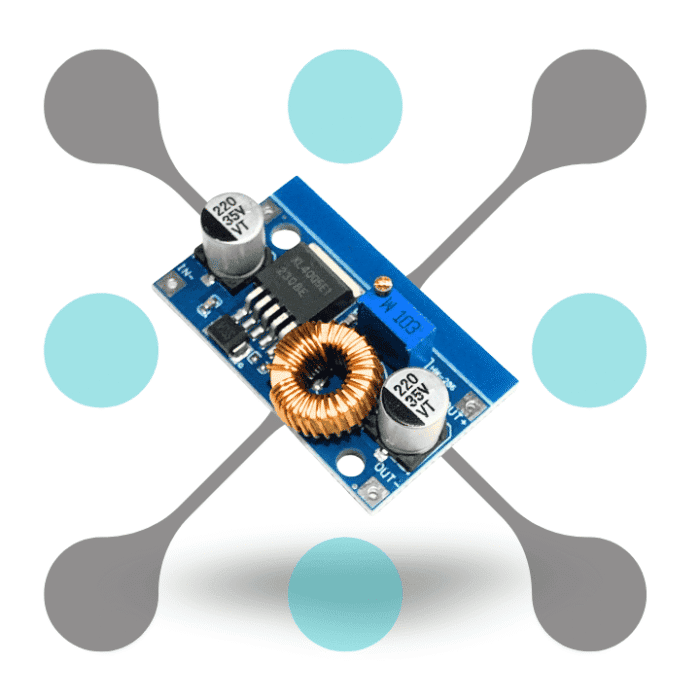

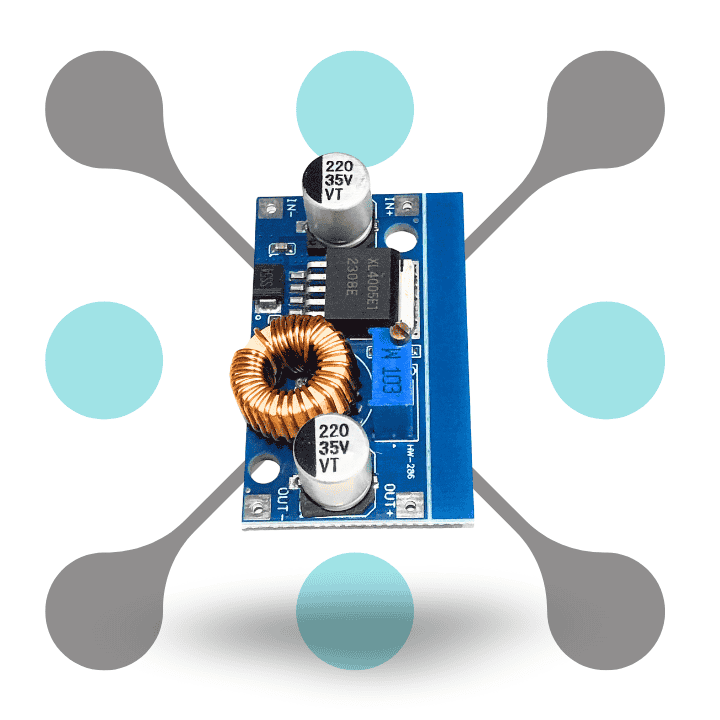

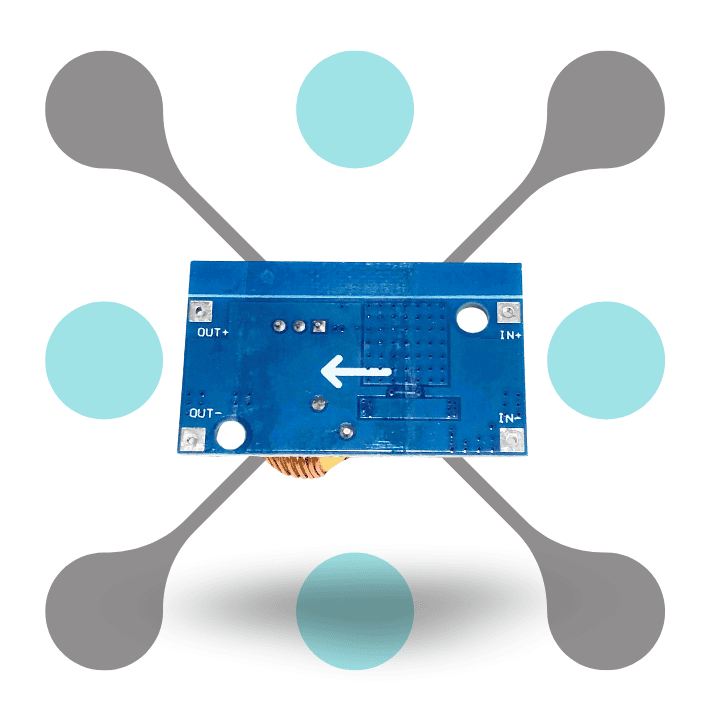

The XL4005 is a DC-DC buck converter module, designed to step down voltage from a higher input voltage to a lower output voltage. Here’s a description of the features and functionality of the XL4005 DC-DC Adjustable Step-Down Buck Power Supply Module:
- Input Voltage Range:
- The module is designed to accept input voltages within the range of 5 to 32 volts DC. This flexibility makes it suitable for a variety of applications.
- Output Voltage:
- The output voltage is adjustable, allowing you to set the desired voltage within a certain range. The specific adjustable range may vary depending on the module version.
- Adjustable Output Current:
- The module typically has a maximum output current rating of 5 amperes (5A), allowing it to supply a significant amount of current to power electronic devices.
- Buck Converter:
- The XL4005 is a buck converter, which means it steps down the input voltage to a lower output voltage. This is achieved through the use of an inductor, a diode, and a control circuit.
- Adjustable Potentiometer:
- The module often includes an onboard adjustable potentiometer that allows users to set the desired output voltage. Care should be taken while adjusting to avoid overloading connected devices.
- Buck converters, in general, are known for their efficiency in power conversion. The XL4005 is designed to operate with high efficiency, minimizing energy loss during the voltage conversion process.
- Heat Sink:
- Some XL4005 modules come with a built-in heat sink or a designated space for attaching an external heat sink. This is important to dissipate heat generated during operation.
- Overcurrent Protection:
- The module may include overcurrent protection to prevent damage to the module and connected devices in case of a current surge.
- Input and Output Capacitors:
- The module typically includes input and output capacitors to stabilize the voltage and reduce noise.
- Compact Size:
- The XL4005 module is usually compact, making it suitable for applications where space is limited.
- The module can be used in various DIY projects, electronic prototypes, or as part of a power supply system for small electronic devices.
- LED Indicators:
- Some XL4005 modules may have LED indicators to show the operational status, such as power on/off or an overcurrent condition.
Before using the XL4005 module, it’s important to consult the datasheet or product manual provided by the manufacturer. This documentation will provide specific details about the module’s capabilities, operating parameters, and guidelines for correct usage and adjustment.
