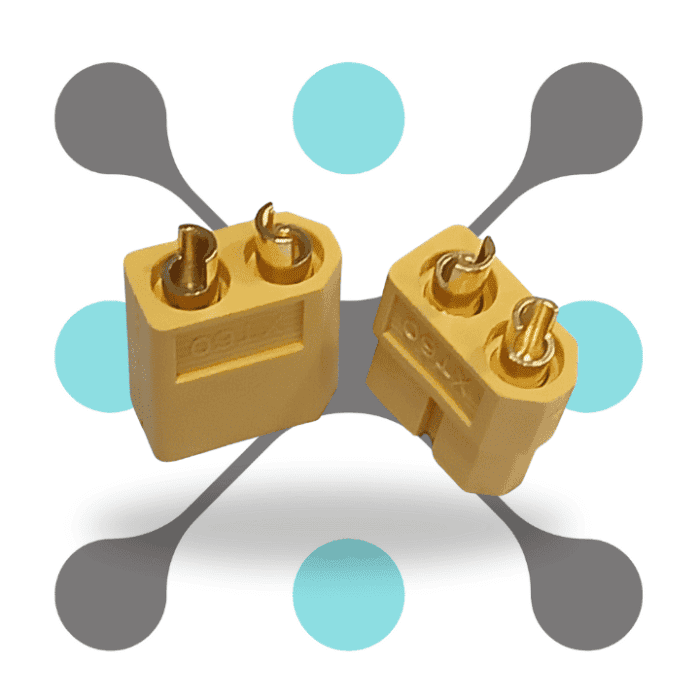

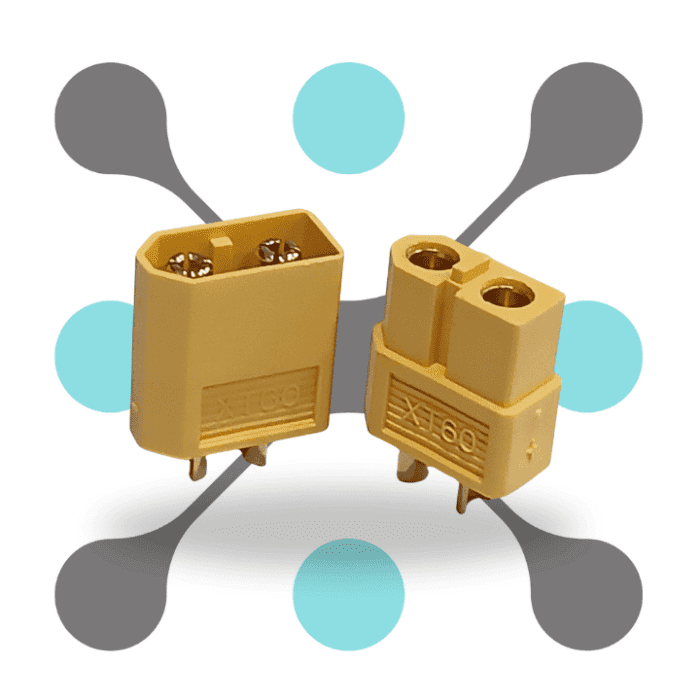

XT60 Male-Female Connector Pair for Lipo Battery

These XT60 Connectors Male/Female Pair are excellent W.S. Deans T-connector replacements. They are made from high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector. The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 65A constant.

Nylon XT60 more reliable and a better quality connection than Deans T-Connectors. Nylon XT60 provides better protection from short-circuiting the batteries. These connectors are made from high-temp nylon with gold-plated spring pins or sockets moulded in

RW-288

Specifications:-

Pole Format: 2P.
 Pitch: 7.2mm.
 Type: Plug/Socket Pair.
 Voltage Rating: 500Vdc.
 Current Rating: 30A.
 ContactResistance:0.50mΩ
 Cable Spec: 12AWG.
 Surge Current: 60A.
 Contact Material: Brass.
 Housing Material: Polyamide.
 Contact Plating: Gold.
 Flame-Retardant Level: UL94V0.
 Operating Temperature: -20~+120°C.

Package Includes :

1 x XT60 Male-Female Connector Pair.
