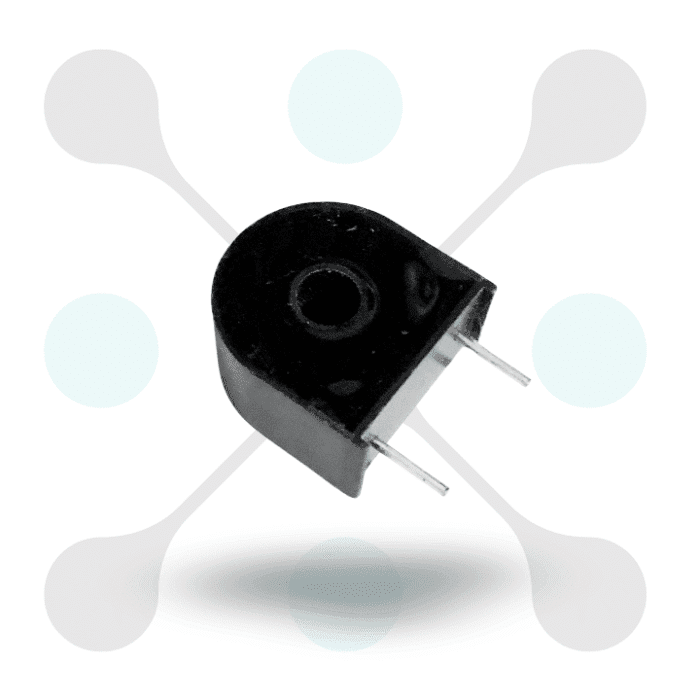

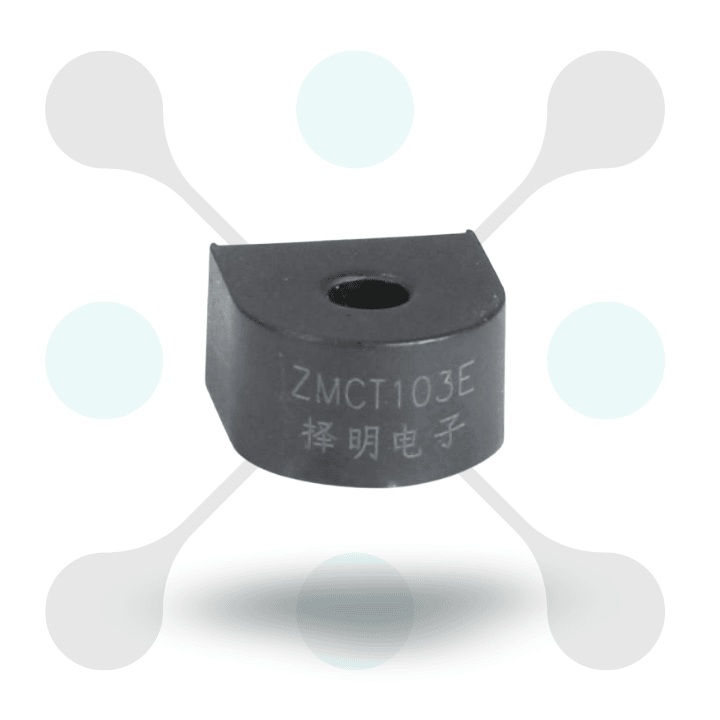

Overview of this zmct103e 40A pcb mount current transformer
Introducing roboway zmct103e 40a pcb mount current transformer with less than 3mm pin length for accurate current measurement. This compact PCB current transformer offers easy integration for various electric device. With its 40 amp capacity, this ZMCT103E ensure smooth monitoring of electric current. Elevate your project with the efficiency of this PCB mount current transformer.
The ZMCT103E 40A PCB Mount Current Transformer features a compact design for easy installation on printed circuit board. Its robust built also ensure reliability and stability in diverse electric environment. this transformer also use to delivers smooth performance to monitor power use or implement protection systems.
Designed for flexibility and convenience, the ZMCT103E PCB Mount Current Transformer is also a perfect choice for a wide range of electric project. Its user friendly design makes it accessible for both DIY project and professional engineers. You can use this ZMCT103E for smooth current measurement and stable performance in your electric device.
Features
- High current measurement: The ZMCT103E Current Transformer is capable to measure up to 40 ampere current. It also allow for accurate monitoring of high current circuit and loads.
- PCB mounting: Designed for PCB mounting, the transformer offer easy integration into circuit design. It also save space and simplify assembly in electronic project.
- Compact size: With its compact size, the transformer is space efficient on the PCB. This allows for flexible placement and fit into various electronic device.
- Wide frequency range: This 40 amp transformer operate over a wide frequency range & make it perfect for diverse device. This ensure compatibility with different power system and device.
- Isolation: The transformer provides electrical isolation between the primary and secondary circuit. And it also ensure safety and prevent electric interference between connected device.
- Accuracy: Featuring high accuracy, the transformer delivers precise measurement results. This ensures reliable monitoring of current levels for control and protection purposes.
- Wide application: The ZMCT103E Current Transformer is suitable for various applications including power monitoring, energy metering, and industrial control systems.
Specification
| Specification | Details |
|---|---|
| Model | ZMCT103E |
| Input Current | 0~40A (sampling resistor 100Ω) |
| Rated Output Current | 2.5mA at input 5A |
| Turns Ratio | 2000:1 |
| Phase Angle Error | ≤30′ (input 10A, sampling resistor 100Ω) |
| Accuracy | 0.3 class |
| Linearity | ≤0.2% (5%dot~120%dot) |
| Permissible Error | -0.3% ≤ f ≤ +0.3% (input 10A, sampling resistor 100Ω) |
| Isolation Voltage | 4500V |
| Application | Measuring or protection |
| Encapsulation | Epoxy |
| Installation | PCB mounting (Pin Length > 3mm) |
| Operating Temperature | -40ºC ~ +85ºC |
| SKU | RW-957 |
