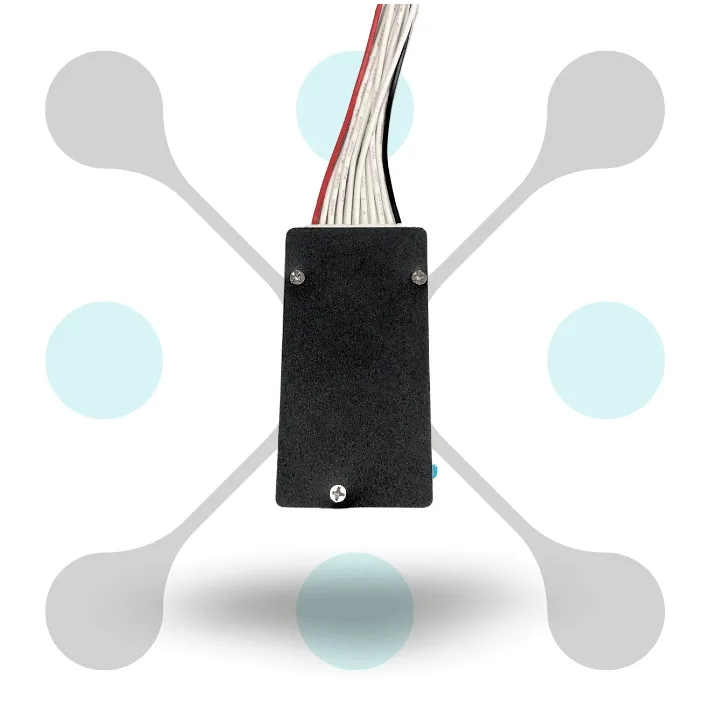

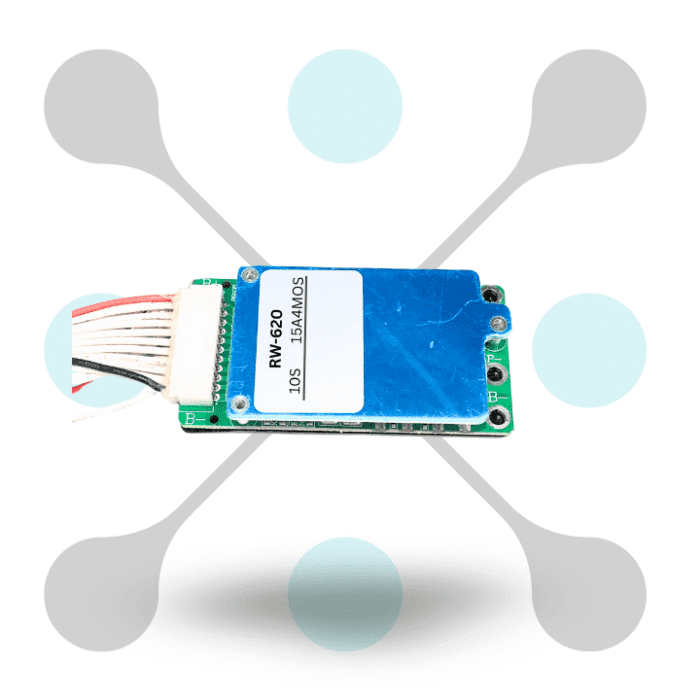

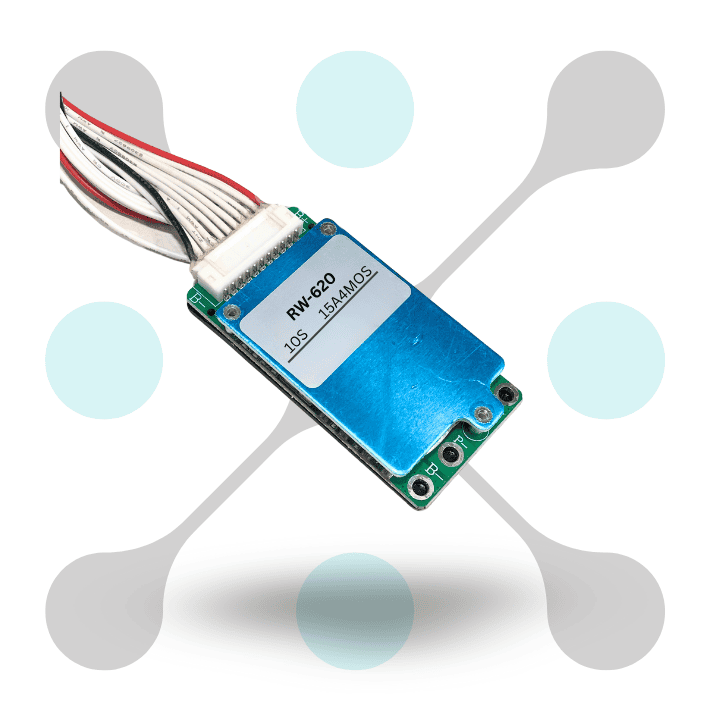

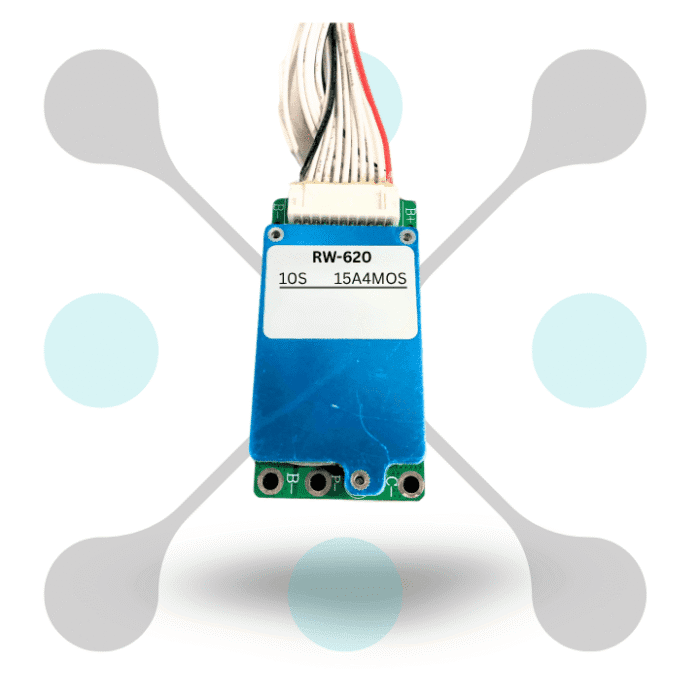

Overview of this 10S 15A BMS Battery Charge Board With Split Port
Introducing Roboway 10S 15A BMS Battery Charge Board with Split Port is designed for efficient battery management. This 10S 15A BMS module is perfect to protect 18650 lithium battery in various applications. It provide overcharge, over discharge, and short circuit protection & ensure maximum safety and battery longevity. With a split port design, this 10S BMS for 18650 battery allow for separate charge and discharge paths & enhance flexibility.
Ideal for electric vehicle and energy storage systems, the Roboway 10S 15A BMS circuit support a steady 15A current. Its durable built ensure reliable and long lasting performance in demanding environments. The split port feature reduces heat buildup & improve overall system efficiency and safety. Enhance your battery management with this robust and versatile 10S 15A BMS Battery Charge Board with Split Port.
Features
- Split Port for Charging and Discharging: This 10S 15A BMS Battery Charge Board With Split Port features separate ports for charging and discharging & enhance power management efficiency. This setup reduce heat generation & ensure safer and more reliable battery operation.
- 15A High Current Support: It also support a continuous current of up to 15A for demanding applications. It delivers stable performance for high power device & maintain battery health over time.
- Advanced Protection Features: It also provide overcurrent, overvoltage, and short circuit protection for enhanced safety. These protections prevent battery damage & ensure long life and reliable operation in various conditions.
- Efficient Battery Balancing: It also help to balance the charge levels of 10 lithium ion cells for optimal performance. It prevents cell overcharge and undercharge, significantly extending battery life and efficiency.
- Compact and Versatile Design: Its compact design allow easy integration into custom battery packs and projects. Its versatile functionality suits various DIY projects, e-bikes, and portable electronics.
Specification
| Specification | Details |
|---|---|
| Type | 10S 15A BMS Lithium 18650 Battery Charge Board |
| Supported Battery Type | 18650 Lithium-Ion |
| Number of Cells | 10 cells in series (10S configuration) |
| Nominal Voltage | 36V |
| Max Charging Voltage | 42V (4.2V per cell) |
| Overcharge Protection Voltage | 4.25V ± 0.05V per cell |
| Over-discharge Protection Voltage | 2.8V ± 0.05V per cell |
| Max Continuous Discharge Current | 15A |
| Charging Current | Up to 15A |
| Short Circuit Protection | Yes, automatic recovery |
| Balance Current | 60mA – 80mA |
| Balance Function | Yes, active balancing |
| Internal Resistance | ≤ 20mΩ |
| Operating Temperature Range | -20°C to 60°C |
| Dimensions | 100mm x 60mm x 10mm |
| Weight | 45 grams |
| Port Type | Split port for charging and discharging |
| Protection Features | Overcharge, over-discharge, short circuit, and overcurrent protection |
| SKU | RW-620 |
