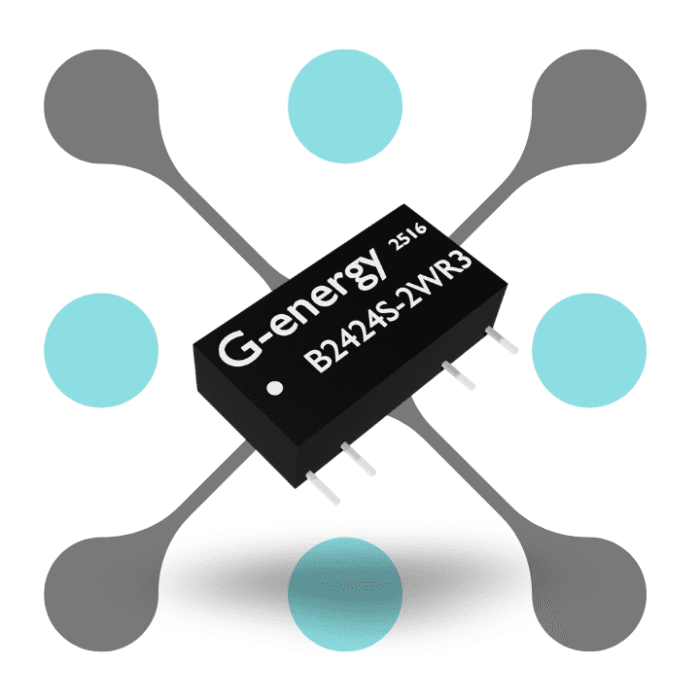

 Overview of this Hilink B2424S dc dc converter
Features
Input Characteristics of this Hilink 2424 dc dc power module
| Item | Working conditions | Min. | Typ. | Max. | Unit |
| Input current (full load/no load) of Hlk-B2424S-2WR3 24V to 24V 2W 83mA DC to DC Power Module Converter | 5VDC Input Series | — | 454/5 | –/10 | m’A |
| 9VDC Input Series | — | 250/5 | –/10 | ||
| 12VDC Input Series | — | 186/2 | –/5 | ||
| 15VDC Input Series | — | 148/2 | –/4 | ||
| 24VDC Input Series | — | 92/1 | –/2 | ||
| Reflection ripple current | — | 15 | — | m’A | |
| Impulse voltage | 3.3VDC Input Series | -0.7 | — | 5 | VDC |
| 5VDC Input Series | -0.7 | — | 9 | ||
| 9VDC Input Series | -0.7 | — | 15 | ||
| 12VDC Input Series | -0.7 | — | 18 | ||
| 15VDC Input Series | -0.7 | — | 21 | ||
| 24VDC Input Series | -0.7 | — | 30 | ||
| Input filter type | Capacitance filter type | ||||
| Hot plugged | Non-support | ||||
Output Characteristics of this hilink 24V to 24V 2W dc-dc converter
| Project name | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output load of Hlk-B2424S-2WR3 24V to 24V 2W 83mA DC to DC Power Module Converter | load percentage | 10 | — | 100 | % | |
| Output Voltage Accuracy | See Error Envelope Curve | — | — | ±15.0 | % | |
| Linear adjustment rate | Input voltage variation ±1% | 3.3V Input | — | — | ±1.5 | % |
| others | — | — | ±1.2 | % | ||
| Load adjustment rate | 10%~100% load | 3.3VDC Output | — | 18 | — | % |
| 5VDC Output | — | 12 | — | % | ||
| 9VDC Output | — | 8 | — | % | ||
| 12VDC Output | — | 7 | — | % | ||
| 15VDC Output | — | 6 | — | % | ||
| 24VDC Output | — | 5 | — | % | ||
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | — | 30 | 80 | mVp-p | |
| Temperature Drift Coefficient | Full load | — | — | ±0.03 | %/℃ | |
| Output short circuit protection | Continuous short circuit protection, automatic recovery | — | ||||
| Notes: Ripple and Noise Test Methods Twisted Pair Test Method | ||||||
Typical Application Circuits :
