Description

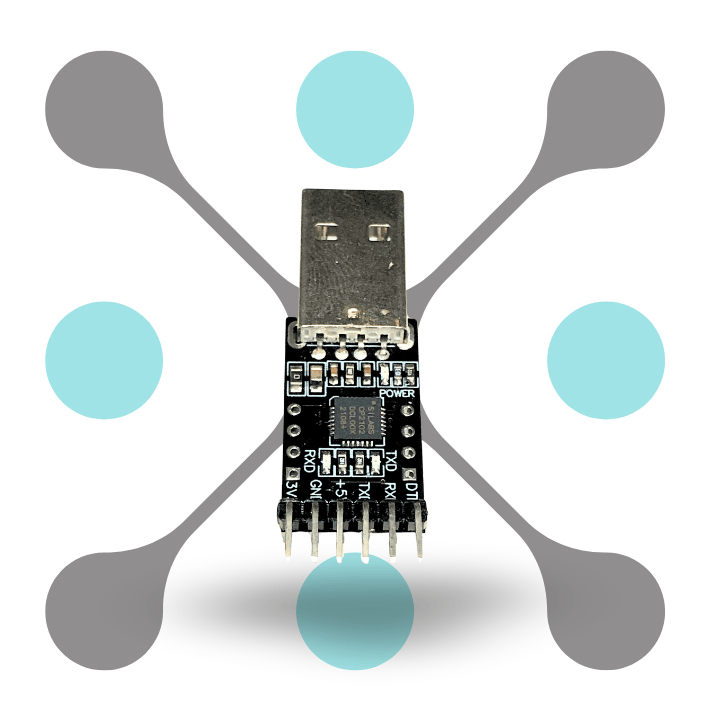

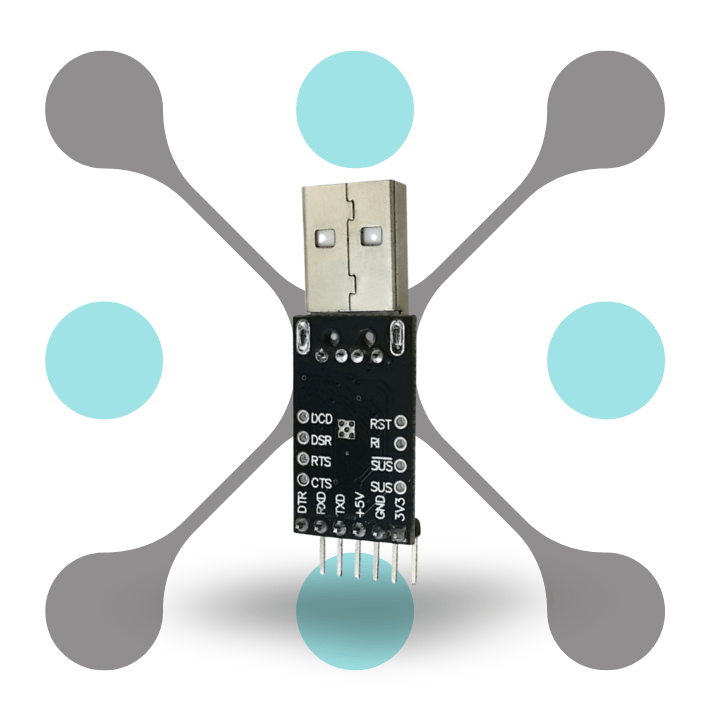

Overview of this cp2102(6-pin) usb 2.0 to ttl uart serial converter
Introducing the CP2102(6-pin) USB 2.0 to TTL UART serial converter module, a versatile tool for embedded systems requiring serial connections to computers. With its simple attachment to a USB bus, it seamlessly appears as a standard COM port, offering ease of use for various applications.
This CP2102 module eliminates the need for external oscillators, featuring an onboard voltage regulator and a reprogrammable internal EEPROM for device description. Supporting baud rates from 300bps to 921600bps, its full hardware UART with flow control ensures reliable data transmission in a wide range of settings.
Equipped with dual 3.3V and 5V power outputs, three LEDs indicating power, data reception, and transmission, and a self-recovery fuse for protection against accidental short circuits, the CP2102 offers convenience and safety. Compatible with various operating systems and boasting features like USB suspend support and hardware handshaking, it serves as a dependable solution for serial communication needs.
Features
- Versatile Connectivity: The CP2102 USB converter effortlessly links embedded systems to computers via a standard COM port, simplifying serial communication for various applications.
- Integrated Functionality: Featuring an onboard voltage regulator and reprogrammable EEPROM, this converter requires no external oscillator, ensuring hassle-free operation and enhanced convenience.
- Flexible Baud Rates: With hardware UART supporting flow control, baud rates from 300bps to 921600bps are accommodated, facilitating efficient data transmission across a wide range of speeds.
- Dual Power Output: Providing both 3.3V and 5V power outputs, this module caters to diverse voltage requirements, offering flexibility in powering connected devices.
- User-friendly Indicators: Equipped with three LEDs indicating power status, data reception, and transmission, the converter keeps users informed of operational status at a glance.
- Robust Protection: With a self-recovery fuse and support for USB suspend state, the CP2102 safeguards against short circuits and ensures reliable performance without compromising computer USB ports.
- Compatibility and Ease of Use: Supporting multiple operating systems including Windows, macOS, Linux, and Windows CE, along with seamless integration with Arduino boards, this converter offers broad compatibility and straightforward setup for diverse users.
Specification
| Specification | Description |
|---|---|
| USB Compatibility | USB 2.0 |
| UART Compatibility | TTL UART |
| Supported Baud Rates | 300bps to 921600bps |
| Operating Systems | Windows 98/Me/2000/7, MAC OS-9, MAC OS X, Windows CE, Linux 2.40 or later |
| Power Output | 3.3V and 5V dual power output |
| LEDs | Power indicator, data reception indicator, data transmission indicator |
| USB Specification Compliance | Compliant with USB2.0 specifications |
| Features | – USB transceiver integrated <br> – No external circuit required <br> – Includes clock and power-on reset circuits <br> – Self-recovery fuse for protection <br> – Reset signal output for Arduino Pro Mini download <br> – Supports hardware handshaking or X-ON/X-OFF |
| Data Format | 8 data bits, 1 stop bit, and parity bits |
| Buffer Size | 512-byte receive buffer, 512-byte transmit buffer |
| Handshake Signals | Compatible with all handshake and modulation controller interface signals |
| SKU | RW-85 |
