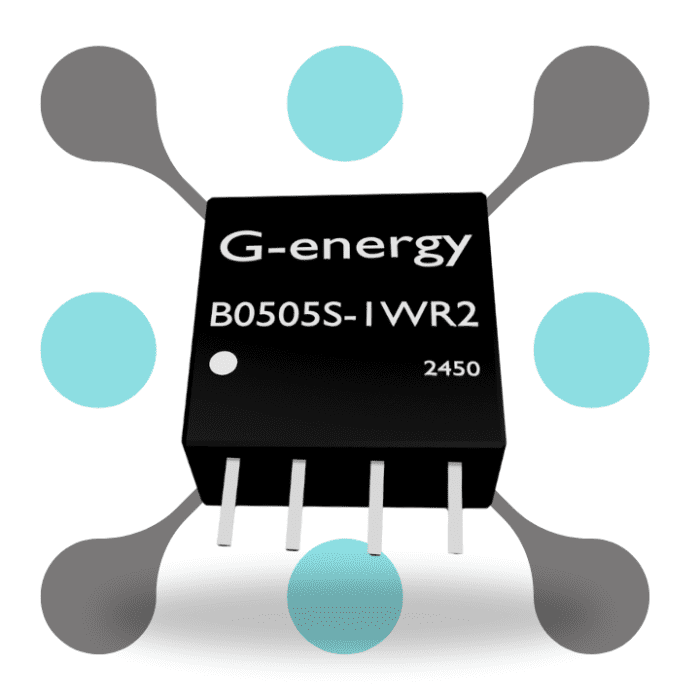

Overview of this G-energy B0505S-1WR2 5V to 5V 200mA 1W Dc Dc Converter
Introducing G Energy B0505S-1WR2 5V to 5V 200mA 1W DC DC Converter at best price in India with Roboway. This compact B0505S-1WR2 isolated DC DC converter ensures stable voltage output for sensitive electronic application. With a power rating of 1W, this 5V to 5V 200mA 1W isolated power converter is suitable for industrial, automotive, and communication systems. Its robust design ensures efficient operation in harsh environment.
This B0505S-1WR2 DC DC power module combine high efficiency with a low ripple noise for smooth performance. Its isolated design enhance safety and reduce electromagnetic interference in electronic circuit. Ideal for compact and portable device, this B0505S-1WR2 isolated DC DC converter fulfill various power need easily.
Features
- Efficient Power Conversion: This B0505S-1WR2 5V to 5V 200mA 1W Dc Dc Converter deliver 5V DC output from a 5V DC input with 1W power. And optimize for low energy loss & ensure smooth performance in diverse electronic application.
- Compact and Space-Saving Design: It also feature a small and lightweight form for easy fit. Ideal for compact device and system that need efficient power module.
- High Isolation Voltage: It also provide 1500V DC isolation & enhance safety and reduce cross circuit interference. It also ensure stable and noise free operation in sensitive electronic circuit.
- Broad Operating Temperature Range: This 5V to 5V 200mA 1W isolated power converter work effectively between -40°C and +85°C for versatile application.
- Reliable Performance: It is specially built with durable materials & ensure stable operation over long period. And also fulfill need of industry standard for quality and reliability in harsh environment.
G-energy B0505S-1WR2 dc dc converter datasheet
Specification
| Specification | Details |
|---|---|
| Input Voltage | 5V DC |
| Output Voltage | 5V DC |
| Output Current | 200mA |
| Output Power | 1W |
| Isolation Voltage | 1500V DC |
| Efficiency | Up to 83% |
| Input-Output Isolation | Fully Isolated |
| Ripple & Noise | ≤100mV |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Package Type | SIP-7 |
| Short Circuit Protection | Continuous |
| Load Regulation | ±1.2% |
| Line Regulation | ±1.0% |
| Dimensions | 19.7 x 6 x 10.2 mm |
| Weight | 2g |
| SKU | RW-DC145 |
Related Module
| Input Voltage | Output Voltage | Output Power | Model Name |
|---|---|---|---|
| 5V DC | 5V DC | 1W | B0505S-1WR3 |
| 5V DC | 5V DC | 1W | B0505S-1WR2 |
| 5V DC | 12V DC | 1W | B0512S-1WR3 |
| 12V DC | 5V DC | 1W | B1205S-1WR3 |
| 12V DC | 3V DC | 1W | B1203S-1WR3 |
| 12V DC | 12V DC | 1W | B1212S-1WR3 |
| 24V DC | 3V DC | 1W | B2403S-1WR3 |
| 24V DC | 5V DC | 1W | B2405S-1WR3 |
| 24V DC | 12V DC | 1W | B2412S-1WR3 |
| 5V DC | 5V DC | 1W | F0505S-1WR3 |
| 5V DC | 12V DC | 1W | F0512S-1WR3 |
| 5V DC | 3V DC | 2W | B0503S-2WR3 |
| 5V DC | 5V DC | 2W | B0505S-2WR3 |
| 5V DC | 9V DC | 2W | B0509S-2WR3 |
| 5V DC | 12V DC | 2W | B0512S-2WR3 |
| 5V DC | 15V DC | 2W | B0515S-2WR3 |
| 5V DC | 24V DC | 2W | B0524S-2WR3 |
