roboway G-energy B0512S-2WR3 5V to 12V 166mA 2W Dc Dc Converter Isolated Module

B0512S-2WR3 5v to 12v 166ma 2w dc dc converter

Click to enlarge

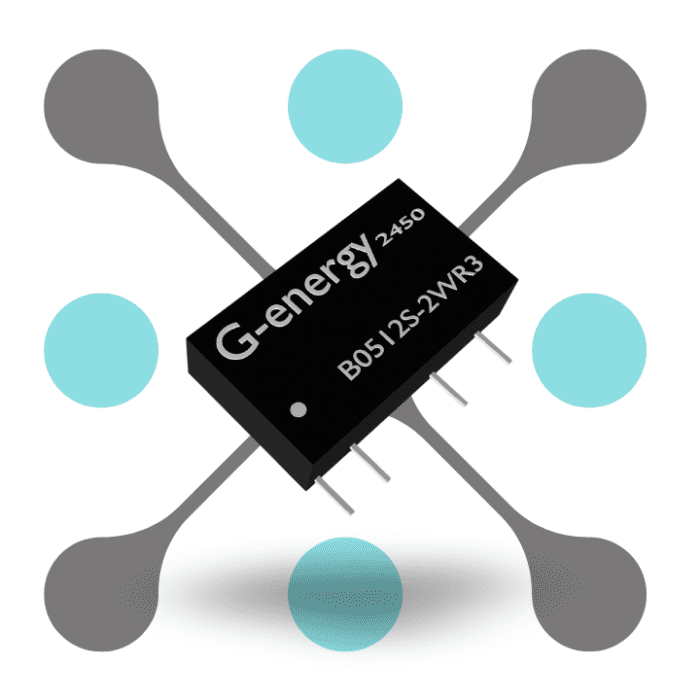

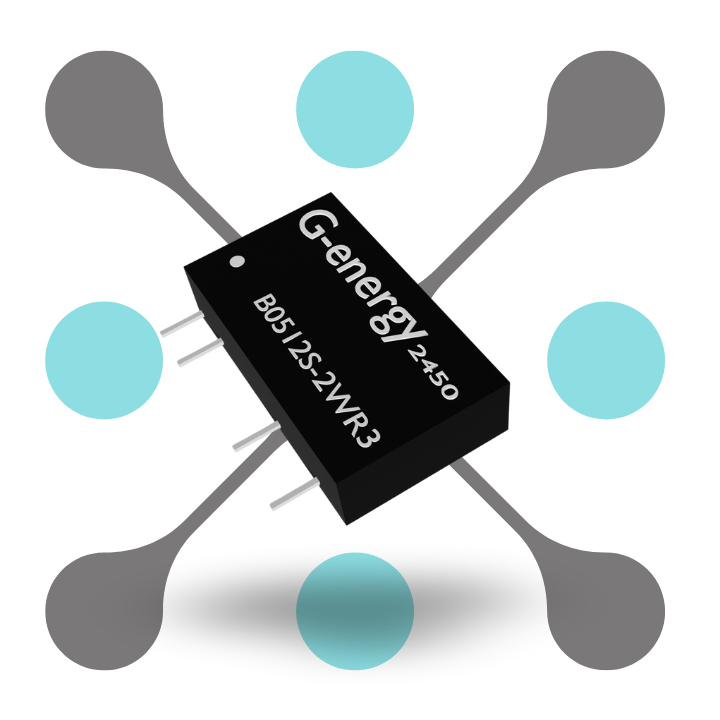

G-energy B0512S-2WR3 5V to 12V 166mA 2W Dc Dc Converter Isolated Module

SKU: RW-DC158

Input Voltage	5V DC
Output Voltage	12V DC
Output Current	166mA
Output Power	2W
Isolation Voltage	1500V DC

₹99.00 ( Excluding 18% GST )

Mail us for bulk inquiry: Sales@roboway.in

In stock

3 People watching this product now!

Overview of this G-energy B0512S-2WR3 5V to 12V 166mA 2W dc dc converter

Introducing G-energy B0512S-2WR3 5V to 12V 166mA 2W dc dc Converter an efficient solution for voltage conversion. This B0512S-2WR3 isolated DC DC converter provide a stable 12V output from a 5V input. With a 2W power rating, this 5V to 12V 166mA 2W DC DC converter is ideal for low power device. Its isolated design ensure improved safety and reduced electromagnetic interference in sensitive circuit.

This B0512S-2WR3 DC DC boost converter is perfect for use in industrial, automotive, and communication systems. It offers low ripple and noise & ensure a clean and stable power supply. This B0512S-2WR3 isolated DC DC converter is efficient and reliable, even in harsh environment. This module is designed for application that need a compact, high efficiency power converter with stable voltage output.

Features

Efficient Step-Up Conversion: This B0512S-2WR3 5v to 12v 166ma 2w dc dc converter convert 5V DC input to 12V dc output with 2W power.
Moderate Current Output: This B0512S-2WR3 isolated dc dc converter can deliver up to 166mA of current & fulfill the power needs of low current device. Ideal to power small circuit or component need moderate current level.
1kV DC Isolation for Protection: This 5v to 12v 166ma 2w dc dc converter also offer 1500V DC isolation between input and output for enhanced circuit protection. And safeguard sensitive device from electrical noise and voltage surge.
Wide Temperature Range: It also operate smoothly within a temperature range of -40°C to +85°C. Ensure stability and reliability in harsh industrial, automotive, and outdoor environment.
Compact and Reliable Design: Its small and lightweight design make it easy to use into less space device. Built with durable component for long lasting, dependable performance in harsh condition.

Specification

Specification	Details
Input Voltage	5V DC
Output Voltage	12V DC
Output Current	166mA
Output Power	2W
Isolation Voltage	1500V DC
Efficiency	Up to 85%
Input-Output Isolation	Fully Isolated
Ripple & Noise	≤100mV
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +125°C
Package Type	SIP
Short Circuit Protection	Continuous
Load Regulation	±1.5%
Line Regulation	±1.2%
Dimensions	19.7 x 6 x 10.2 mm
Weight	2g
SKU	RW-DC158

Related Module

Input Voltage	Output Voltage	Output Power	Model Name
5V DC	5V DC	1W	B0505S-1WR3
5V DC	5V DC	1W	B0505S-1WR2
5V DC	12V DC	1W	B0512S-1WR3
12V DC	5V DC	1W	B1205S-1WR3
12V DC	3V DC	1W	B1203S-1WR3
12V DC	12V DC	1W	B1212S-1WR3
24V DC	3V DC	1W	B2403S-1WR3
24V DC	5V DC	1W	B2405S-1WR3
24V DC	12V DC	1W	B2412S-1WR3
5V DC	5V DC	1W	F0505S-1WR3
5V DC	12V DC	1W	F0512S-1WR3
5V DC	3V DC	2W	B0503S-2WR3
5V DC	5V DC	2W	B0505S-2WR3
5V DC	9V DC	2W	B0509S-2WR3
5V DC	12V DC	2W	B0512S-2WR3
5V DC	15V DC	2W	B0515S-2WR3
5V DC	24V DC	2W	B0524S-2WR3
