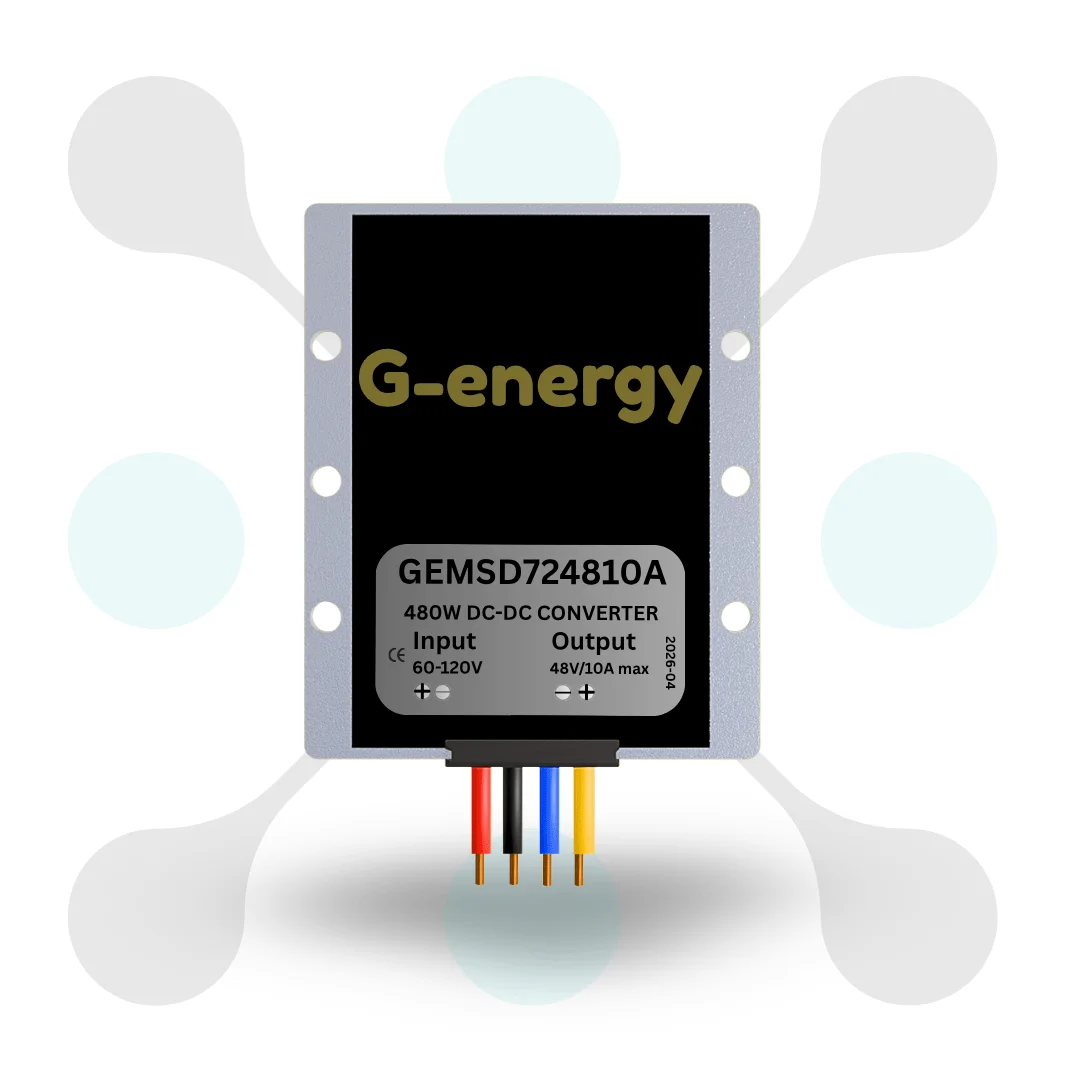

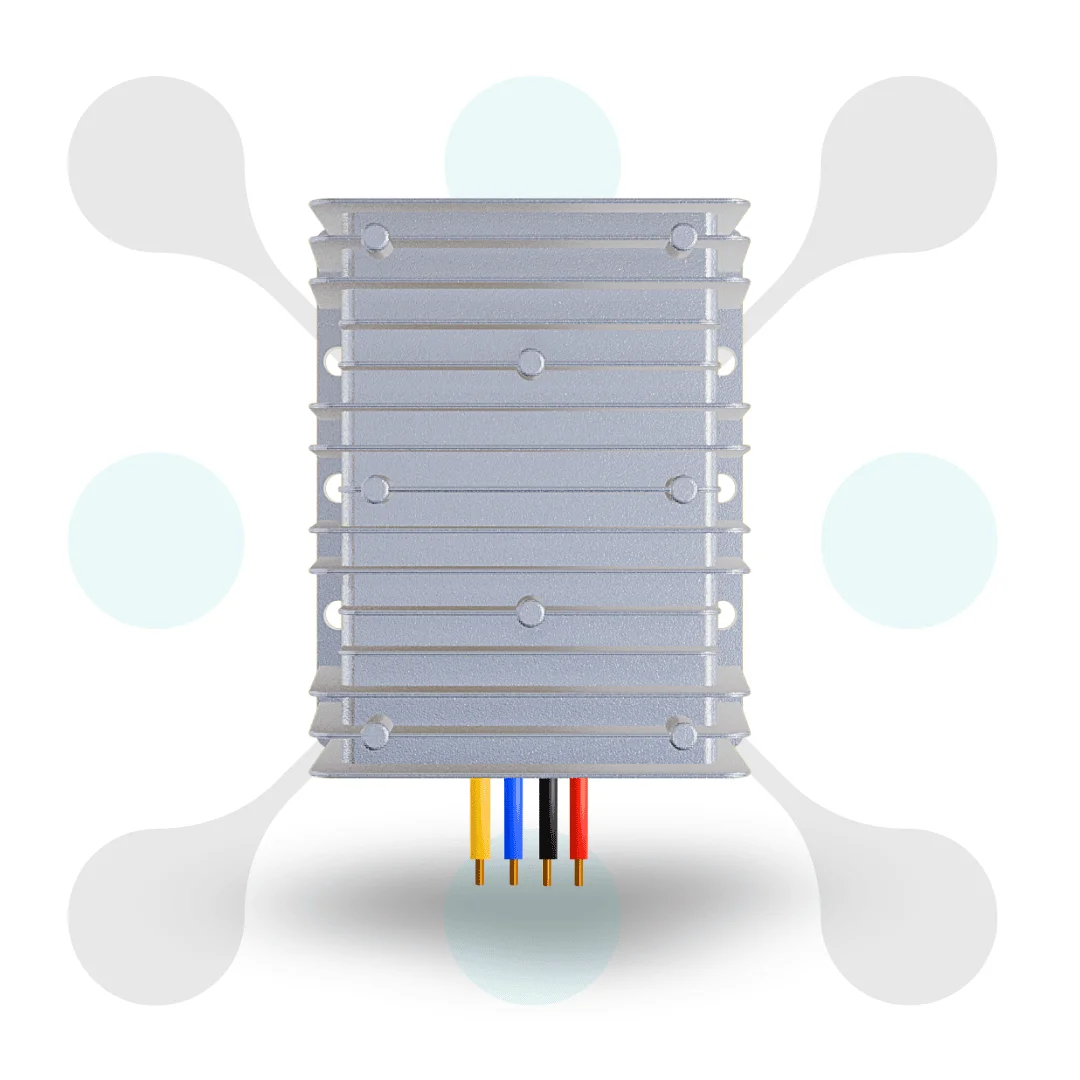

G-energy GEMSD724810A 72V 90V To 48V 10A 480W Dc To Dc Converter Ip68 Buck Converter Module

Overview of this GEMSD724810A 72V 90V To 48V 10A 480w Dc To Dc Converter

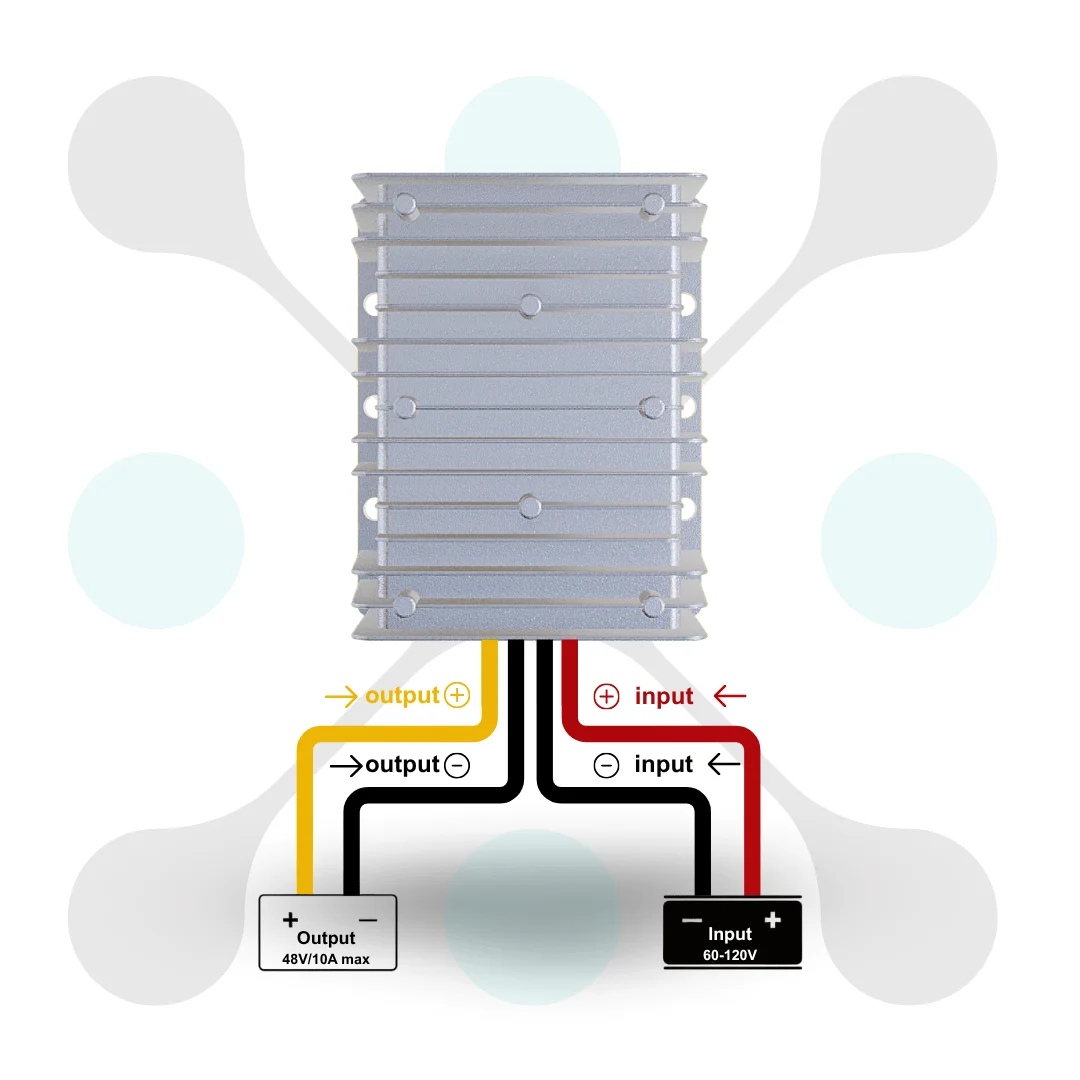

Introducing g-energy GEMSD724810A 72v 90v to 48v 10a 480w dc to dc converter Ip68 buck converter module at best price in India with Roboway. This buck converter work on input voltage  range from 60v to 120v and convert it to a fix 48v dc. It also provide a high dc current up to 10a and 480w max dc power. It also come with 3 month exchange warranty for its quality assurance.

Features

Input voltage: It comes with a wide input voltage range of 60v to 120v for its smooth operation under changing big input voltage condition.

Safety features: It come with multiple safety feature including under voltage protection, output short circuit protection, and under voltage recovery for converter and connected device safety.

Ip68 water proofing: It also come with ip68 rated water proofing for its use under wet & marine conditions.

Specification

Model: GEMSD724810A

Input Voltage Range : 60-120V

Output Voltage: 48V DC (Fixed)

Output Current: Up to 10A

Power Output: 480W Max

Efficiency: ≥ 95%

Protection: Overload, Overheat, Short Circuit

Material: Aluminum Alloy

Cooling Type: Natural Air Cooling

Operating Temperature: -20°C to +60°C

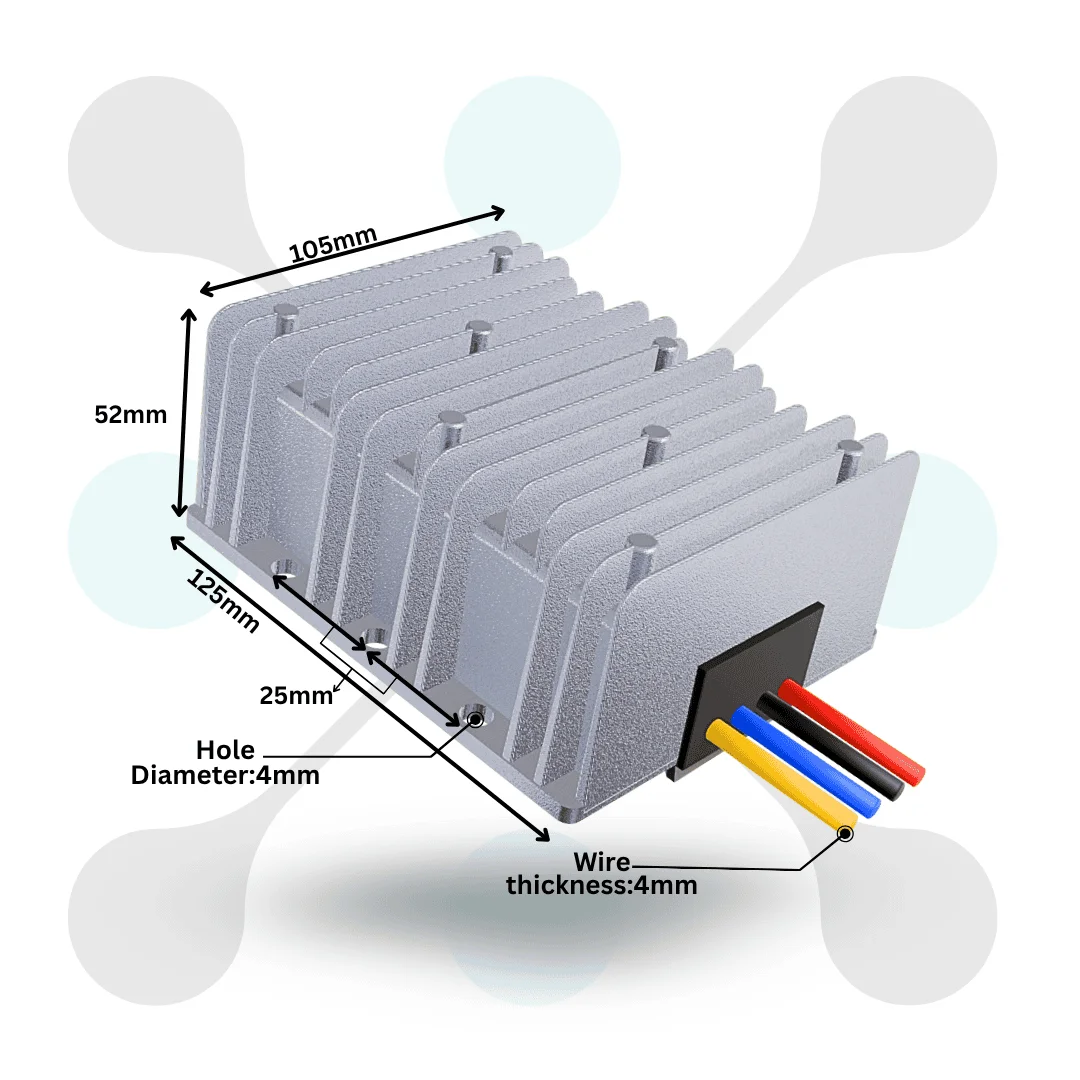

Dimensions: 105 x 127 x 50 mm

Weight: 980 g
