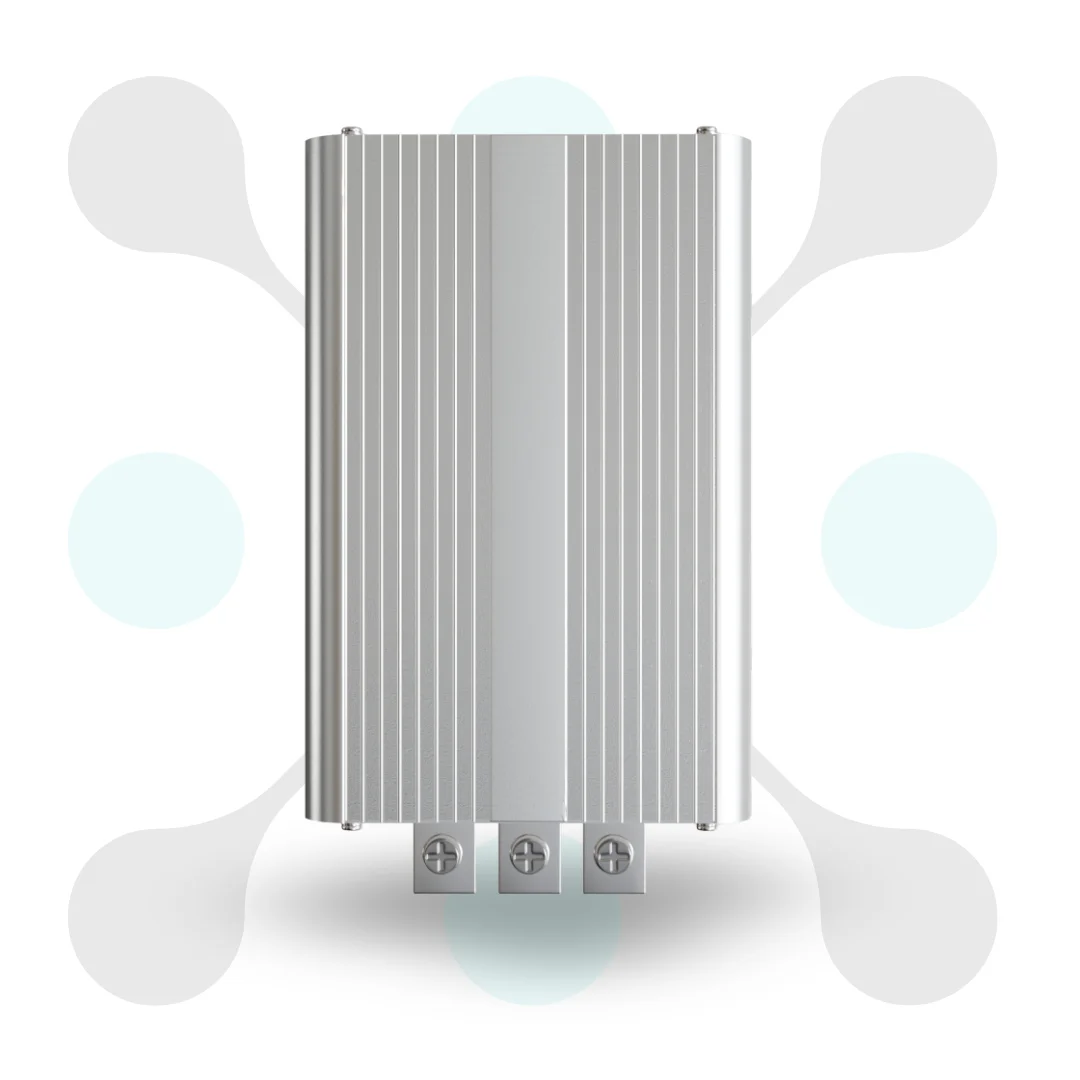

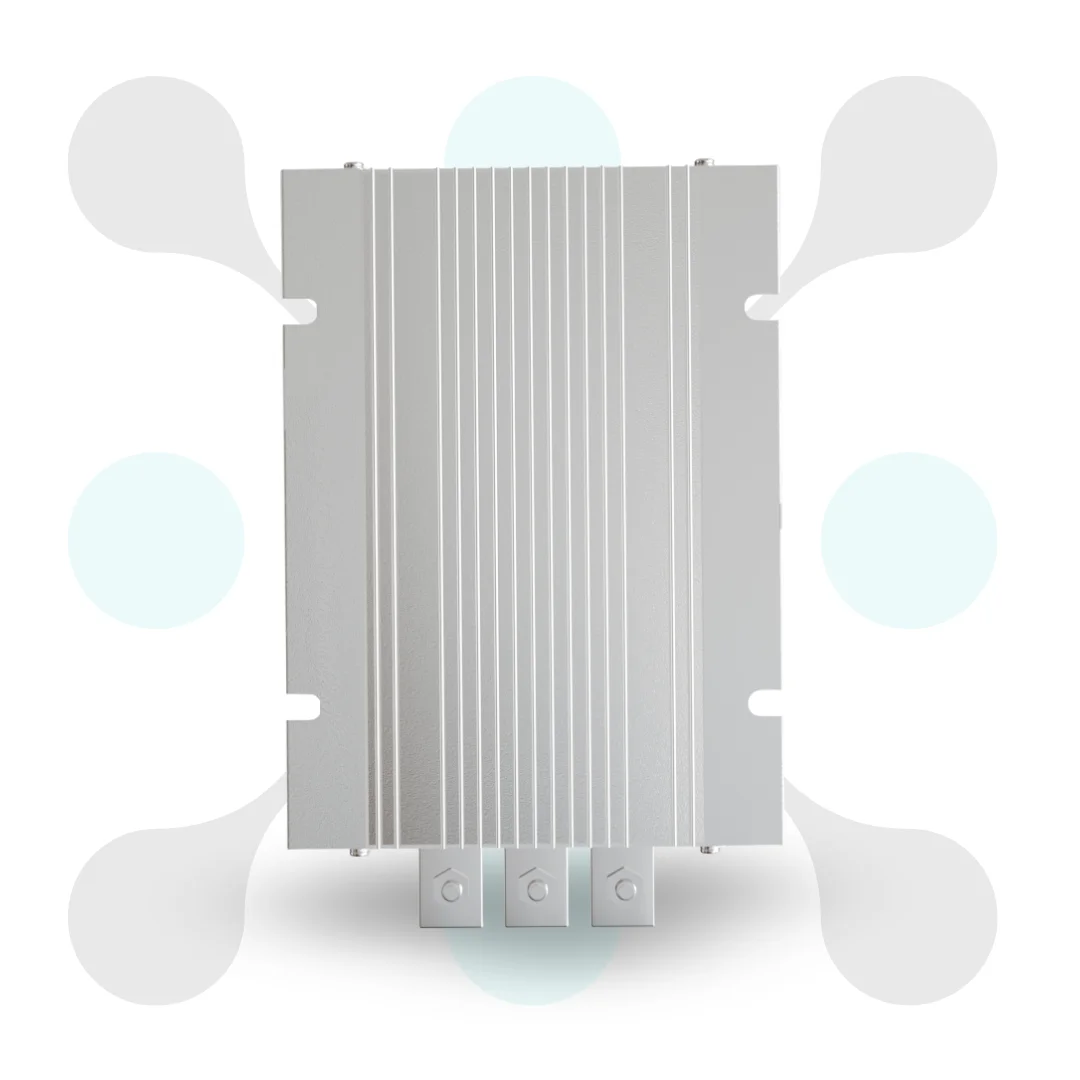

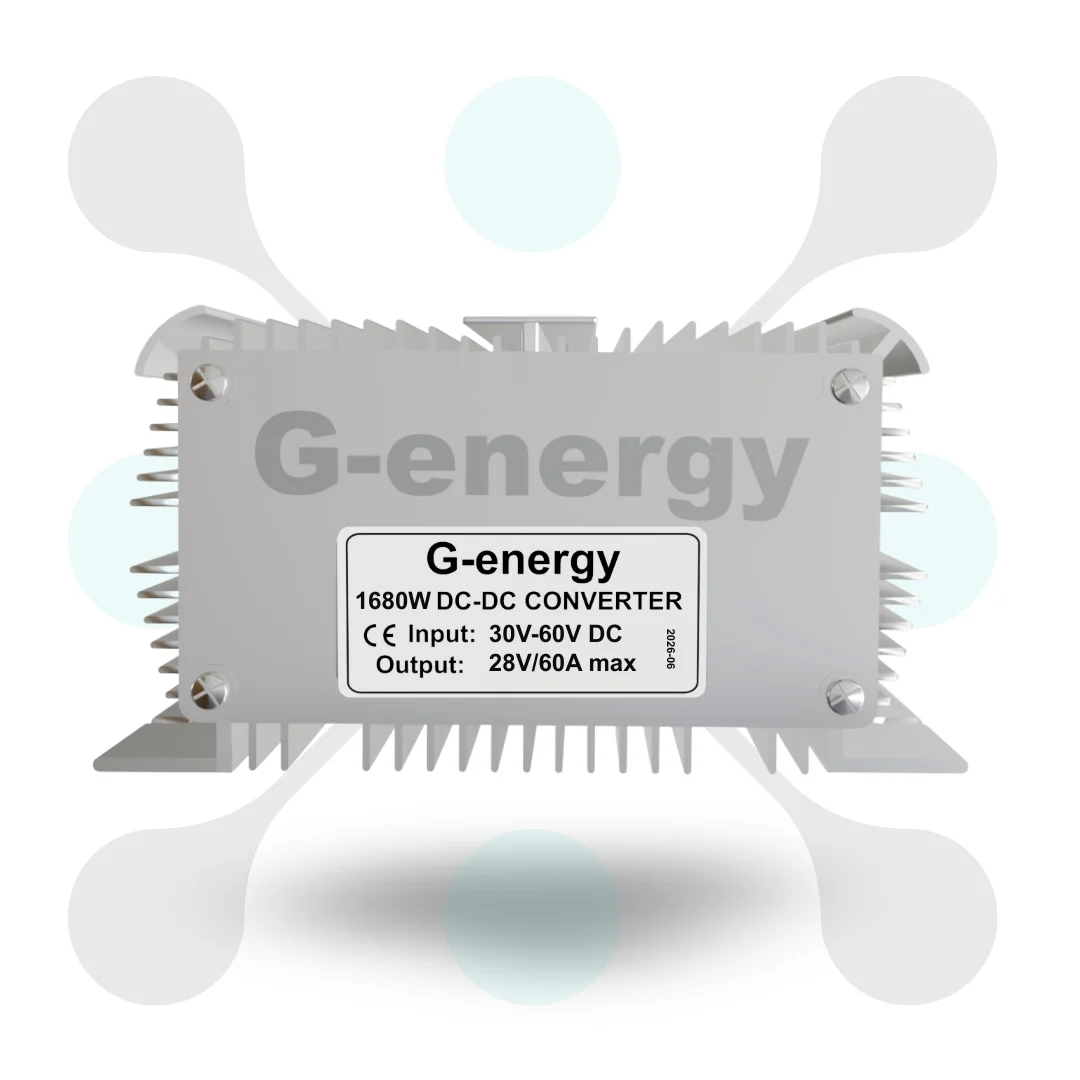

G-energy GEMSDS482860 48V To 28V 60A 1680W Dc To Dc Converter

Description

Overview of this G-energy GEMSDS482860 48v to 28v 60a 1680w dc to dc converter

Introducing G-energy GEMSDS482860 48v to 28v 60a 1680w dc to dc converter at best price in India with Roboway. This buck converter work on a wide input voltage of 30v to 60v dc input voltage of 30v to 60v and convert it to a fix 28v dc input voltage. It also provide a high dc current up to 60a and 1680w dc power.

Features

Fix 28V output: It is also used to provide a fix 28v dc output voltage for stable operations.

30-60V Input voltage: It work on a wide input voltage of 30v to 60v dc input voltage to be used in various input condition.

1680W high power: It also provide a high dc power up to 1680w and 60a max dc current to operate high power dc device.

Datasheet

Datasheet of 48V To 28V 60A 1680W Dc To Dc Converter GEMSDS482860 Ip68 Buck Converter Module

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 28V DC

4. Maximum Output Current: 60A

5. Maximum Output Power: 1680W

6. Efficiency (Typical): Up to 90%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 22mA @ 48V input

🌡 Environmental Specifications

1. Operating Temperature Range: -40°C to +80°C
2. Storage Temperature Range: -40°C to +100°C
3. Humidity Range: 10% to 90% RH

🛡 Protections and Features

1. Protections Included:

   • Short Circuit

   • Over current

   • Over voltage

   • Over temperature

   • Under voltage recovery

2. Smart Chip Protection: Yes

3. Synchronous Rectification Technology: Yes

4. Non-Isolated Converter: Yes

📦 Mechanical & Physical

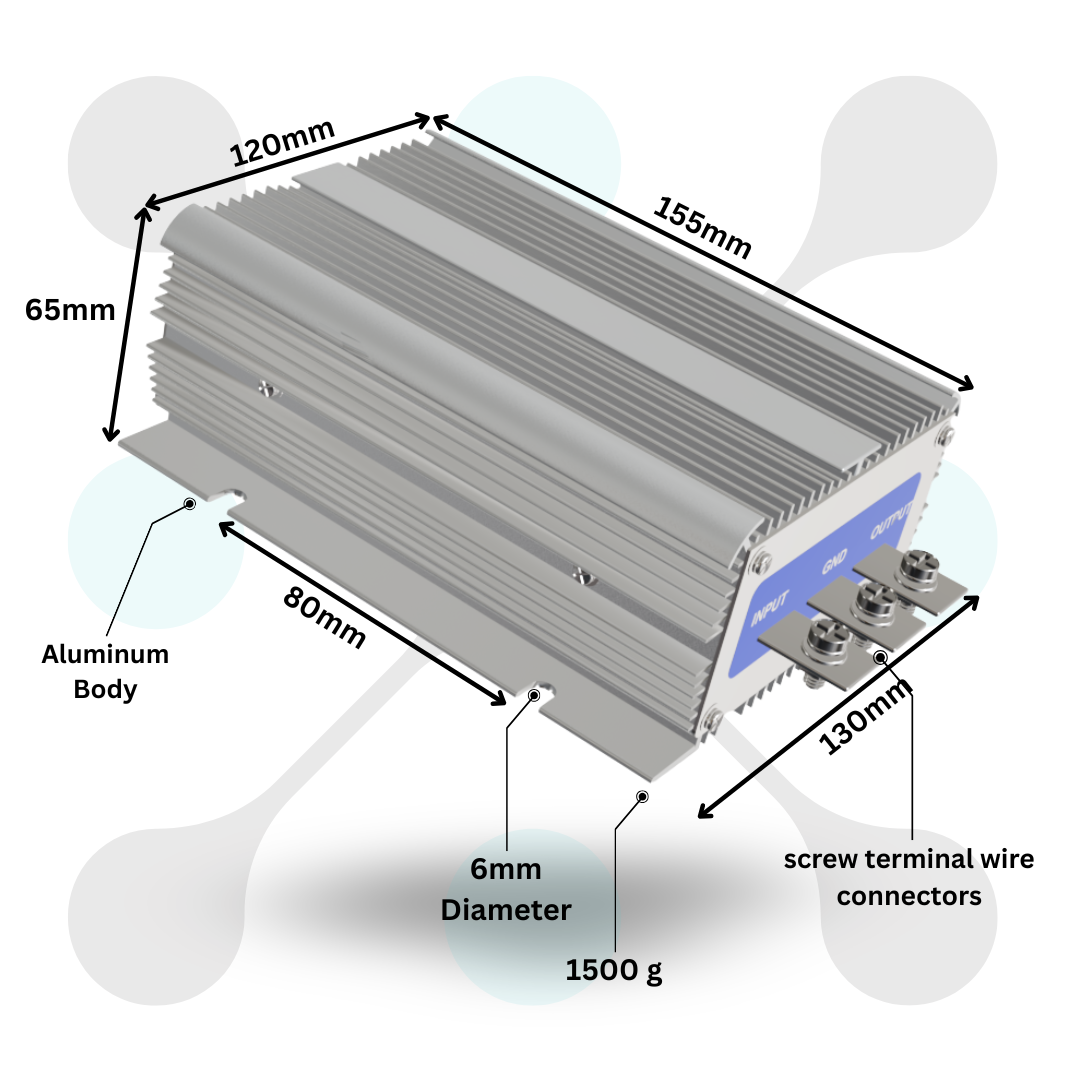

1. Dimensions: 155x130x65 mm
2. Weight: 1500 g
3. Cooling Method: Free air convection (no fan required)
