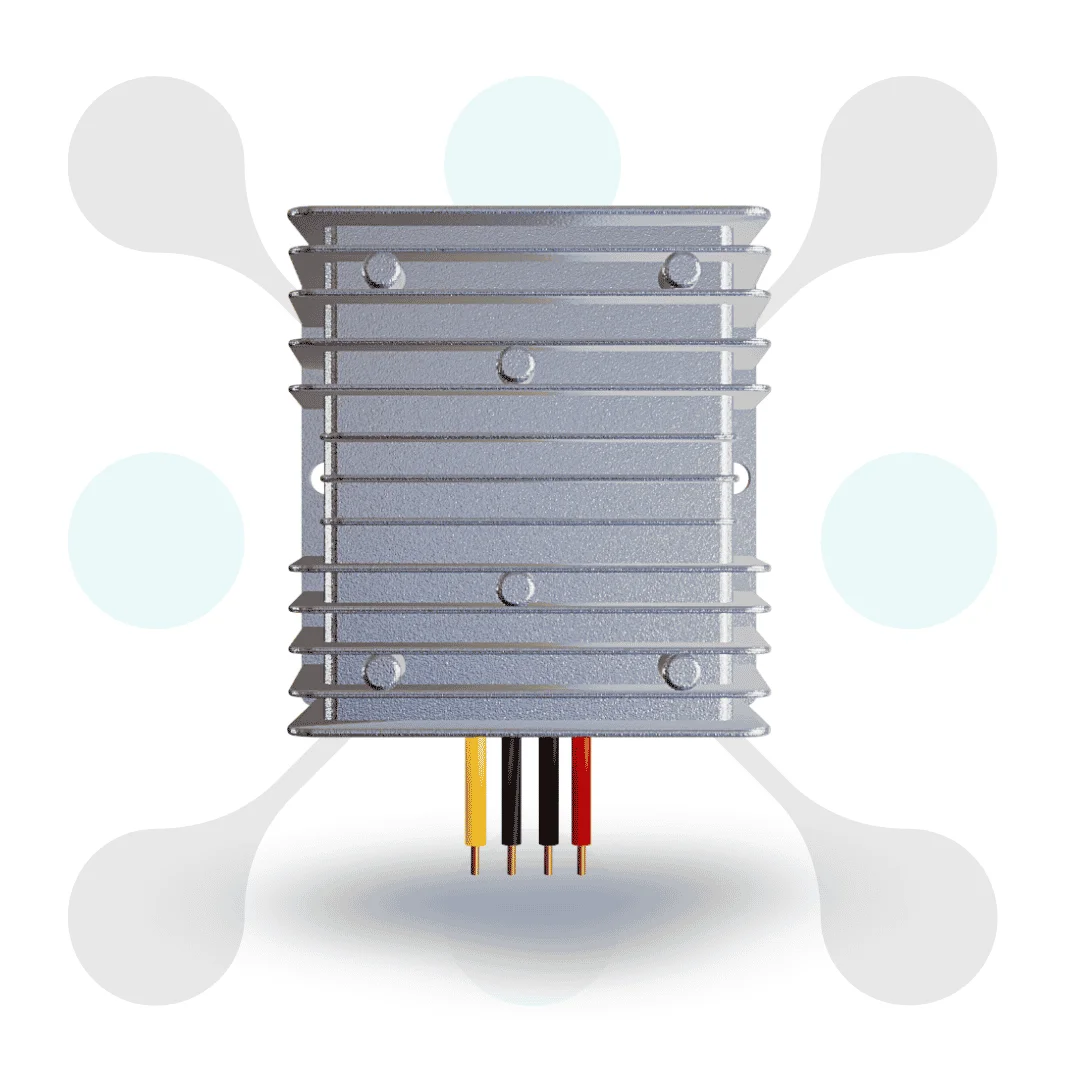

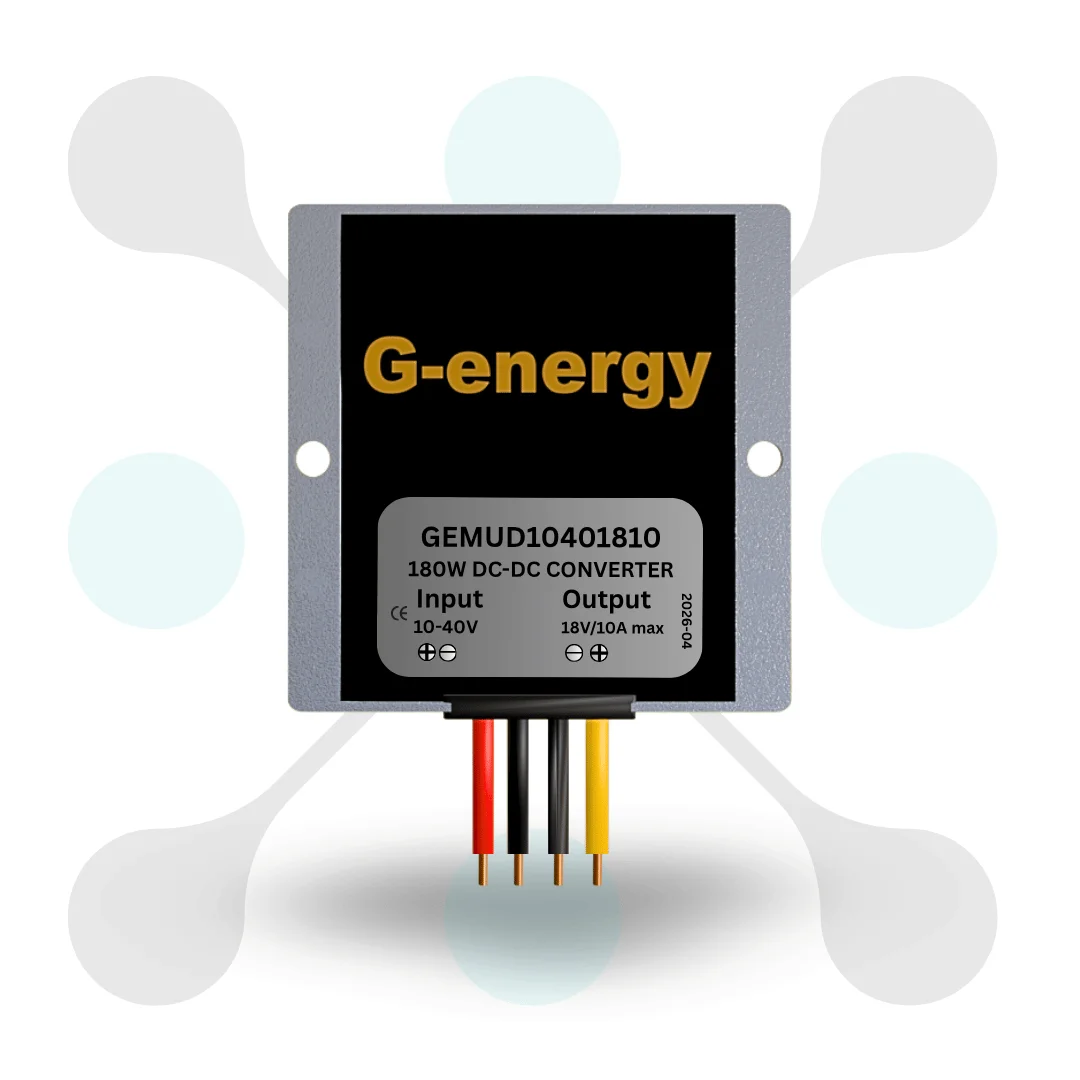

Overview of this GEMUD10401810 24V 36V To 18V 10A Dc Dc Converter
Introducing G-energy GEMUD10401810 24v 36v to 18v 10a dc dc converter Ip68 buck boost module at best price in India with Roboway. This buck boost converter work on input voltage range of 10v to 40v and provide flexiblity to use in multiple input voltage conditions. And it also provide a fix 18v dc output voltage with 10a dc current.
Features
Input Voltage: It work on wide input voltage of 10v to 40v dc input voltage for better flexiblity inchanging input voltage condition.
10A Dc Current: It also provide up to 10A dc current for low power dc devices.
Safety protections: This buck boost converter also come with multiple safety features including short circuit protection, over load protection, under voltage protection for converter & circuit safety.
Specification
| Specification | Details |
|---|---|
| Rated Voltage | 12V 24V 36V |
| Input Voltage Range | 10-40V |
| Efficiency | Up to 95% |
| Output Voltage | 18V |
| Maximum Output Current | 10A |
| Maximum Output Power | 180W |
| Voltage Regulation | ±1% |
| Load Regulation | 2% |
| No-Load Loss | 50mA |
| Ripple Noise | 150mV (Full Load) |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +100°C |
| Operating Humidity | 10% to 90% RH |
| Short Circuit Protection | Yes |
| Overcurrent Protection | Yes |

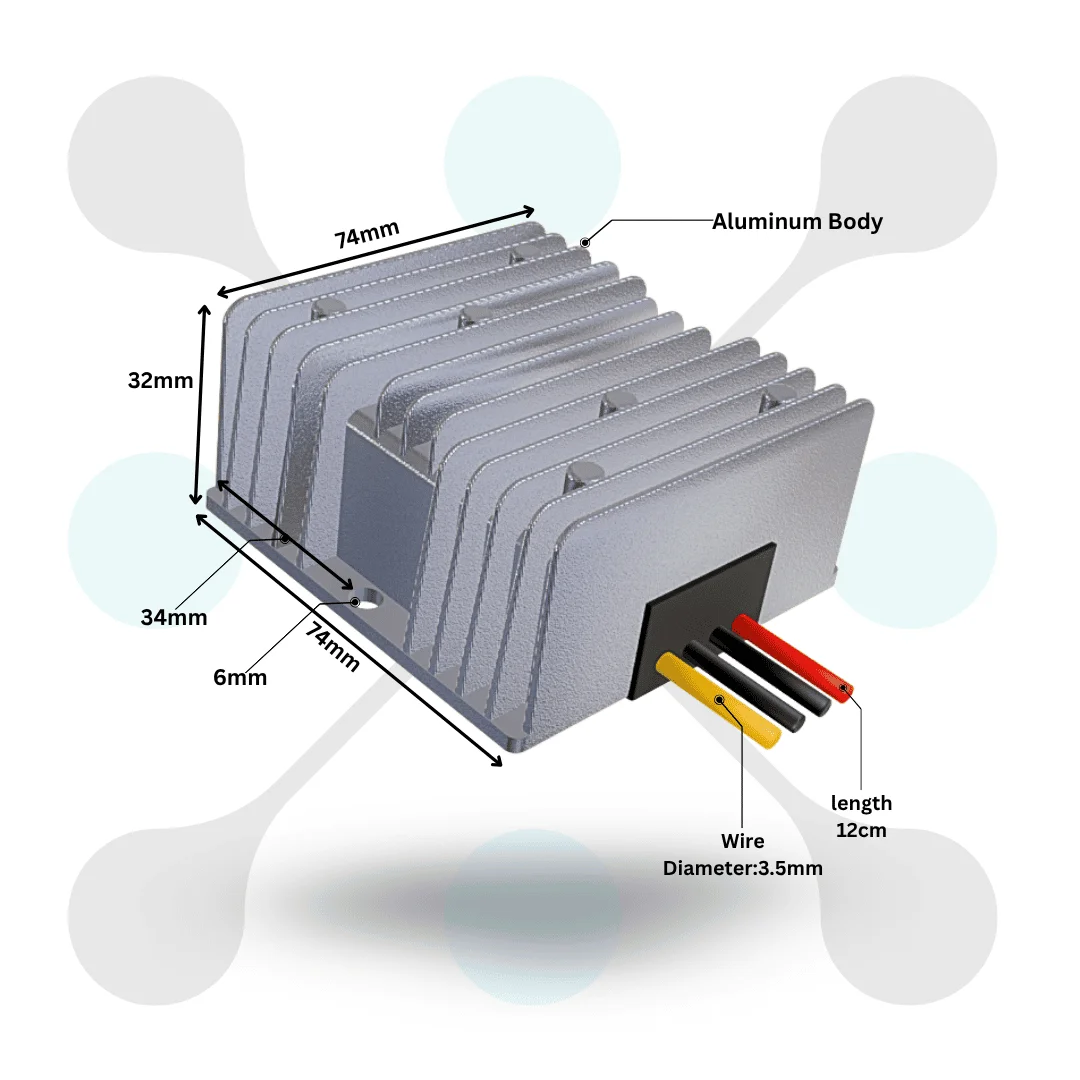

| Dimension | 74 x 74 x 32 mm |
| Weight | 253 g |
| Waterproof Rating | IP68 |
| Model | GEMUD10401810 |
| SKU | RW-1470 |
