G-energy K7805-500R3 24V To 5V 500mA 2.5W Dc Dc Converter

Description

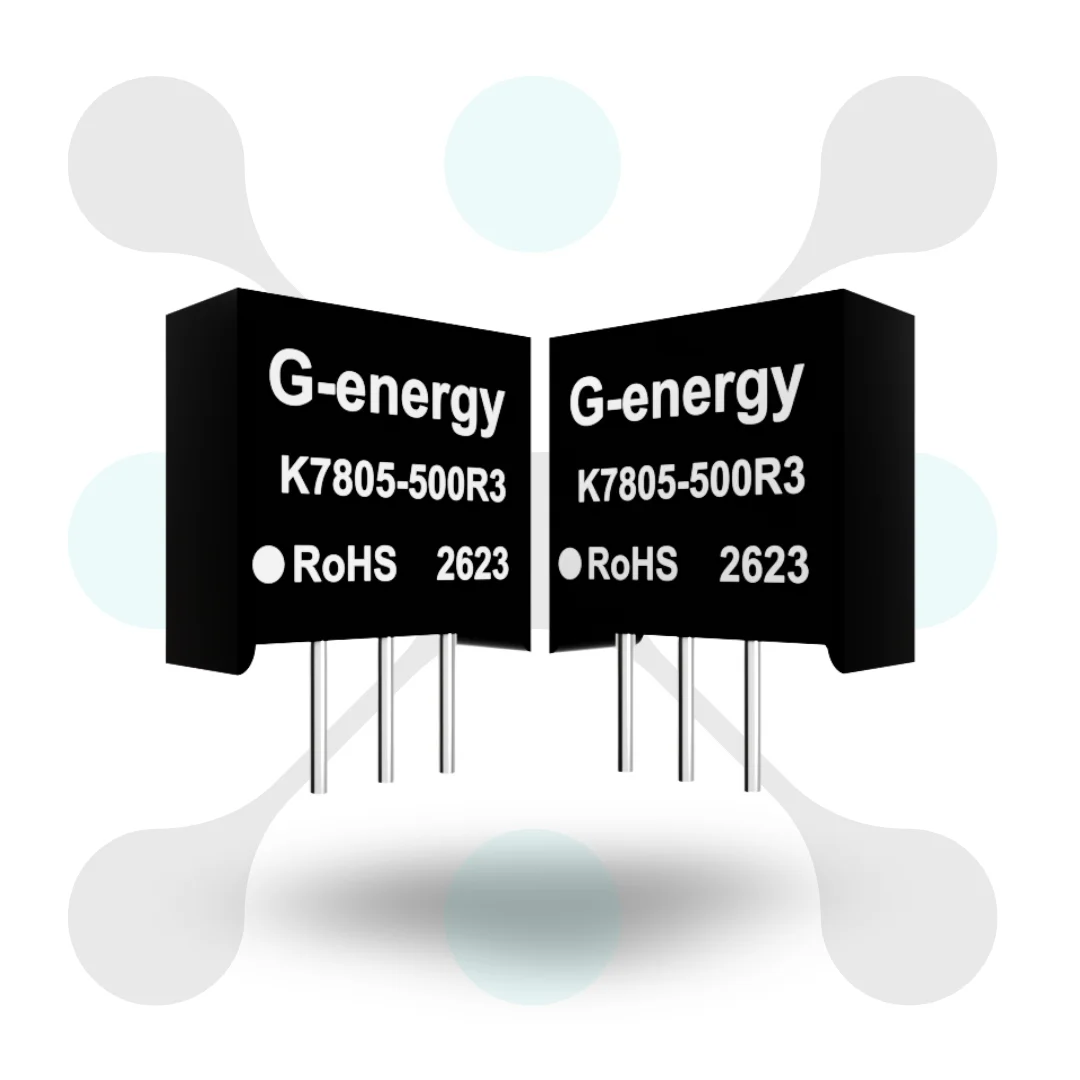

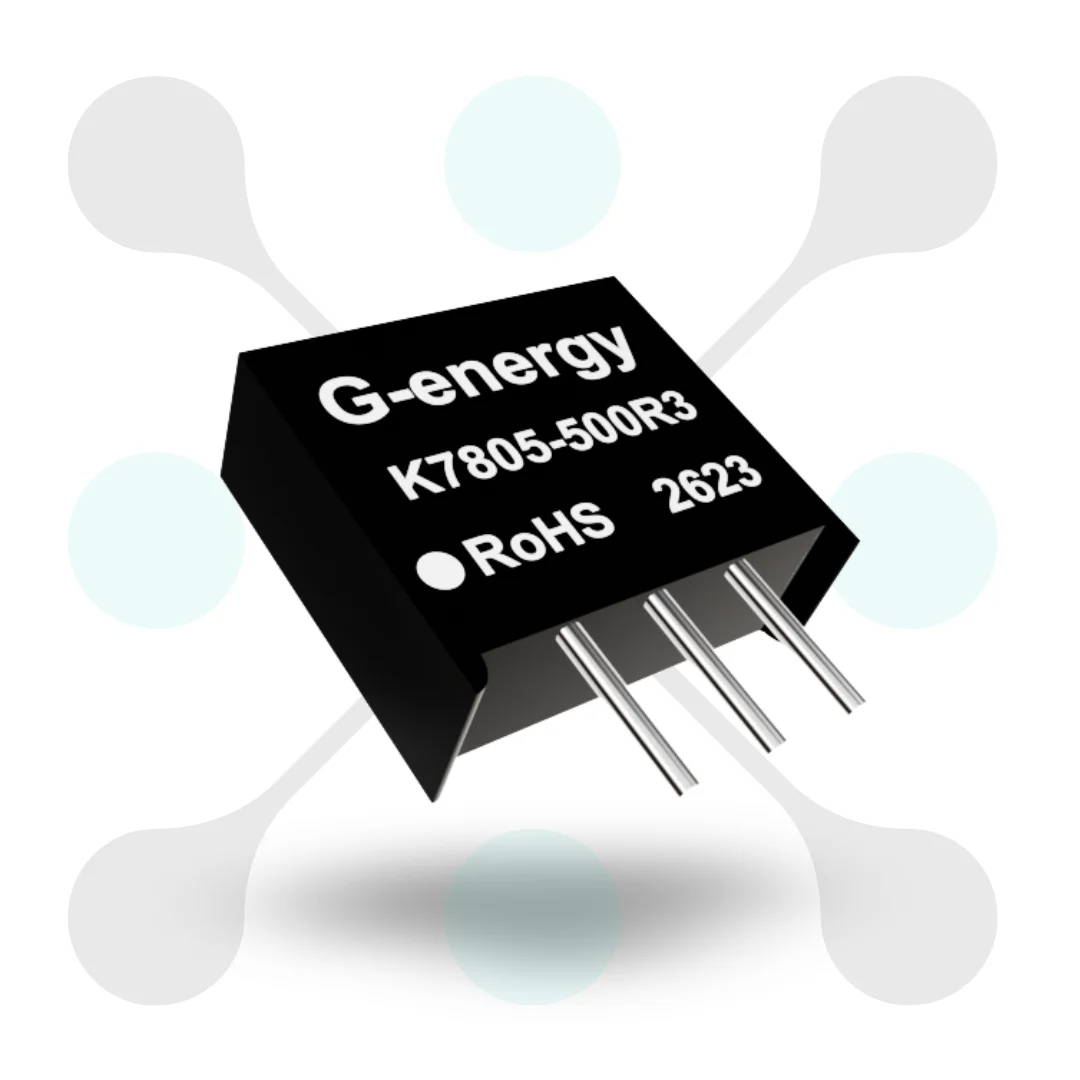

Overview of this G-energy K7805-500R3 24v to 5v 500ma 2.5w dc dc converter

Introducing G-energy K7805-500R3 24v to 5v 500ma 2.5w dc dc converter at best price in India with Roboway. This small pcb mount converter work on 6.5V to 36V dc input voltage and provide a fix 5V dc output voltage. It also provide a low dc current up to 500mA and 6W max dc power with up to 90% energy conversion efficiency.

Features

Wide input voltage: This pcb mount buck converter work on a big dc input voltage range of 6.5v to 36v dc input voltage.

Fix 5V output: It provide a fix 5v dc output for smooth and stable 5v dc operation.

Sip package: It is also built with SIP(single inline package) 3 pin pcb mount option for easy mounting.

Specification

1.Input Voltage Range: 6.5-36V

2. Output Voltage: 5V DC

3. Output Current: 500mA

4. Output Power: 2.5W

5. Efficiency: Up to 90%

6. Line Regulation: ±0.2% (Max)

7. Load Regulation: ±0.5% (Max)

8. Ripple and Noise: 30Vp-p

9. Nominal Input Voltage: 12V/24V/36V

🌡 Environmental Specifications

• Operating Temperature Range: -40°C to +80°C

• Storage Temperature Range: -40°C to +100°C

• Humidity Range: 10% to 90% RH

🛡 Protections and Features

• Waterproof Rating: IP68

• Protections Included:

  • Short Circuit

  • Over current

  • Under voltage

  • Over temperature

  • Under voltage recovery

📦 Mechanical & Physical

• Dimensions: 11mm × 10mm × 7mm
• Weight: 1.7 gm
• Cooling Method: Free air convection (no fan required)
