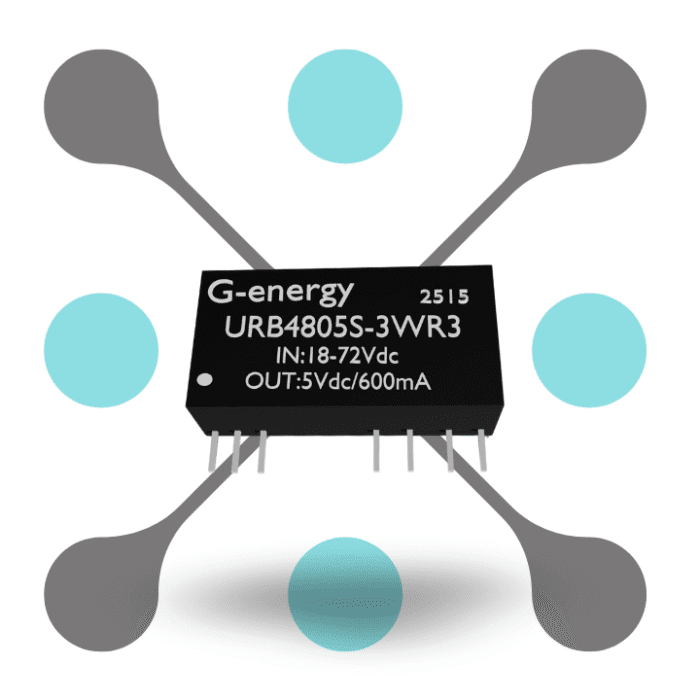

Overview of this G energy URB4805S-3WR3 24V-36V-48V-72V To 5V 3W Dc-Dc Converter Isolated Power Supply Module SIP Package
Features
-
G energy URB4805S-3WR3 – This high-performance module gives a regulated 5V output at 3W and designed for industrial and embedded systems requiring reliable voltage conversion.
-
24V-36V-48V-72V to 5V 3W DC-DC Converter – It is supports a wide input voltage range from 18V to 75V and efficiently stepping down to 5V output while delivering up to 600mA current.
-
Isolated Power Supply Module – Features 1500VDC isolation between input and output and confirms that this is safety and protection for sensitive circuits in harsh environments.
-
SIP Package – Compact Single Inline Package design saves PCB space, allowing easy integration into tightly packed or miniaturized electronic assemblies.
-
High Efficiency and Stability – It gives up to 85% efficiency with built-in over-voltage, over-current, and short-circuit protection, enhancing system reliability and longevity.
Specification
| Specification | Details |
|---|---|
| Product Type | Isolated DC-DC Converter Module |
| Model | URB4805S-3WR3 |
| Input Voltage Range | 18V – 75V (Nominal: 24V, 36V, 48V, 72V) |
| Output Voltage | 5V DC |
| Output Power | 3W |
| Output Current | 600mA (Max) |
| Isolation Voltage | 1500V DC (Input to Output) |
| Efficiency | Up to 85% |
| Package Type | SIP (Single Inline Package) |
| Mounting Type | Through-Hole |
| Operating Temperature | -40°C to +85°C |
| Protection Features | Short Circuit Protection, Over-Voltage Protection |
| Applications | Industrial Control, Communication Equipment |
| Dimensions | 22mm x 9mm x 12mm |
| Weight | ~4.5g |
| SKU | RW-DC174 |
