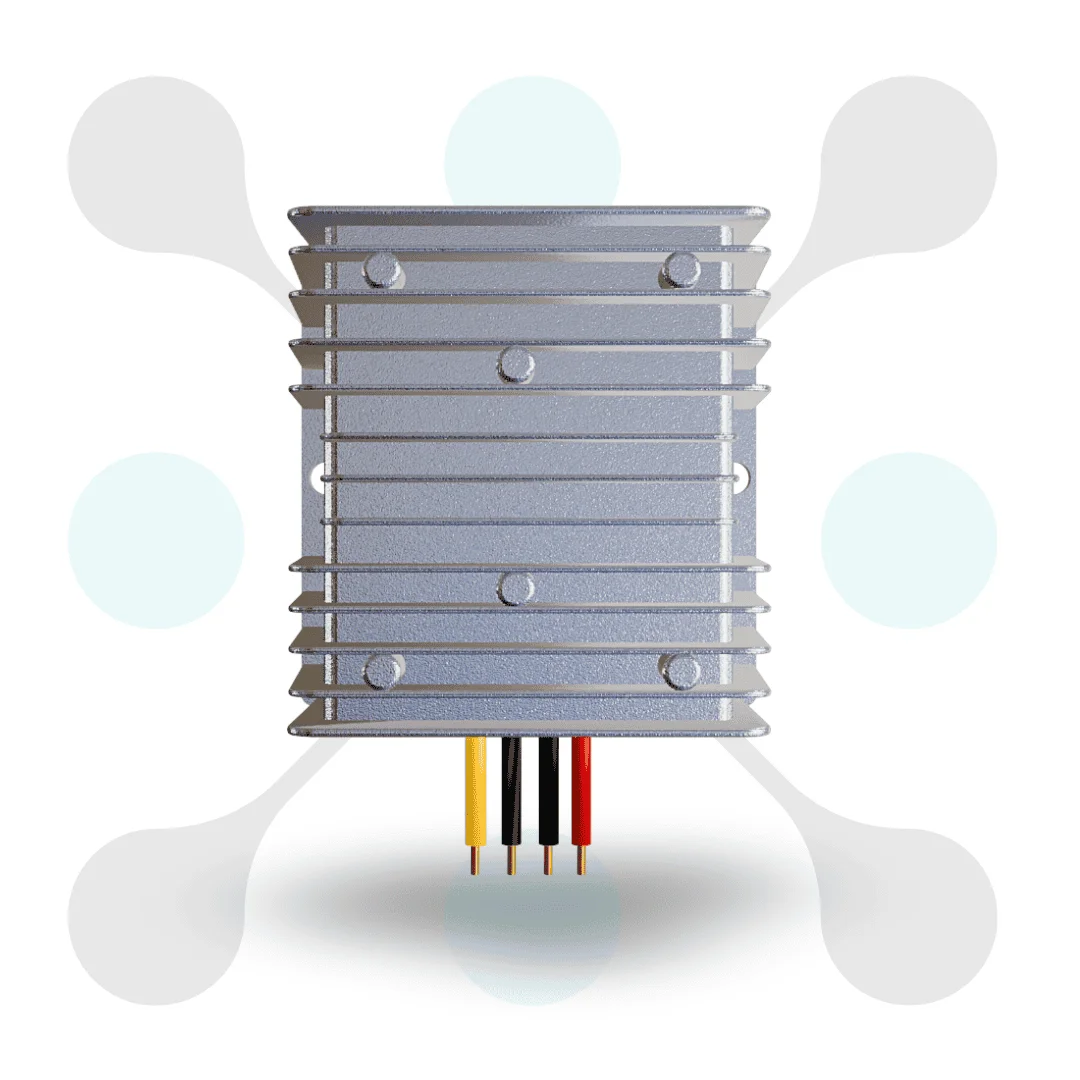

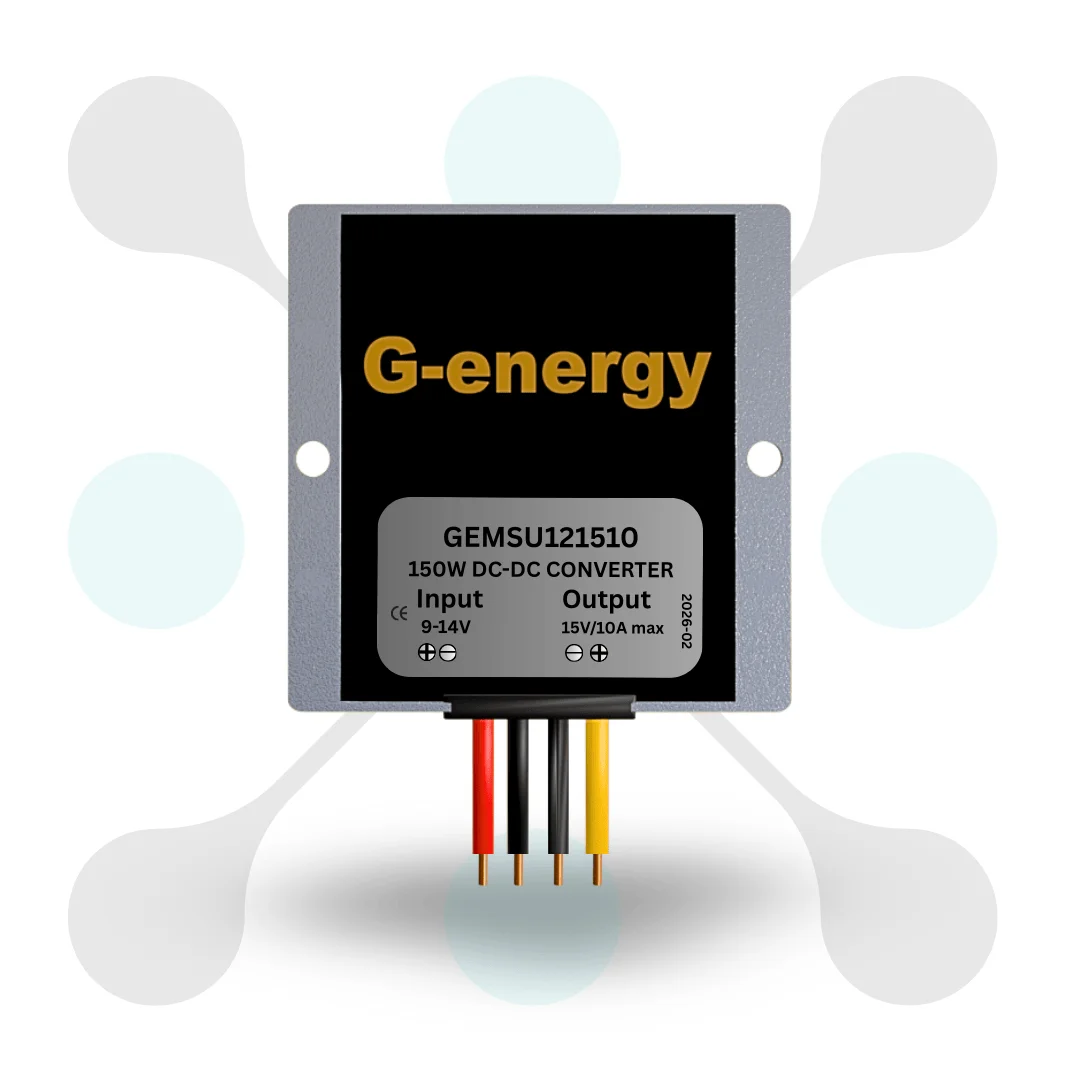

G-energy GEMSU121510 12V To 15V 10A 150W DC To DC converter Ip68 Boost converter

Overview of This G-energy GEMSU121510 12V To 15V 10A 150W DC To DC converter Ip68 Boost converter

Introducing G-energy GEMSU121510 12V To 15V 10A 150W DC To DC converter IP68 converter. This 12V To 15V 10A 150W step up DC-DC converter efficiently boosts voltage maintaining stable power output with an IP68 waterproof rating. This converter provides stable 15V supply even when the input voltage fluctuates between 9V and 14V.

This converter is ideal for vehicle, battery systems, and other DC power setups where 15V output is required. It delivers reliable performance in harsh environments.

Features

Wide input range: This DC-DC converter operates with a 9V To 14V DC input range and provides stable voltage even when the input voltage fluctuates.

Step-up conversion: Converts lower DC voltage to a stable 15V output supporting up to 10A current 150W of power.

High efficiency: Its high efficiency power conversion in 92% for minimized energy loss.

Protection design: Multiple protections over current, over voltage, over temperature and short circuit for reliable operation.

Specification

Model: GEMSU121510

Input voltage range: 9V-14V DC

Input voltage: 12V DC

Output voltage: 15V DC

Output current: 10A

Output power: 150W

Waterproof rating: Ip68

Conversion efficiency: 92%

Operating temperature: –40 °C to +85 °C

Protection features: Over-current, Over-voltage, Short circuit, Over-temperature protections

Dimension: 75 × 70 × 30 mm

Weight: 254g
