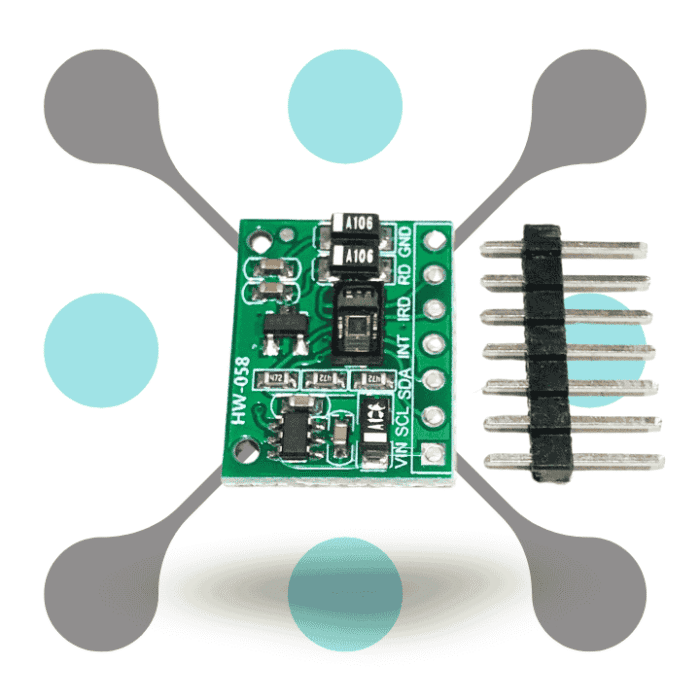

MAX30102 Pulse Oximeter Heart Rate Sensor Module

Introducing MAX30102 pulse oximeter heart rate sensor module with I2C digital comunication interface at best price for accurate pulse oximetry and heart rate monitoring. With its tiny 5.6mm x 3.3mm x 1.55mm size. This module integrate a pulse oximeter and heart rate monitor into a single LED reflective solution for best performance.

The MAX30102 sensor use two LEDs, red and infrared, to measure the absorbance of pulsating blood and generate digital output data stored in a 16 deep FIFO. Its fully configurable nature through software registers allows for seamless integration with host microcontrollers via an I2C digital interface.

It also feature an ultra-low power operation and programmable sample rates. This MAX30102 sensor is a perfect choice for various applications including wearable devices, fitness assistants, and medical monitoring devices. With its high sample rates, motion artifact resilience, and wide operating temperature range (-40°C to +85°C). This sensor ensures reliable performance even in demanding environments.

• Dual Functionality: MAX30102 sensor also integrate pulse oximetry and heart rate monitoring capabilities into one sensor. It measures blood absorbance using two LED wavelengths for accurate readings.
• Compact Design: With dimensions of 5.6mm x 3.3mm x 1.55mm, it’s a tiny 14-pin optical module. This compact size enables versatile integration into various devices and applications.
• Integrated Cover Glass: The oximity sensor includes an integrated cover glass for optimal and robust performance. This feature also enhance durability and ensure smooth operation in different environment.
• Ultra Low Power Operation: MAX30102 operate with ultra low power use, ideal for mobile devices. It also ensure long battery life & make it perfect for wearable and portable applications.
• Programmable Parameters: Users can configure sample rates and LED currents for power savings. This programmability allows for customization according to specific power requirements and application needs.
• Motion Artifact Resilience: It boasts robust motion artifact resilience, ensuring accurate readings even during movement. This feature is crucial for maintaining data accuracy in dynamic environments.
• Wide Operating Temperature Range: With an operating temperature range of -40°C to +85°C, it offers versatility in various conditions. This wide temperature tolerance makes it suitable for both indoor and outdoor applications.
