Description

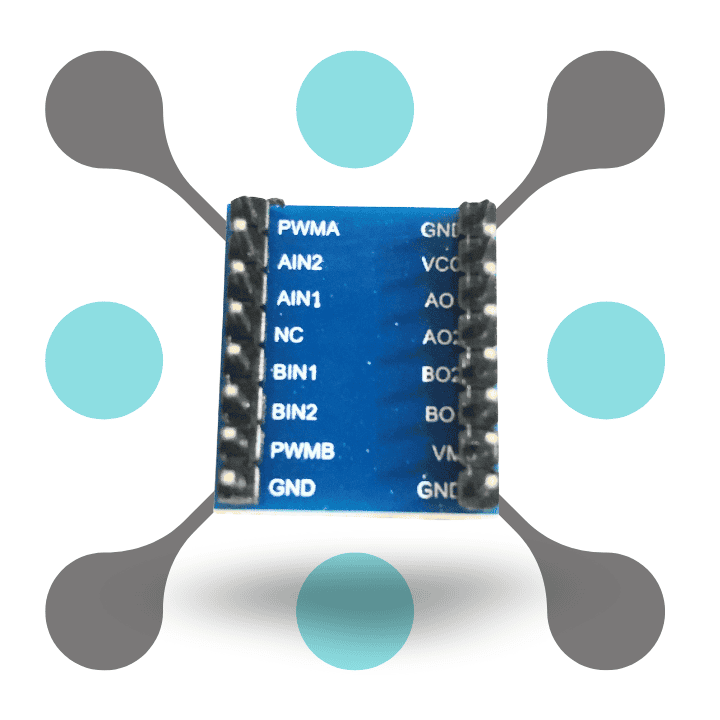

Overview of this TB6612FNG 3pi supporting motor driver
Features
- Dual Motor Control: It is also a capable of independently driving two DC motor or one stepper motor. This allow for versatile motor control configurations in robotic and automation project.
- Wide Operating Voltage Range: Supports input voltage from 2.7V to 5.5V. Which make it perfect for low-voltage applications like battery operated system.
- PWM Control: Provides Pulse Width Modulation (PWM) control of motor speed and direction. This enable precise motor speed adjustment and smooth operation.
- Built-in Thermal Shutdown Circuit: Include a thermal shutdown circuit to prevent overheating and protect the driver module and connected motors.
- Compact and Durable Design: Compact size with robust construction, making it easy to integrate into small-scale projects while ensuring durability in various environments.
Specification
Specification | Details |
---|---|
Model | TB6612FNG Motor Driver Module |
Motor Driver IC | TB6612FNG |
Motor Types Supported | DC motors, Stepper motors |
Operating Voltage | 2.7V to 5.5V |
Peak Current Output | 3A per channel (maximum) |
Continuous Current Output | 1.2A per channel |
PWM Control | Up to 100 kHz |
Logic Voltage | 2.7V to 5.5V |
Built-in Protection | Over-current, Thermal shutdown |
Control Interface | PWM, DIR (Direction) |
Operating Temperature Range | -40°C to 85°C |
Dimensions | Typically around 21mm x 15mm |
PCB Mounting | Through-hole or surface mount |
Additional Features | Low on-resistance (0.5Ω per channel typical at 25°C) |
Applications | Robotics, RC vehicles, CNC machines, 3D printers |
SKU | RW-919 |
