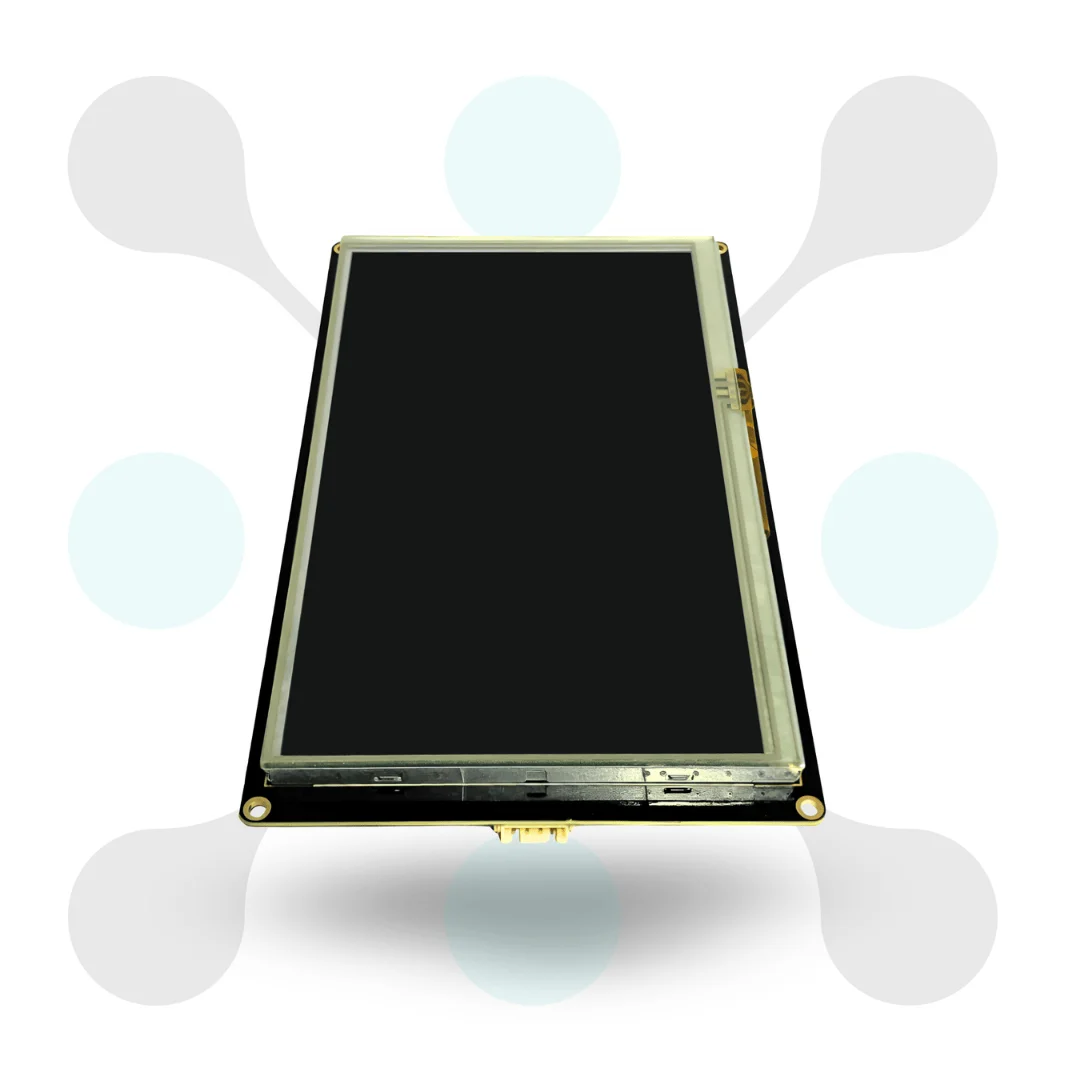

Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display

Availability:

1 in stock


SKU: RW-DIS25

9,499.00 9,599.00 With GST

1 in stock

Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display is more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity, and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4 to 7.0.

Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display is a powerful 18.1 cm (7 inch) HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM.With GPIO supported, now customers can use Nextion to control external devices.

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.

Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display  includes a hardware part (a series of TFT boards) and a software part (theNextion editor).The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.



Features of Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display :

  1. Supports built-in RTC
  2. Supports GPIO
  3. SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
  4. Flash data storage space: 32MB
  5. EEPROM: 1024 bytes
  6. RAM: 8192 bytes
  7. Instruction buffer: 1024 bytes
  8. Color: 65K (65536) colors
  9. Resolution: 800 x 480 pixel



Nextion_Power_Supply_Test_Board_1 nextion 18.1 cm (7 inch) enhanced nx8048k070 hmi touch display - Nextion Power Supply Test Board 1 300x168 - Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display
Nextion_Power_Supply_Test_Board_1

Specifications of Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display :-

BacklightLED
Working Temperature Range (C)-20 to 70
ModelNextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display
Display TypeNX8048K070 (Resistive touchscreen without enclosure)
Operating Voltage (VDC)4.75 ~ 7
Max. Operating Current (mA)510
Net weight (gm)268
Touch TypeResistive
Colors65K (65536)
Recommended Power Supply5V, 2.0A, DC
Working Humidity Range10% to 90% RH
USB InterfaceNo
Micro-SD Card SlotYes (FAT32 format), support maximum 32G Micro SD Card
Flash Memory32 MB
RAM8192 Byte
Backlight Lifetime (Avg)>30,000 Hours
Display Resolution800480





Package Contains :

1 x Nextion 18.1 cm (7 inch) Enhanced NX8048K070 HMI Touch Display

1 power supply test board

1 4-pin grove cable
