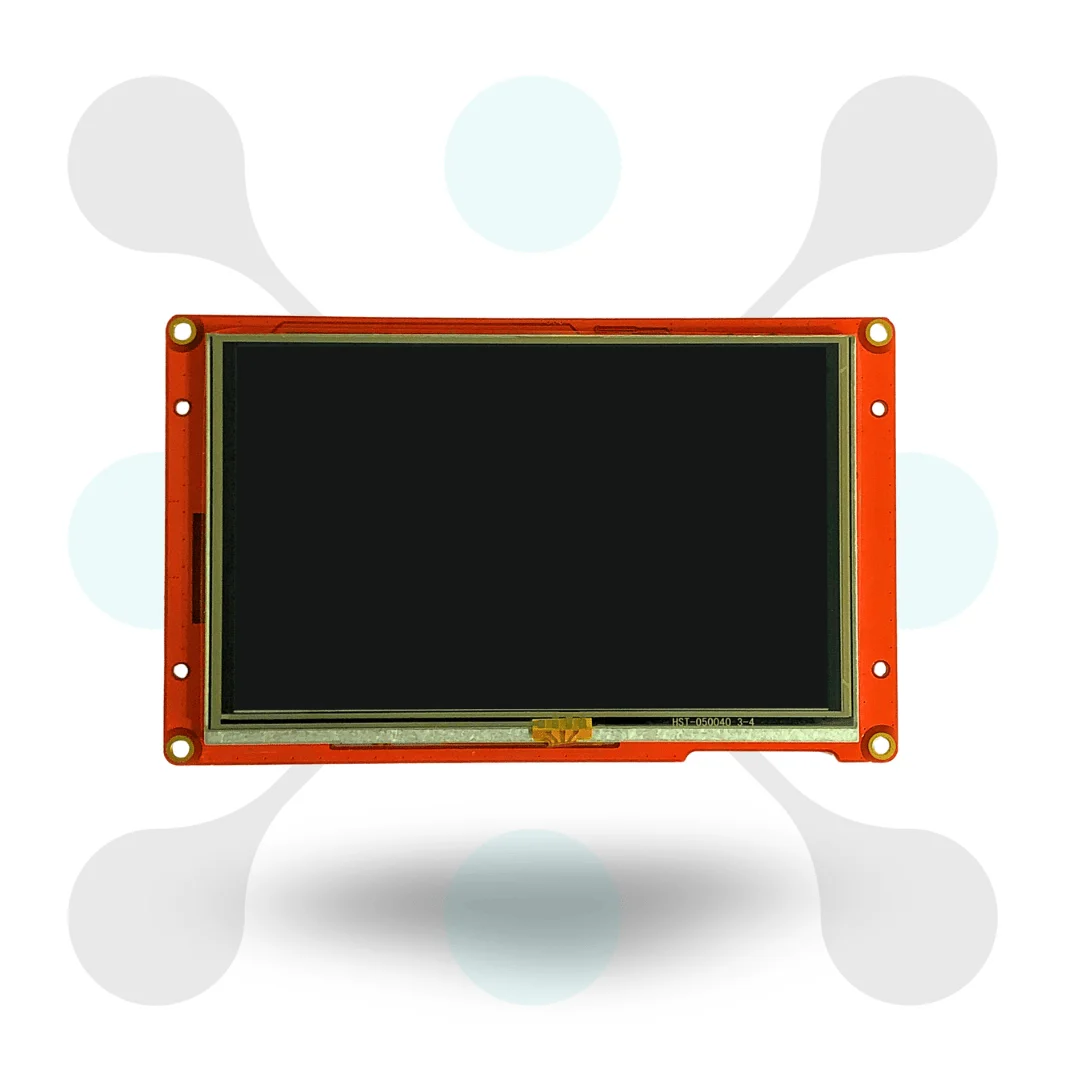

Nextion 5 inch Intelligent NX8048P050-011R HMI Resistive Touch Display  is from the Newly launched Intelligent series and is very easy to use and can be interfaced to the Microcontroller using a simple UART port. The Nextion display can be easily interfaced with any Microcontroller using just 2 wires.

Nextion 5 inch Intelligent NX8048P050-011R HMI Resistive Touch Display  has a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enrich user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effect, component Move and Drag .etc.

The Nextion 5 inch Intelligent NX8048P050-011R HMI Resistive Touch Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you wont believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

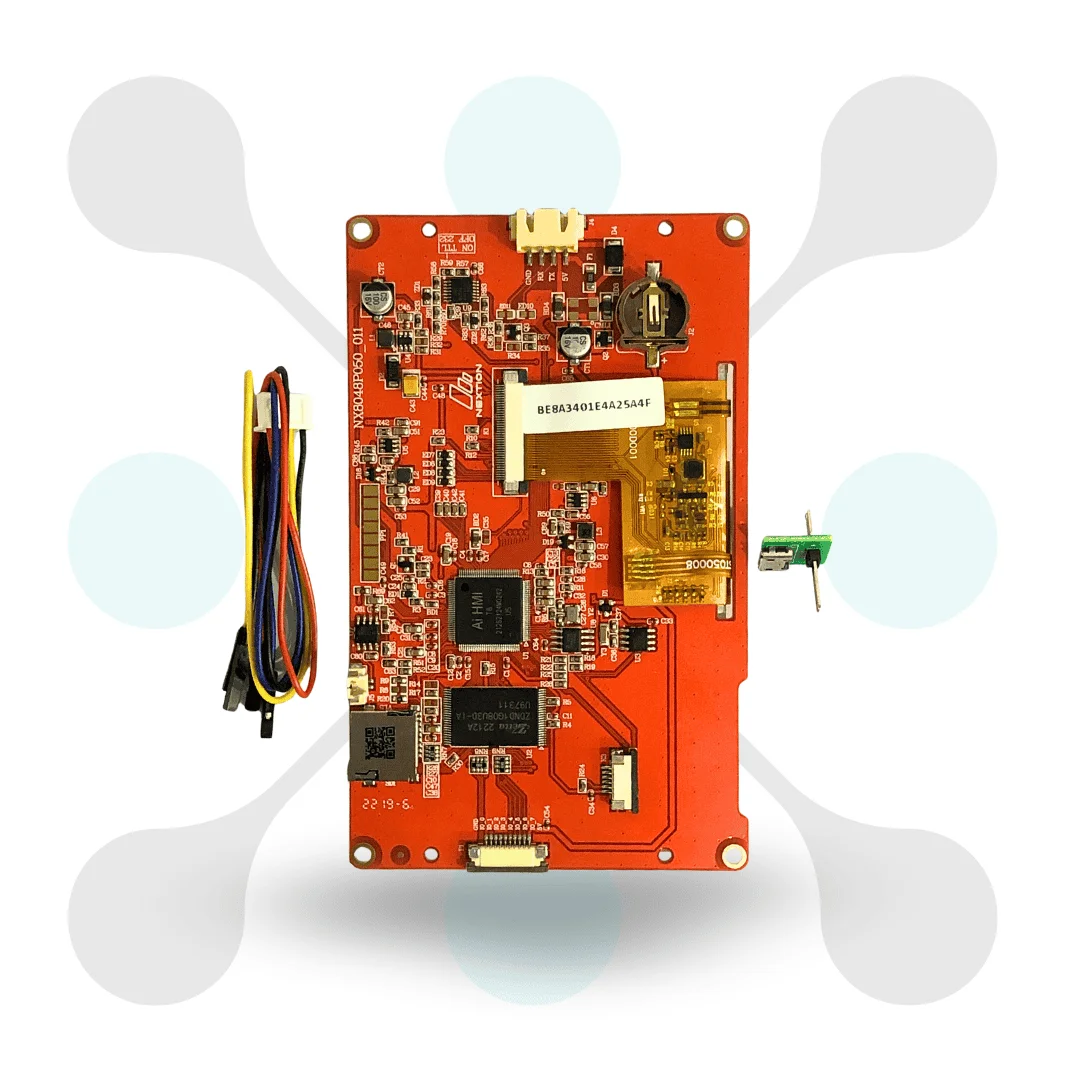

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not.

Features of Nextion 5 inch Intelligent NX8048P050-011R HMI Resistive Touch Display :

1. 5 LCD-TFT HMI display module
2. 840 x 480 screen resolution
3. RGB 65K true-to-life colors
4. Resistive touch panel
5. 300 nit Brightness
6. Onboard 200MHz MCU
7. 512 KB of SRAM
8. 128 MB of Flash memory
9. 1024 Byte EEPROM

Specifications of Nextion 5 inch Intelligent NX8048P050-011R HMI Resistive Touch Display :-

Package Contains :
