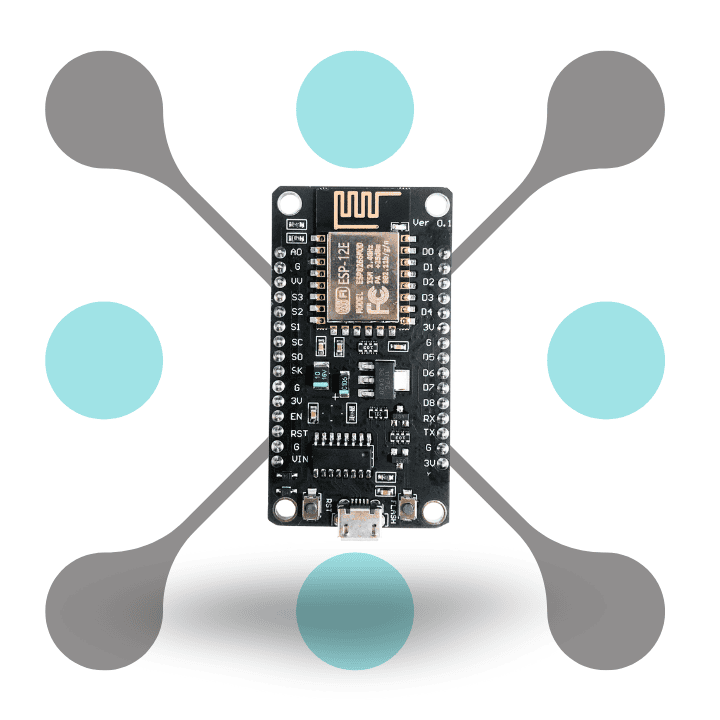

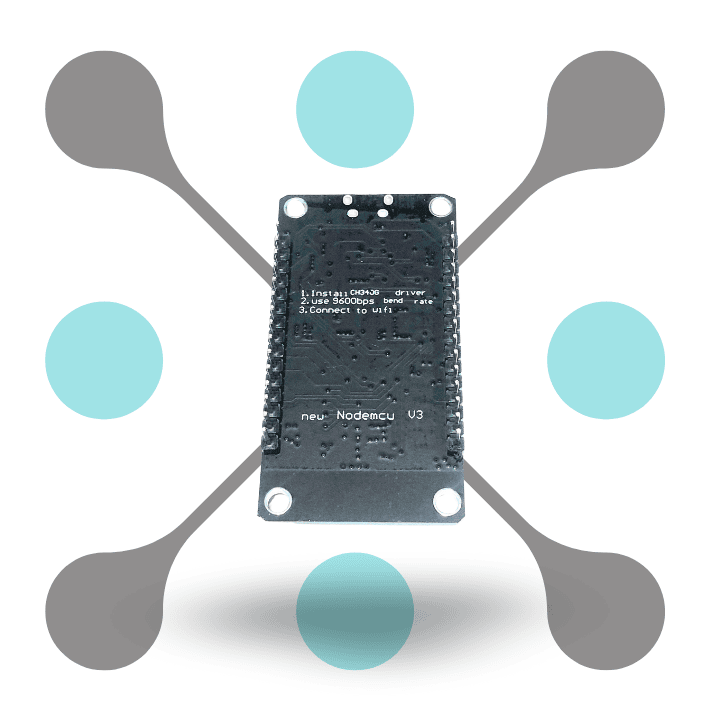

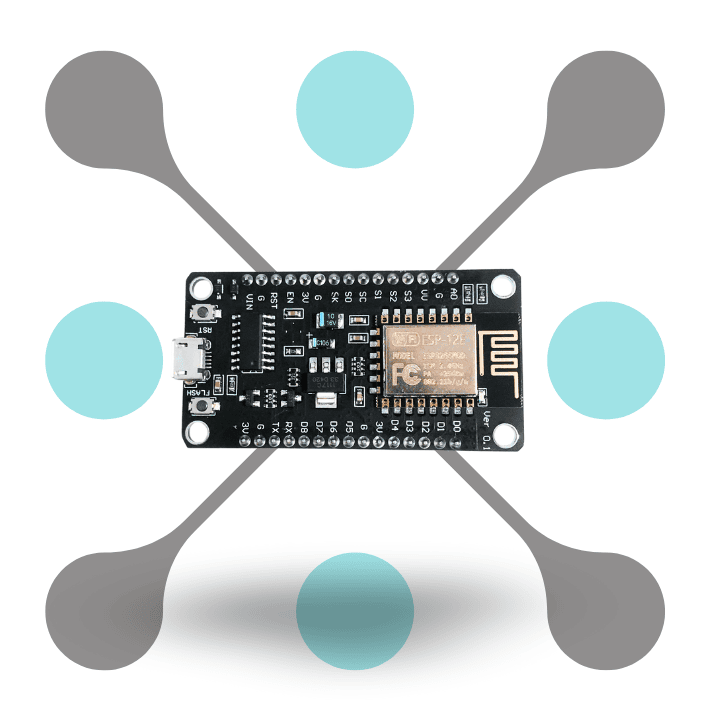

NodeMcu ESP8266 V3 Lua CH340 Wifi Devlopment Board

SKU: RW-033

Original price was: ₹221.00.Current price is: ₹160.00. ( Excluding 18% GST )

Microcontroller ESP8266 (ESP-12E module)
Operating Voltage 3.3V
Input Voltage (USB) 5V (via micro USB port)
Flash Memory 4MB
Digital I/O Pins 11 (D0 to D10)


Out of stock


Add to wishlist

For bulk and B2B enquiries kindly mail us at info@roboway.in

Tags: , , , , , , , , , , , , , , , , , , , , , ,
Description

Description

Overview of this nodemcu esp8266 v3 lua ch340 wifi devlopment board

Introducing Roboway NodeMcu ESP8266 V3 Lua CH340 Wifi Development Board at best price in India with Roboway. This NodeMcu ESP8266 V3 Development Board support Lua scripting & make it easy to create smart applications. It is also Equipped with the CH340 USB-to-serial converter, it offers smooth connectivity and data transfer. Its compact design makes it ideal for seamless integration into a wide range of projects.

Designed for reliability, the NodeMcu CH340 Development Board allows easy Wi-Fi-enabled development. With the NodeMcu ESP8266 CH340 Development Board, you can build smart home systems, robotics, and more. Its simple programming interface is beginner-friendly, yet powerful for advanced users. This board is an essential tool for efficient, wireless project development.

Features

  • Integrated WiFi Capability: Built-in ESP8266 module provides reliable and fast WiFi connectivity. Ideal for IoT projects, it enables seamless wireless communication and internet access.
  • CH340 USB to Serial Converter: Equipped with the CH340 chip for easy USB-to-serial connection. This ensures smooth data transfer and simplifies programming via USB.
  • Lua Scripting Support: Compatible with the Lua programming language for quick, easy coding. Lua support allows for efficient scripting directly on the device.
  • Wide Input Voltage Range: Supports input voltages from 4.5V to 10V, offering versatility. This allows it to be powered by various sources, including USB or battery.
  • Compact and User-Friendly Design: Small, portable, and easy to integrate into breadboards. Perfect for beginners and experts, it streamlines prototyping and development.

Specification

Specification Details
Microcontroller ESP8266 (ESP-12E module)
Operating Voltage 3.3V
Input Voltage (USB) 5V (via micro USB port)
Flash Memory 4MB
Digital I/O Pins 11 (D0 to D10)
Analog Input Pins 1 (A0, with 0-1V input range)
WiFi Standard 802.11 b/g/n
USB to UART Bridge CH340
Operating Frequency 80 MHz (up to 160 MHz)
Programming Language Support Lua scripting, Arduino IDE, MicroPython
Power Consumption Low power consumption with deep sleep support
GPIO Logic Level 3.3V
Built-in LED Connected to GPIO2 (D4)
Reset and Flash Buttons Onboard reset and flash buttons for easy programming and debugging
Dimensions Approximately 58mm x 31mm x 13mm
Applications IoT development, prototyping, WiFi-enabled projects, home automation
SKU RW-033
