Orange Pi 5 4GB LPDDR4 RAM Rockchip RK3588S 8 Core 64-bit Processor

11,999.00 ( Excluding 18% GST )

Processor Rockchip RK3588S 8 Core 64-bit Processor
RAM 4GB LPDDR4
Graphics Arm Mali-G610 MP4 GPU
Storage QSPI Nor FLASH 16MB, MicroSD (TF) Card Slot, M.2 M-KEY Socket
USB Ports USB3.0 × 1, USB2.0 × 2, Type-C (USB3.1) × 1


Out of stock


5 People watching this product now!
Description

Description

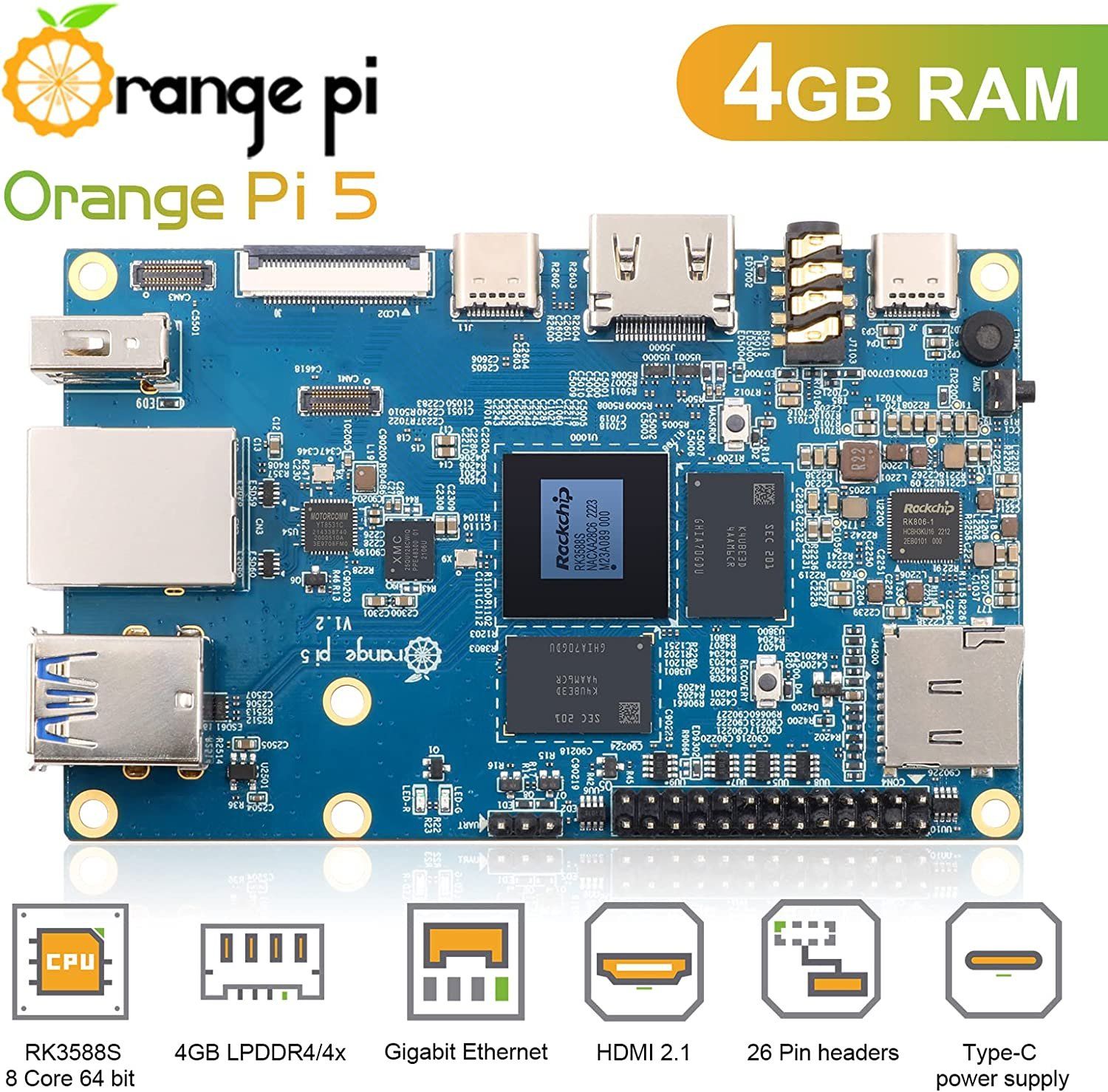

Overview of this Orange Pi 5 4GB LPDDR4 RAM

Introducing the Orange Pi 5 4GB ram with Rockchip RK3588S 8 Core 64-bit Processor. With its cutting edge design feature Big.Little technology & also provide 4 Cortex-A76 cores and 4 Cortex-A55 cores for best performance. It is design with 4GB LPDDR4 RAM. And this Orange Pi 5 also ensure smooth multitasking and smooth operation for various computing task.

Built with an Arm Mali-G610 MP4 GPU, the Orange Pi 5 deliver clear graphic & high performance. And also support up to 8K resolution at 60Hz through HDMI2.1. Its versatile connectivity option also include USB3.0, USB2.0, and Type-C (USB3.1) ports to providing interfaces for peripherals and external storage device. Its built-in NPU offer up to 6 TOPS, this device excels in AI-driven applications.

Designed for versatility and expansion, the Orange Pi 5 feature a range of expansion port for UART, PWM, I2C, SPI, CAN, and GPIO interface. Additionally, its M.2 M-KEY socket also support PCIe NVMe SSDs and custom PCIe Wi-Fi6+BT5.0 modules. And help to enhance storage and network capabilities. It can also use for multiple os including Orangepi OS, Ubuntu, Debian, or Android 12 for various computing need.

Features

  • High-Performance Processor: The Orange Pi 5 4GB integrates the Rockchip RK3588S 8 Core 64-bit Processor. And deliver smooth computing functionpower for demanding task.
  • Robust Graphic: It is built with Arm Mali-G610 MP4 GPU for clear graphics. This mini PC also support up to 8K resolution at 60Hz & ensure immersive visual experiences.
  • Versatile Connectivity Options: With USB3.0, USB2.0, and Type-C (USB3.1) ports, the Orange Pi 5 offer flexible connectivity for various peripherals and devices.
  • Accelerated AI Processing: Featuring a built-in NPU with up to 6 TOPS, this device excels in AI-driven applications, enabling efficient and rapid processing.
  • Expandable Storage and Networking: The M.2 M-KEY socket supports PCIe NVMe SSDs and custom PCIe Wi-Fi6+BT5.0 modules, enhancing storage and networking capabilities.
  • Extensive Expansion Ports: The Orange Pi 5 features an array of expansion ports for UART, PWM, I2C, SPI, CAN, and GPIO interfaces, allowing for versatile connectivity and customization.
  • Wide Operating System Support: It is built to run Orangepi OS, Ubuntu, Debian, or Android 12, operating system. This Orange Pi 5 withgb ram provide compatibility with a range of operating systems for diverse computing need.

Specification of this Orange Pi 5 4GB LPDDR4 RAM

Specification Details
Processor Rockchip RK3588S 8 Core 64-bit Processor
RAM 4GB LPDDR4
Graphics Arm Mali-G610 MP4 GPU
Storage QSPI Nor FLASH 16MB, MicroSD (TF) Card Slot, M.2 M-KEY Socket
USB Ports USB3.0 × 1, USB2.0 × 2, Type-C (USB3.1) × 1
Video Output HDMI2.1 (up to 8K @60Hz), DP1.4, MIPI D-PHY TX 4Lane
Camera MIPI CSI 4Lane, MIPI D-PHY RX 4Lane
Audio CODEC: ES8388, 3.5mm headphone jack, HDMI 2.1 eARC
Ethernet 10/100/1000Mbps Ethernet
Expansion Ports UART, PWM, I2C, SPI, CAN, GPIO
M.2 M-KEY Socket Expansion PCIe NVMe SSD, custom PCIe Wi-Fi6+BT5.0 module
Buttons 1×MaskROM key, 1×Recovery key, 1×On/Off key
Power Source Type-C power supply, 5V @ 4A
Debugging 3 Pin debug serial port (UART)
Supported OS Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android 12
Dimension 62×100 mm
SKU RW-1074

Relevant Orange Pi Module

Model Buy Link

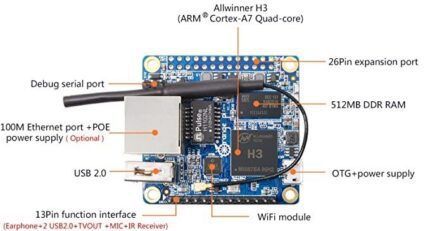

Orange Pi Zero3 Allwinner H618 Mini PC with 1GB DDR4 RAM, WiFi, Bluetooth, and BLE Buy now
