Description

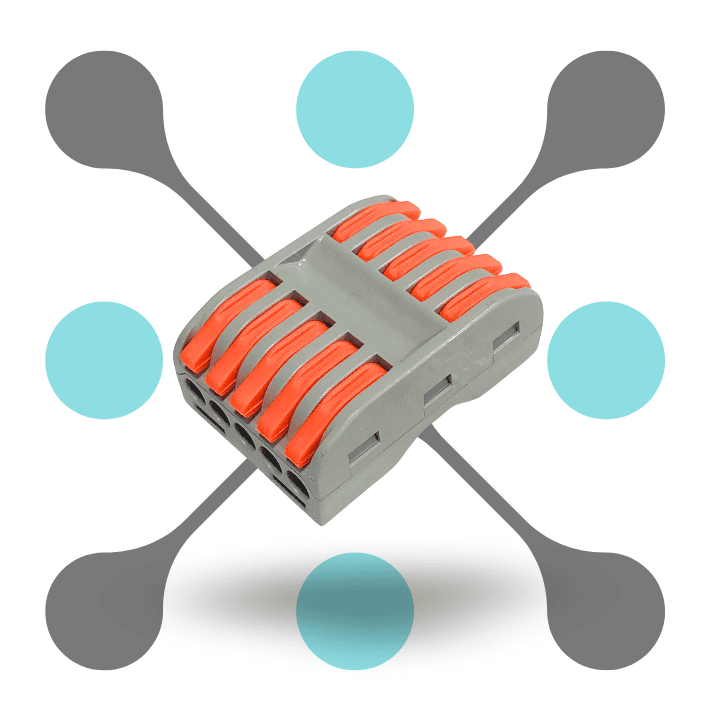

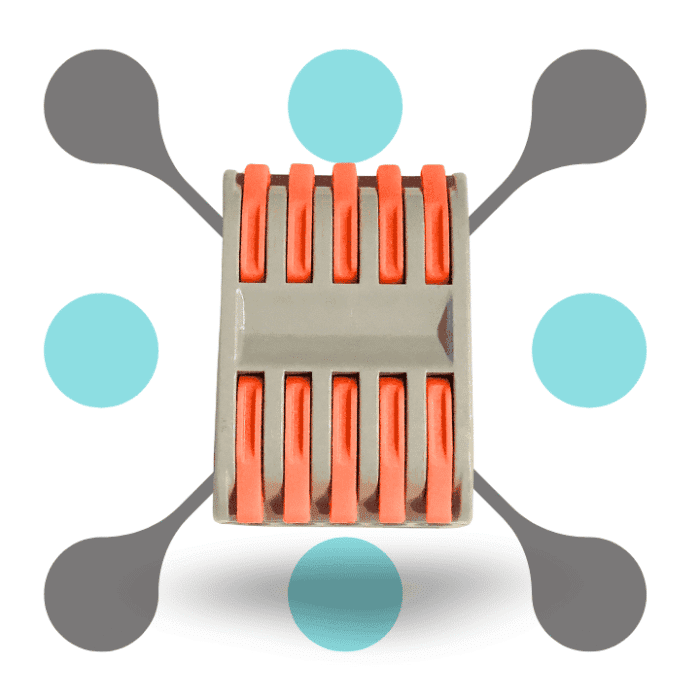

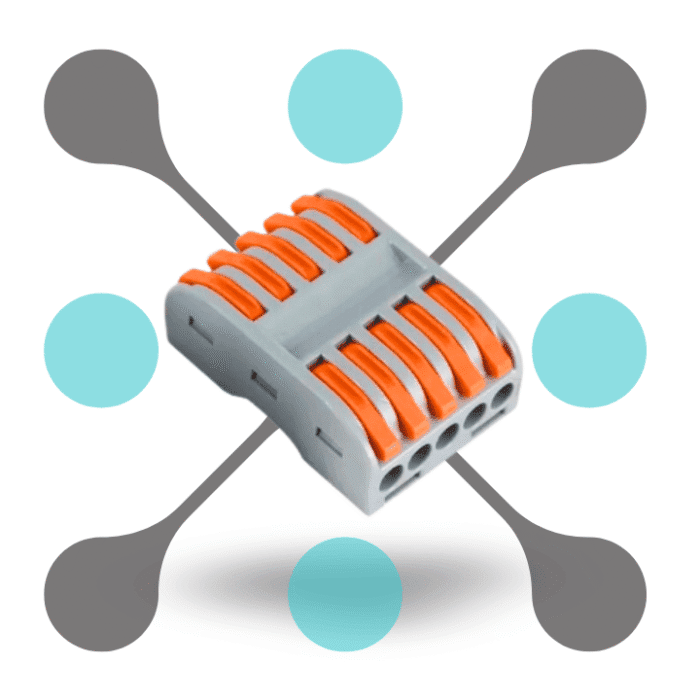

Overview of this 5 terminal guide rail type PCT-225D Quick Wire Connector
Introducing the Roboway PCT-225D Quick Wire Connector Guide Rail Type 5 terminal at best price. A reliable solution for electric wire installations. This innovative connector feature a guide rail design & provide secure mounting and organization. This pct-225d Quick Wire Connector use up to 5 terminals & optimize space and efficiency in wiring setup.
With its lever wire connector mechanism this PCT-225D ensure easy and tool free wire insertion. Ideal for various wire types and sizes, from solid to stranded conductors, it offers versatility in applications. The guide rail type configuration enhances stability and durability, making it suitable for industrial and commercial environments.
Engineered for performance and ease of use, the 5 terminal PCT-225D wire connector meets stringent quality standards. It provides robust electrical connections that withstand vibrations and ensure consistent conductivity.
Features
- Guide Rail Mounting: The PCT-225D terminal block is designed for easy installation on guide rails. This ensures secure and organized placement in electrical panels or cabinets.
- Quick Connection System: It features a rapid push-in connection system for efficient wire termination. This allows for fast assembly and maintenance in industrial and commercial applications.
- Wide Wire Compatibility: Supports wire sizes ranging from 0.08mm² to 4mm², accommodating various electrical needs. This versatility makes it suitable for diverse wiring environments.
- Durable Construction: Built with durable materials, it withstands harsh environments and ensures long-term reliability. This enhances its performance in demanding industrial settings.
- User-Friendly Design: Designed for ease of use with clear markings and ergonomic features. It facilitates quick identification and secure connection of wires, ideal for professional electricians.
Specification
| Specification | Details |
|---|---|
| Model | PCT-225D |
| Type | Guide Rail Type Quick Wire Connector |
| Number of Terminals | 5 terminals |
| Number of Wires per Terminal | 2 wires per terminal (2-in, 2-out per terminal) |
| Wire Gauge | 0.08 mm² to 2.5 mm² (28-14 AWG) |
| Connector Type | Spring Lever Terminal |
| Rated Voltage | 400V |
| Rated Current per Terminal | 32A |
| Operating Temperature Range | -40°C to +105°C |
| Material | Housing: Polyamide (PA66), Contacts: Brass |
| Contact Resistance | ≤ 1 mΩ |
| Insulation Resistance | ≥ 500 MΩ |
| Wire Connection Method | Push-In and Lever Release |
| Dimensions | |
| Color | Transparent Housing with Orange Lever |
| Approvals | CE, RoHS |
| SKU | RW-976 |
