Description

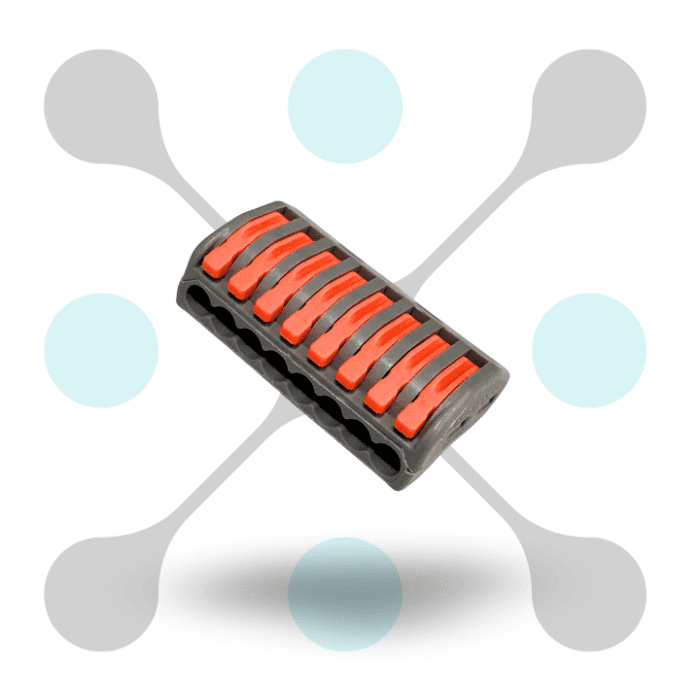

Overview of this PCT-218 8 Pole Quick Wire Connector

Introducing Roboway PCT-218 0.08-2.5mm 8 Pole Quick Wire Connector Terminal Block at best price. This wire connector is design for easy electrical terminations with its spring lock lever mechanism. The PCT-218 8 Pole lever Wire Connector supports wires ranging from 0.08mm to 2.5mm which is use in a wide range of device.

With its 8 pole configuration, this PCT 218 wire connector enables multiple connections in a single unit. Ideal for both solid and stranded wires. It also ensures secure and reliable cable connection. This lever wire connector design allows for quick installation without the need for tools & saving time and effort.

It is specially design for durability and easy use, the PCT-218 cable connector provides a stable electrical interface. It is perfect for various environments & ensure stable performance and safety.

Features

Multi-Purpose Connector: The PCT-218 wire connector terminal block accommodates wire sizes from 0.08mm² to 2.5mm². It is versatile for various electrical and electronic applications.
Spring Lock Lever Mechanism: This PCT-218 8 Pole Quick Wire Connector also features a spring loaded lever for secure wire connections without tool. It also allow for quick and easy installation and maintenance.
Compact and Durable: Its compact size make it perfect for less installations. Built with durable materials, it ensures long-term reliability in electrical connections.
Easy Wire Management: Facilitates organized wire management with its clear markings and layout. This helps in identifying and connecting wires efficiently.
Safe and Reliable: Provides a stable and safe connection, minimizing the risk of electrical faults. Ideal for both professional and DIY electrical projects.

Specification

Specification	Details
Model	PCT-218
Type	Quick Wire Connector Terminal Block
Number of Poles	8 poles (8 positions)
Number of Connections	2 wires per pole (2-in, 2-out per pole)
Wire Gauge	0.08 mm² to 2.5 mm² (28-14 AWG)
Connector Type	Spring Lever Terminal Block
Rated Voltage	400V
Rated Current per Pole	32A
Operating Temperature Range	-40°C to +105°C
Material	Housing: Polyamide (PA66), Contacts: Brass
Contact Resistance	≤ 1 mΩ
Insulation Resistance	≥ 500 MΩ
Wire Connection Method	Push-In and Lever Release
Dimensions	Approx. 25mm x 25mm x 20mm
Color	Transparent Housing with Orange Lever
Approvals	CE, RoHS
SKU	RW-975
