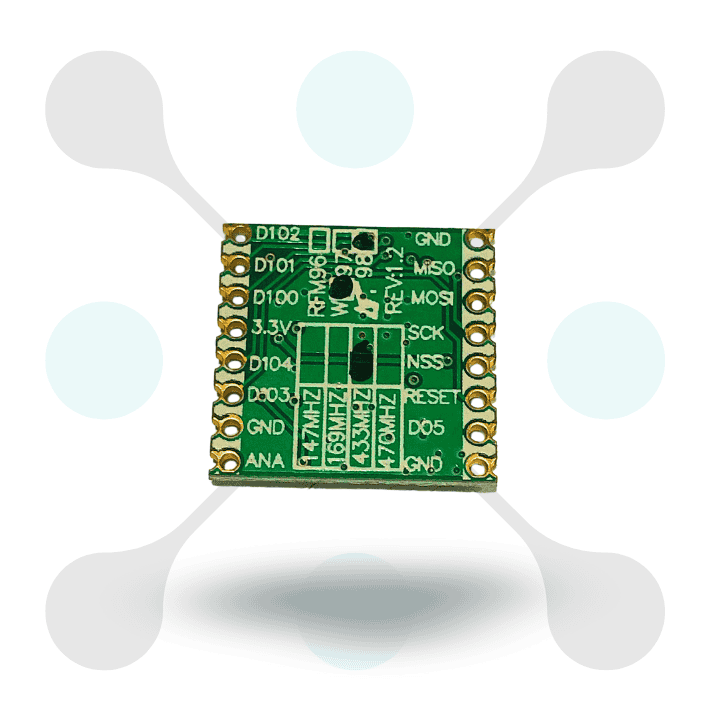

RFM98 Ultra-long Range Transceiver Module/LoRa Module/support 433M frequency

Features

Ultra-long range communication: Capable of transmitting data over distances exceeding 10 kilometers in open areas. Ideal for applications requiring extensive coverage and reliable connectivity.

433MHz frequency band compatibility: Operates within the 433MHz frequency band, widely used for IoT and industrial applications. Complies with regulatory standards for seamless deployment.

LoRa modulation technology for efficient data transfer: Utilizes LoRa modulation technology, offering low power consumption and robust performance. Ensures reliable communication even in noisy RF environments.

High sensitivity (-148dBm) receiver: Features a highly sensitive receiver with -148dBm sensitivity for excellent reception quality. Enables connectivity in challenging urban and remote environments.

SPI interface for easy integration: Interfaces easily with microcontrollers and sensors via SPI interface. Simplifies integration into various electronic projects and IoT devices.

Specification

Frequency: 433 MHz (other options available)

Modulation: LoRa (Long Range)

Sensitivity: Up to -148 dBm

Transmit Power: Up to +20 dBm

RF Output Impedance: 50 Ohms

Data Rate: Programmable up to 300 kbps

Interface: SPI (Serial Peripheral Interface)

Power Supply: 1.8V to 3.7V

Current Consumption: 10.3 mA (RX), 120 mA (TX @ +20dBm)

Operating Temperature: -40°C to +85°C

SKU: RW-1032
