Description

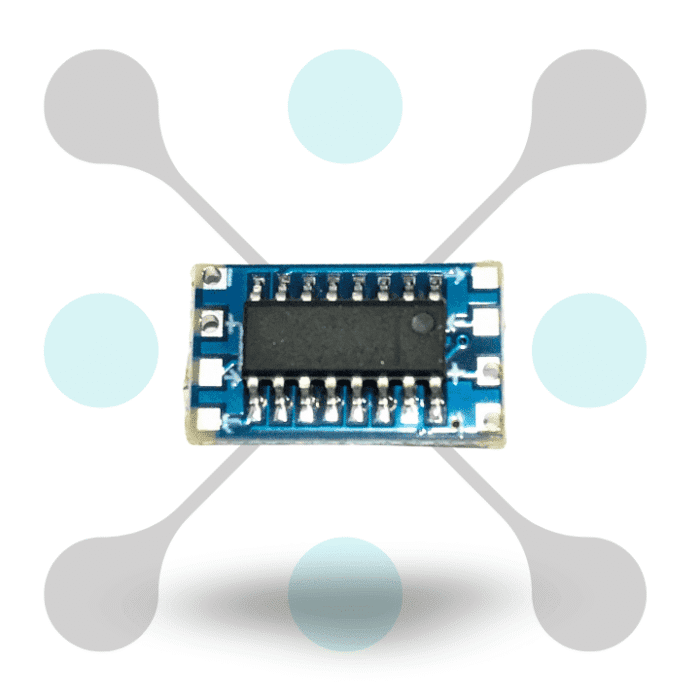

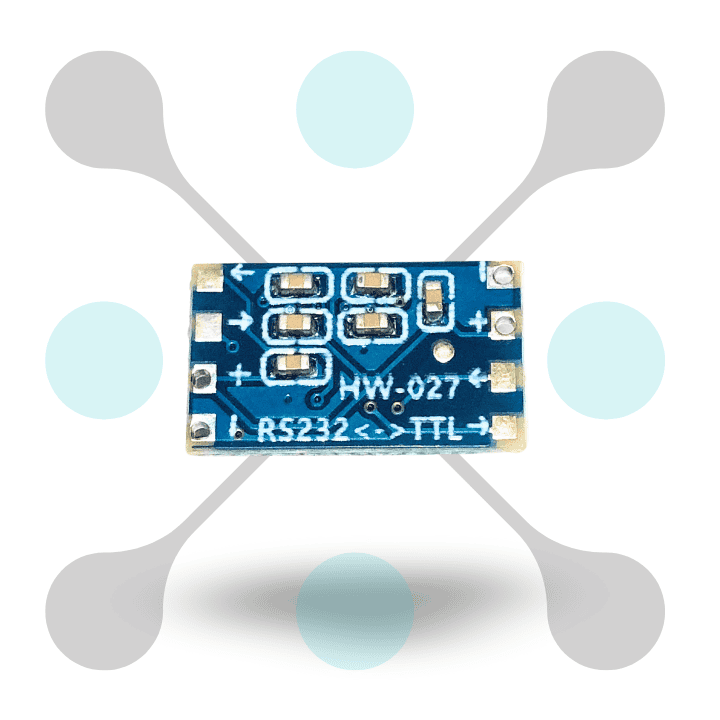

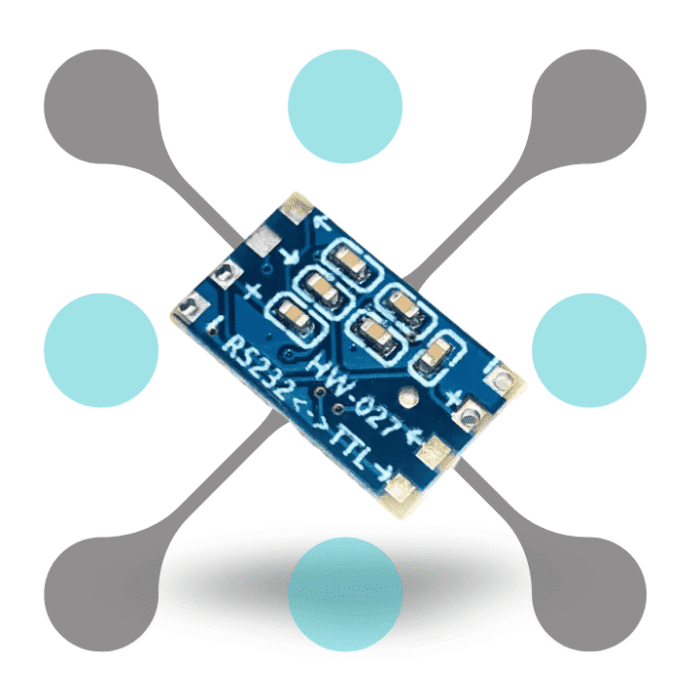

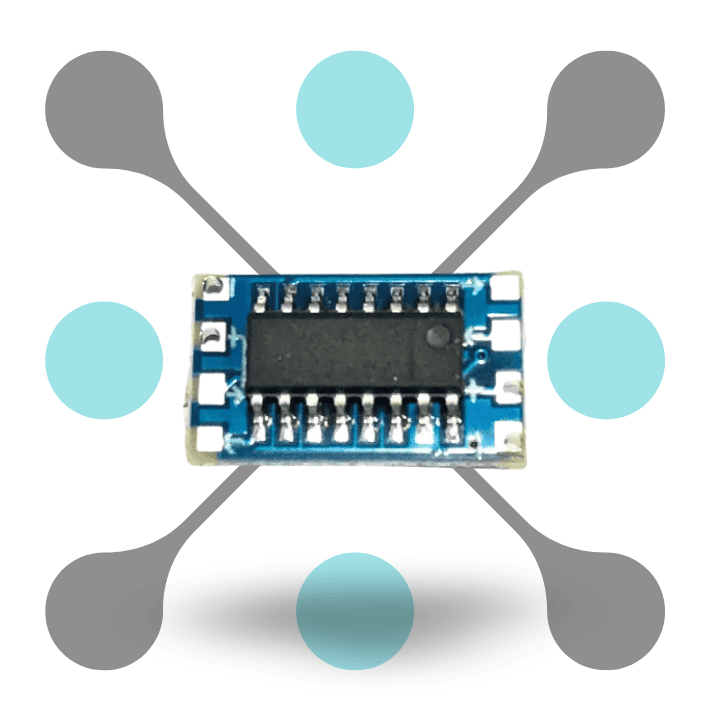

Overview of this Serial Port Mini S232 to TTL Converter Adaptor Board MAX3232
Introducing Roboway Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232 to convert serial port signal from RS232 to TTL level. This compact and easy to use board is designed to provide smooth communication between device with RS232 interface and microcontrollers with TTL interface. It is also use an important tool for various applications such as data communication, embedded systems, and debugging.
The RS232 to TTL Converter Board features the MAX3232 chip, which provides correct and stable signal conversion. It supports multiple baud rates and data format. And also ensure compatibility with a wide range of devices. The board compact size allow for easy use into project with less space. While its robust built it also ensure durability & smooth performance.
The MAX3232 Serial Port RS232 to TTL Converter Board offer simple and clear connection for serial and TTL interface. Its low power use make it perfect for battery power project and smooth operation. Whether you a hobbyist or a professional, the MAX3232 RS232 to TTL Converter Board Serial Port is a versatile and dependable choice to interface RS232 devices with TTL system.
Features
- RS232 to TTL conversion: The MAX3232 converter module translate RS232 serial signal to TTL logic level. This S232 to TTL Converter Adaptor Board also enable smoot communication between device using different serial protocol.
- Bidirectional communication: The module supports two way communication & allow data transmission in both direction. This is essential to interface between micro controller and device with RS232 interface.
- Wide voltage compatibility: It work with a voltage range of 3V to 5V & make it compatible with various device. This flexibility allow for easy use with different system and platform.
- High data rate support: The module supports high data rates, ensuring fast and efficient data transmission. This capability is beneficial for applications requiring quick data exchange.
- Protection features: The board includes in built safety such as ESD (electrostatic discharge) protection. And help to prevent damage to the module and connected device during use.
Specification
| Specification | Details |
|---|---|
| IC Used | MAX3232 |
| Input Voltage | 3V to 5V DC |
| Output Signal | TTL |
| Input Signal | RS232 |
| Baud Rate | Up to 120 kbps |
| Operating Temperature | -40°C to +85°C |
| Compatibility | Compatible with most microcontrollers |
| Board Size | 16.22 x 10.3 x 3.5 mm |
| Power Consumption | Low power consumption |
| Transient Protection | Integrated for increased reliability |
| Communication Interface | Standard RS232 |
| SKU | RW-216 |
