Description

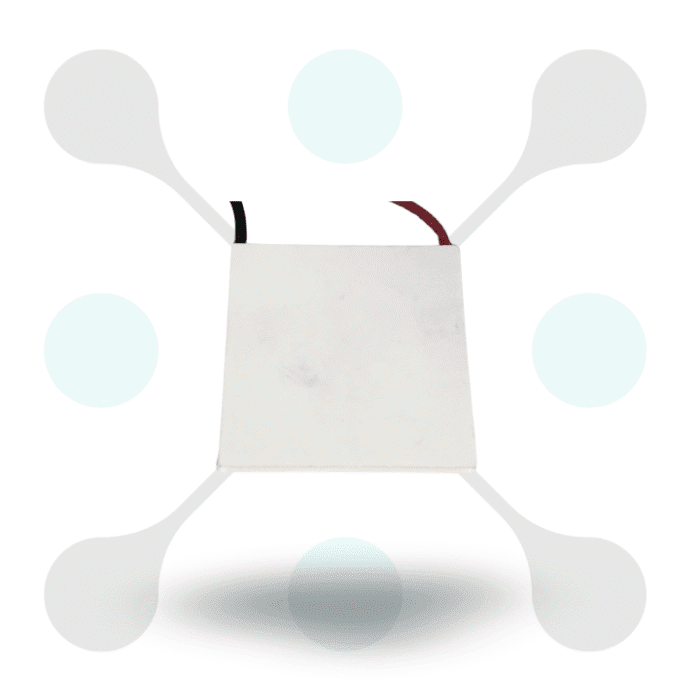

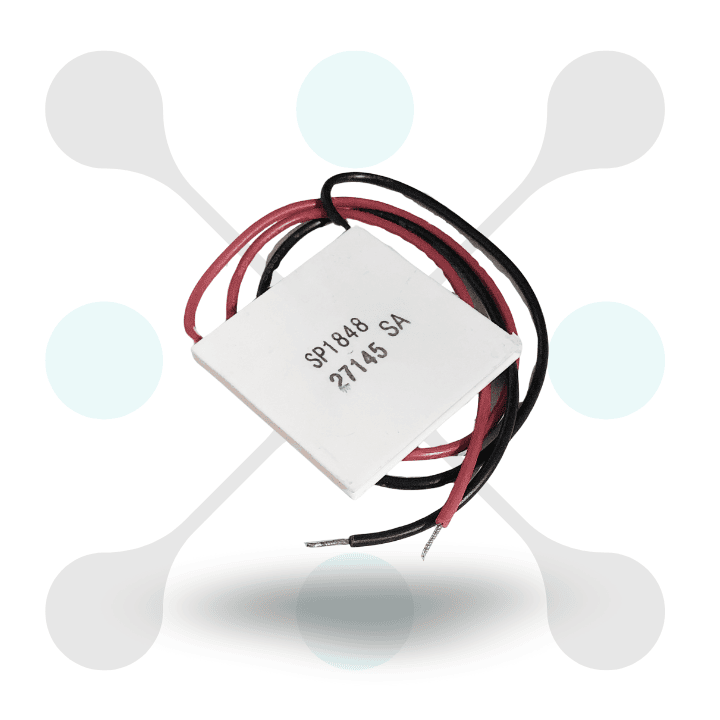

Overview of this sp1848-27145 Thermocooler Peltier Module
Introducing roboway SP1848-27145 thermocooler peltier module thermoelectric power generator at best price. A small and lightweight solution design for power generation. It is sealed for moisture protection and optimized for Seebeck power generation. This module operates at temperatures up to 120°C & provide different voltage and current output based on temperature different.
It also use the Peltier effect, this thermoelectric power generator detects temperature difference to generate electricity. By applying heat on one side and cold on the other it generate voltage proportional to the applied heat & offer moderate voltage with mA of current. With quality tested cooling cell and simple installation. it’s perfect for various device including charging cell phones with a 5V booster board.
It also ensure efficient operation by not exceeding the maximum operating temperature and applying grease compound on both side for best performance. With a life expectancy of 200,000 hours and a low failure rate of 0.2%. This SP1848-27145 module offer reliable power generation for various electronic project and ddevice.
Features
- Small and Lightweight: This sp1848-27145 Thermocooler Peltier Module also showcase a compact design for easy handling and portability perfect for various use. And enable easy use in diverse setting without adding bulk or weight.
- Specifically Designed for Power Generation: it is specially optimized for efficient electric power generation. It use the Peltier effect to convert heat difference into electric energy.
- Sealed for Moisture Protection: It also provide moisture protection for safety of internal component and ensure long term reliability. It contains thermal element formulated for optimal Seebeck power generation.
- High Temperature Operation: It is also capable to operate at temperatures up to 120°C for best performance in diverse environment. Features NM static protection for enhanced durability and safety.
- Quality Tested Cooling Cells: Ensures quality and reliability through rigorous testing of cooling cells. Provides assurance of performance and longevity in demanding conditions.
- Simple Installation and Operation: Easy-to-install design simplifies setup and operation for user convenience. Offers straightforward integration into various systems and applications.
- Versatile Charging Capability: Compatible with a 5V booster board, allowing for charging of cell phones. Offers flexibility in power generation applications, including mobile device charging.
Specification
| Specification | Description |
|---|---|
| Model | SP1848-27145 |
| Type | Thermoelectric Power Generator |
| Peltier Module Size | 40mm x 40mm x 3.8mm |
| Operating Voltage | 0.5V – 4.5V |
| Maximum Output Power | Approximately 15mW at 1.5V |
| Temperature Difference | Up to 67°C |
| Internal Resistance | <1.0Ω |
| Maximum Operating Temperature | 60°C |
| Output Voltage (V) | 0.97 (20°C), 1.8 (40°C), 2.4 (60°C), 3.6 (80°C), 4.8 (100°C) |
| Output Current (mA) | 225 (20°C), 368 (40°C), 469 (60°C), 558 (80°C), 669 (100°C) |
| Efficiency | High efficiency with minimal heat loss |
| Life Expectancy | 200,000 hours |
| SKU | RW-640 |
