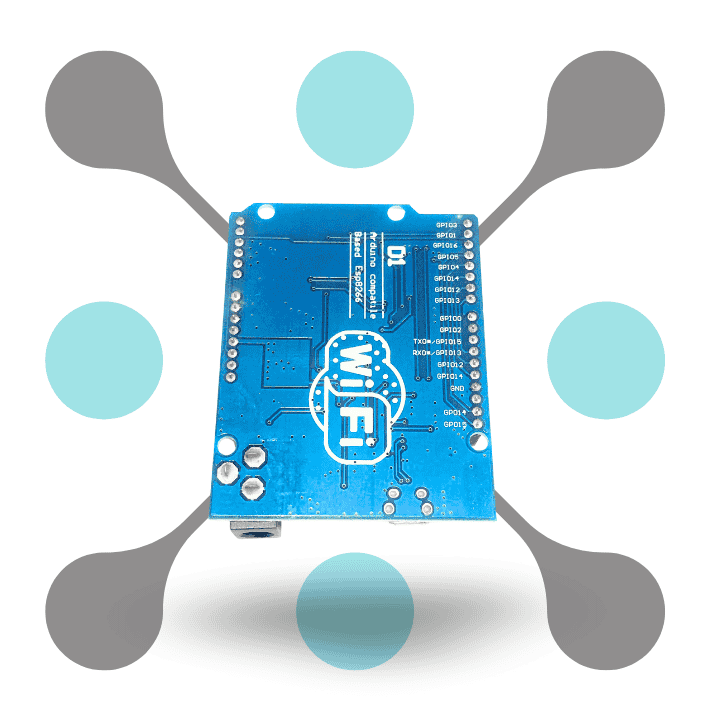

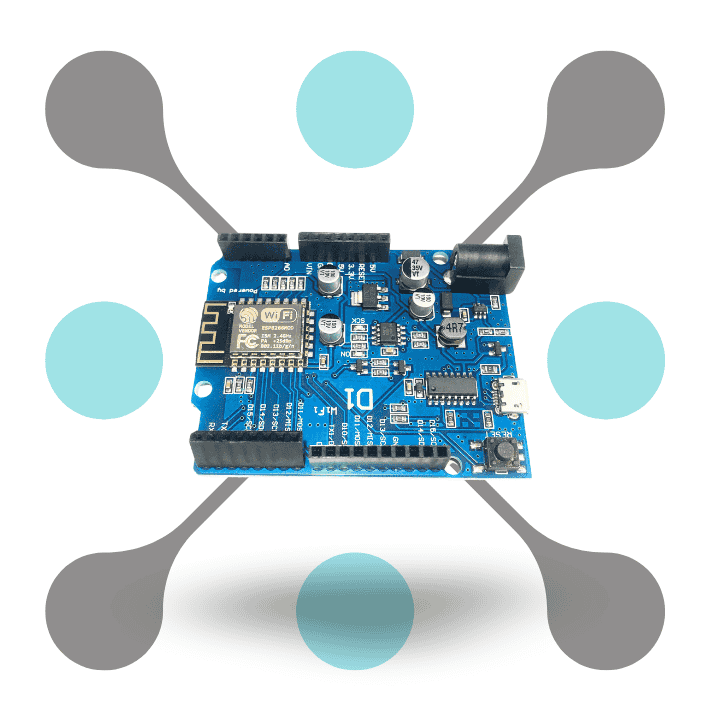

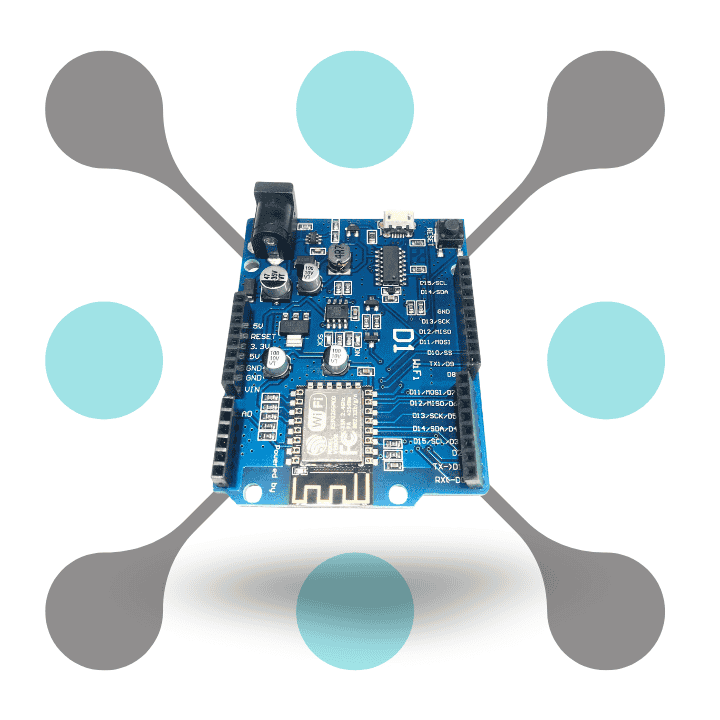

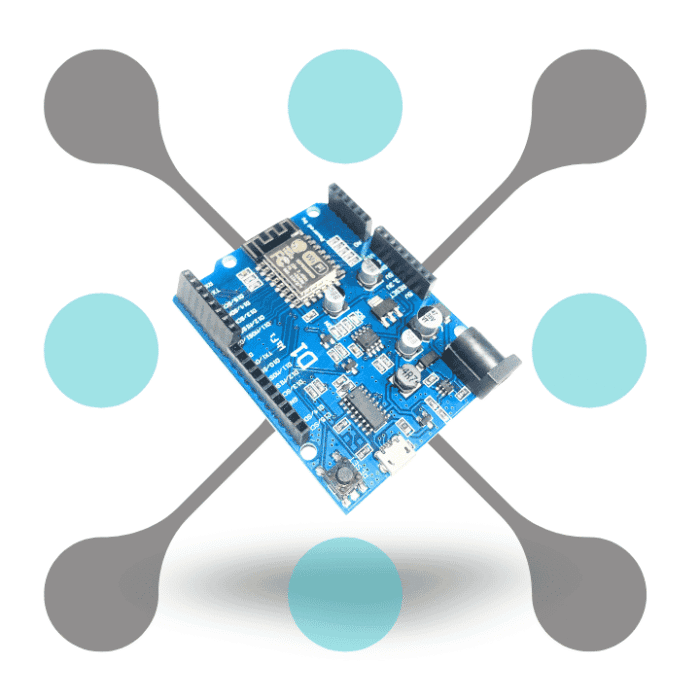

Overview of this UNO Based ESP8266 Nodemcu Development Board
The UNO Based ESP8266 NodeMCU Development Board combines the power of Arduino with Wi-Fi capabilities. This versatile board offers an easy interface for building IoT projects and wireless applications. With the Uno Development Board With ESP8266, you can easily control devices over the internet. It provides seamless integration for creating smart solutions with reliable Wi-Fi connectivity.
The UNO NodeMCU Development Board is perfect for makers and developers working with Wi-Fi technology. As an ESP8266 development board, it allows for fast prototyping of wireless applications. Its compatibility with Arduino IDE ensures a smooth development process for various IoT projects. This board simplifies the process of building advanced, networked devices with minimal effort.
Features
- ESP8266 WiFi Module: Built-in ESP8266 chip provides fast and reliable WiFi connectivity. It enables seamless integration into IoT and wireless projects.
- Arduino UNO Compatibility: Compatible with the Arduino IDE, making programming easy for beginners. Users can leverage the large Arduino community and resources for development.
- Multiple GPIO Pins: Equipped with several GPIO pins for interfacing with sensors and actuators. These versatile pins provide flexibility in connecting external devices.
- USB Power and Programming: Features a USB interface for both power and programming. This simplifies the process of uploading code and powering the device simultaneously.
- Compact and Lightweight Design: The compact form factor makes it ideal for small projects and prototypes. Its small size doesn’t compromise its performance or functionality.
Specification
| Specification | Details |
|---|---|
| Microcontroller | ESP8266 (ESP-12E/ESP-12F) |
| Operating Voltage | 3.3V |
| Input Voltage | 5V (via micro USB port) or 5V pin |
| Flash Memory | 4MB |
| WiFi Standard | 802.11 b/g/n |
| Digital I/O Pins | 11 (D0 to D10) |
| Analog Input Pins | 1 (A0, with 0-1V input range) |
| USB to UART Bridge | CH340 |
| Operating Frequency | 80 MHz (up to 160 MHz) |
| Programming Language Support | Arduino IDE, MicroPython, Lua |
| Power Consumption | Low power consumption, supports deep sleep mode |
| GPIO Logic Level | 3.3V |
| Built-in LED | Connected to GPIO2 (D4) |
| Reset and Flash Buttons | Onboard reset and flash buttons for easy programming and debugging |
| Dimensions | 60mm x 30mm |
| SKU | RW-038 |
